HPR1932E
Catcast
HPR1932E Frequency Agile HDMI to 1080P HD Analog RF Encoder Modulator
INTRODUCTION
The HPR1932E is a frequency agile commercial RF modulator with SAW filter and microprocessor. Unlike traditional analog modulator, it has dual HDMI inputs to take in the 1080P HD signal and outputs an analog signal without noise and or stripes. Any standard HDMI source can be used, including satellite receivers, Blu-ray and camera.
FEATURES
1. Two adjacent channels output per module with SAW filters
2. Phase-locked-loop design guarantees precise frequency locking
3. Double conversion provides superior spurious output suppression

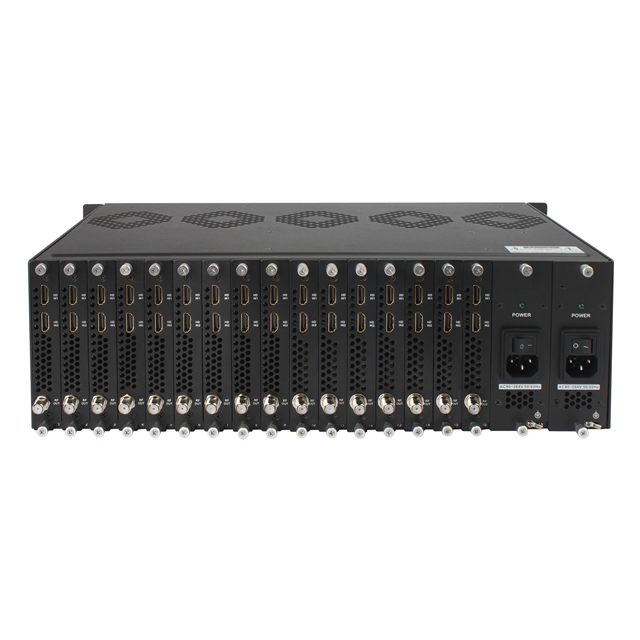

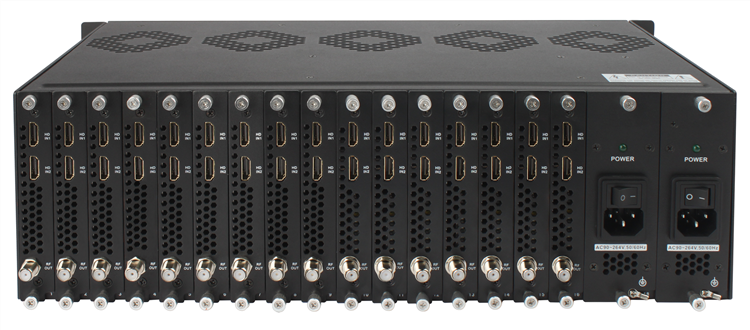

4. Single-slot design allows up to 16 units in CATCAST’s HPD-M3 chassis
5. Set up and upgrade by NMS
SPECIFICATION
| INPUT | |||||
Input Connector | HDMI 1.4 *2 | ||||
Input Resolution | 1920*1080_60P; 1920*1080_50P; 1920*1080_60i; | ||||
1920*1080_50i; 1280*720_60P; 1280*720_50P | |||||
Audio | Sample Rate | 32K/ 44.1K/ 48KHz | |||
Bitrate | 384kbps | ||||
| MODULATION | |||||
Output Connector | 75Ω F-Female *1 | ||||
Output Frequency | 50~870 MHz Agile | ||||
Frequency Stability | ±5KHz | ||||
Output Level | ≥100dBuV | ||||
Spurious Output | ≥60dB | ||||
Carrier to Noise | 60dB | ||||
Flatness | ±1dB | ||||
| SYSTEM | |||||
Management | NMS | Video Format | Support | ||
Language | English | Upgrade | NMS | ||
| GENERAL | |||||
Power Supply | DC12V 1.5A | Power Consumption | <W | ||
Weight | KG | Dimension | 132.5*201.7*21.05(mm) | ||
