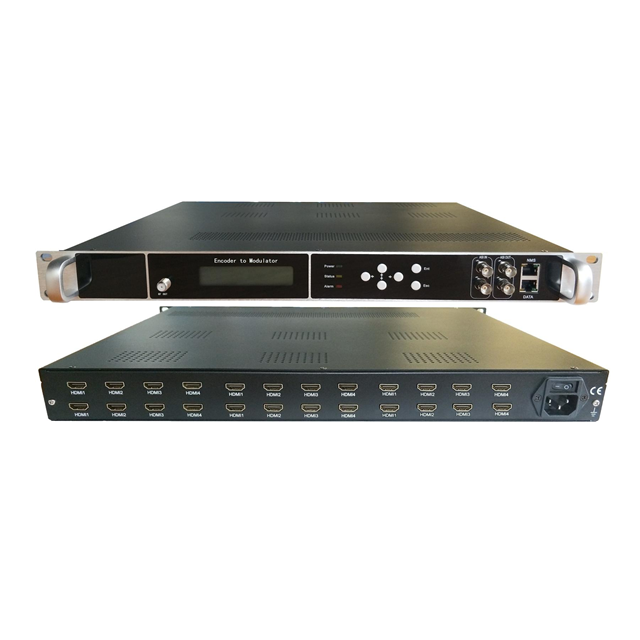

HPS856IV 24 in1 HDMI H.265 H.264 to RF Encoder Modulator
HPS856IV Encoder Modulator is Catcast’s professional high integration device which includes encoding, multiplexing, and modulation. It supports 4/8/12/16/20/24 HDMI input, HEVC/H.265 & MPEG-4 AVC/H.264 encoding, 2 ASI input/output, 1000 trillion IP input/output, 4/8 carriers RF output (DVB-C 、DVB-T、ATSC 、ISDB-T optional), support IP output (4/8/12/20/24 SPTS and 1 MPTS output). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, IPTV live streaming multicast, digital TV broadcasting etc.
Support QR code, LOGO, OSD insertion for every local channel
4/8/12/16/20/24 HDMI input, support HDCP
Support HEVC/H.265, MPEG-4 AVC/H.264 video encoding
Support MPEG-1 Layer2, LC-AAC, HE-AAC v1&v2, AC3 audio encoding
1000 trillion IP input over UDP and RTP protocol, and IP output over UDP and RTP protocol(MPTS and SPTS, Multicast and Unicast)RF output (DVB-C、DVB-T、ATSC、ISDB-T optional)
4/8/12/16 HDMI input, 4 carrier RF output
20/24 HDMI input, 8 carrier RF output
2 ASI input
2 ASI Independent output (optional) as copy of 1 MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD、key function
Control via web management, and easy updates via web
Technical Specification
Input | 4/8/12/16/20/24 HDMI optional |
2 ASI input | |
Output | 4/8 carriers RF output（DVB-C/DVB-T/ATSC/ISDBT/DMBT） |
2 ASI output (optional) | |
IP output（4/8/12/16/20/24 SPTS and 1MPTS） UDP and RTP protocol |
Support unicast and multicast | ||||
Video | Encoding | HEVC/H.265, MPEG-4 AVC/H.264 | ||
Resolution | Input:1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | |||
Output:1920×1080_60P, 1920×1080_50P, 1280×720_60P, 1280×720_50P, 720×576_50P,720×480_60P, 1920×1080_30P,1920×1080_25P, 1280×720_30P,1280×720_25P, 720x576_25P,720x480_30P | ||||
Bit-rate | 1Mbps~15Mbps（each channel) | |||
Rate Control | CBR | |||
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC v1&v2, AC3 | ||
Sampling rate | 48Khz | |||
Bit-rate | 64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,3 84kbps | |||
Resolution | 24-bit | |||
Audio Gain | 0-255 Adjustable | |||
Multiplexing | Maximum PID Remapping | 180 output PIDs per channel | ||
Function | PID remapping ( automatically or manually) | |||
Accurate PCR adjusting | ||||
Modulator | DVB-T | RF number | 4/8 carrier DVB-T RF output | |
Standard | EN300744 | |||
FFT mode | 2K | |||
bandwidth | 6M, 7M, 8M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | |||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42 dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~ -10 dBm, 0.1db step | |||
DVB-C | RF number | 4/8 carrier DVB-C RF output | ||
Standard | EN300 429/ITU-T J.83A/B/C | |||
MER | ≥42db | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0.1dBm step | |||
Symbol Rate | 5.0Msps~7.0Msps,1ksps stepd | |||
J.83A | J.83B/J.83C | |||
Constellation | 16/32/64/128/256 | 64/256 QAM | ||
QAM | ||||
Bandwidth | 8M | 6M | ||
ATSC | RF number | 4/8 carrier ATSC RF output | ||
Standard | ATSC A/53 | |||
Bandwidth | 6M | |||
Constellation | 8VSB | |||
FEC | RS(208 188)+Trellis | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0.1dBm step | |||
ISDB-T | RF number | 4/8 carrier ISDB-T RF output | ||
Standard | ARIB STD-B31 | |||
Bandwidth | 6M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||
Transmission Mode | 2K | |||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0.1dBm step | |||
System function | Network management(WEB) | |||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension (W×L×H) | 550mm×515mm×140mm | ||
weight | 6kg | |||
Environment | 0~45℃(work)；-20~80℃(storage) | |||
Power requirements | AC100~240V，50/60Hz | |||
