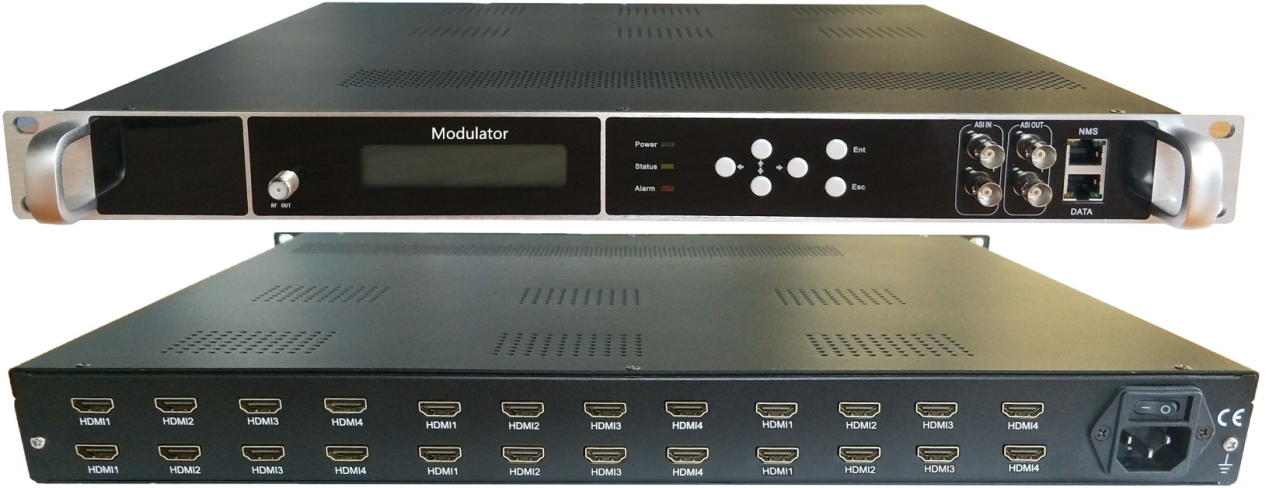

HPS846IV
Catcast
HP846IV 4/8/12/16/20/24 Channels Encoder Modulator
Product Overview
HPS846IV encoder modulator is Catcast’s professional high integration device which includes encoding, multiplexing, and modulation. It supports 4/8/12/16/20/24 HDMI input, MPEG-4 AVC/H.264 encoding, 2 ASI input and 128 IP input, DVB-C/DVB-T/ISDB-T/ATSC/DTMB RF output with 4/8/12/16/24/32 carriers, IP output, and 2 ASI output at the same time.
In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, IPTV live streaming multicast, digital TV broadcasting etc.
Key Features
Support QR code, LOGO, OSD insertion for every local channel
4/8/12/16/20/24 HDMI input, support HDCP
4/8/12/16/24 carriers RF DVB-T/ISDB-T/ATSC/DTMB output (optional)
4/8/16/32 carriers RF DVB-C output (optional)
Support MPEG-4 AVC/H.264 video encoding
Support MPEG-1 Layer2, LC-AAC, HE-AAC v1&v2 audio encoding
1000M IP input over UDP protocol, for remux
2 ASI input for remux
IP output over UDP/RTP/RTSP protocol, SPTS/MPTS,unicast/multicast
2 ASI independent output as copy of 4 MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting, PID pass
LCD、key function, Web-NMS managment
Technical Specification
Input | 8/12/16/20/24 HDMI, optional, support HDCP | |||
128 IP (SPTS/MPTS) input, UDP, 1000M, ethernet port | ||||
2 ASI input | ||||
Output | 4/8/12/16/24 carriers RF (DVB-T/ISDB-T/ATSC/DTMB),optional 4/8/16/32 carriers RF (DVB-C),optional | |||
2 ASI output | ||||
IP output（128 SPTS and 8 MPTS） UDP/RTP/RTSP protocol Support unicast and multicast 1000M, ethernet port | ||||
Video | Encoding | MPEG-4 AVC/H.264 | ||
Resolution | Input:1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | |||
Output:1920×1080_60P, 1920×1080_50P, 1280×720_60P, 1280×720_50P, | ||||
720×576_50P,720×480_60P, 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720x576_25P,720x480_30P | ||||
Bit-rate | 1Mbps~13Mbps（each channel) | |||
Rate Control | CBR | |||
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC v1&v2 | ||
Sampling rate | 44. 1KHz and 48Khz | |||
Bit-rate | 64kbps, 128Kbps, 192kbps,224kbps,256kbps,320kbps,3 84kbps | |||
Resolution | 24-bit | |||
Audio Gain | 0-255 Adjustable | |||
Multiplexing | Maximum PID Remapping | 180 output PIDs per channel | ||
Function | PID remapping ( automatically or manually) | |||
Accurate PCR adjusting | ||||
Modulator | DVB-T | RF number | 4/8/12/16/24 carriers (optional) DVB-T output | |
Standard | EN300744 | |||
FFT mode | 2K | |||
bandwidth | 6M, 7M, 8M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | |||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42 dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~ -10 dBm, 0. 1db step | |||
DVB-C | RF number | 4/8/16/32 carriers (optional) DVB-C output | ||
Standard | EN300 429/ITU-T J.83A/B/C | |||
MER | ≥42db | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0. 1dBm step | |||
Symbol Rate | 5.0Msps~7.0Msps, 1ksps stepd | |||
J.83A | J.83B/J.83C | |||
Constellation | 16/32/64/128/256 QAM | 64/256 QAM | ||
Bandwidth | 8M | 6M | ||
ATSC | RF number | 4/8/12/16/24 carriers (optional) ATSC output | ||
Standard | ATSC A/53 | |||
Bandwidth | 6M | |||
Constellation | 8VSB | |||
FEC | RS(208 188)+Trellis | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0. 1dBm step | |||
ISDB-T | RF number | 4/8/12/16/24 carriers (optional) ISDB-T output | ||
Standard | ARIB STD-B31 | |||
Bandwidth | 6M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||
Transmission Mode | 2K | |||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0. 1dBm step | |||
DTMB | RF number | 4/8/12/16/24 carriers (optional) DTMB output | ||
Standard | DTMB GB20600-2006 | |||
Bandwidth | 8M bandwidth | |||
Constellation | 4QAM, 16QAM, 32QAM, 64QAM | |||
Modulation carriers quantity | single carrier or multi-carriers | |||
Guard intervals | PN420, PN595, PN945 | |||
Internal error correction code | LDPC | |||
Encoding efficiency | 0.4, 0.6, 0.8 | |||
Interlace depth | 240, 720 | |||
MER | ≥42dB | |||
ACLR | 55dB | |||
Frequency range | 110 ~ 960MHz, in 1KHz steps | |||
RF out level | -26dBm ~ -10dBm, in 0.5dB steps | |||
System function | Network management(WEB) | |||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension (W×L×H) | 482mm×480mm×45mm | ||
Weight | 7~9 kg | |||
Environment | 0~45℃(work)；-20~80℃(storage) | |||
Power requirements | AC100~240V ，50/60Hz | |||
