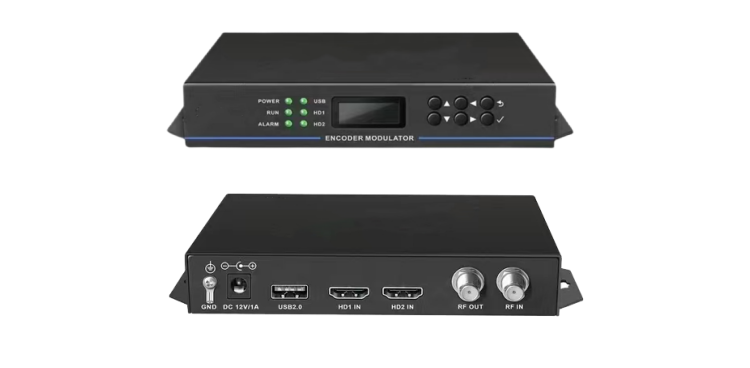

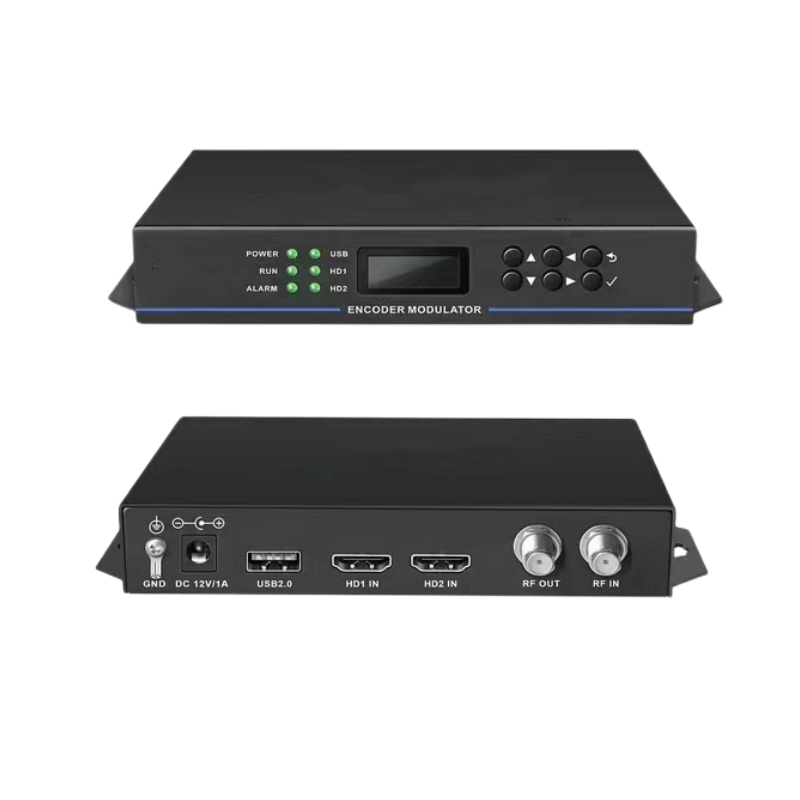

DTV211X 2 Channels HD H.264 Encoder Modulator
DTV211X series is a multi-channel digital TV encoder modulator which developed by our company. The product supports encoding, multiplexing and modulating 2 HD MI signals and 1 USB video signal into 1 RF signal output. It adopts with a RF loop input port which is convenient for users to mix multiple DTV211X outputs or mix with antenna signals. It is perfect for hotels, hospitals, home entertainment and monitoring, also other digital CATV headend system as well.
Support 2 HD MI signals and 1 USB video signal input
Support multi-standard digital systems
Support TS re-multiplexing
Support H.264 encoding
Support 1 external RF signal loop in and internal modulation signal mixed into 1 RF output
Frequency agile design, RF output frequency can be set freely within the frequency range
Easy configuration by buttons and LCD on front panel
Product | Model No. | Output |
DTV211X 2Ch HD H.264 Encoder Modulator | DTV2111 | DVB-C(J.83A) |
DTV2112 | DTMB | |
DTV2115 | ISDB-T | |
DTV2116 | DVB-T | |
DTV2118 | ATSC,8VSB,J.86B |
4.Specification
HD MI | Video Encoding | Standard | H.264 |
Channels | 2 channels HD MI | ||
Resolution | 1920*1080 60P、1920*1080 50P、1920*1080 60i、 1920*1080 50i、1280*720 60P、1280*720 50P | ||
Bitrate | 1-19.5Mbps | ||
Audio Encoding | Standard | MPEG 1 Layer II | |
Sampling Frequency | 48KHz/44.1 KHz/32 KHz | ||
Bitrate | 384Kbps | ||
USB | Interface Standard | USB2.0 | |
Video format | TS, MPG | ||
J.83A | Standard | Annex A | |
Constellation | 16QAM,32QAM,64QAM,128QAM,256QAM | ||
MER | ≥40dB | ||
RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | ||
Output Level | ≥100dBuV(range 0-20dB, step of 0.5dB) | ||
Out-of-band Suppression | ≥60 | ||
Symbol Rate | 5-6.900Msps | ||
J.83B | Standard | Annex B | |
Constellation | 64QAM,256QAM | ||
MER | ≥40dB | ||
RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | ||
Output Level | ≥85dBuV(range 0-20dB, step of 0.5dB) | ||
Out-of-band Suppression | ≥60 | ||
Cable Standard | HRC, IRC or STD | ||
Symbol Rate | 5-6.900Msps | ||
ATSC 8VSB | Standard | ATSC A/53 | |
MER | ≥40dB | ||
Output Level | ≥100dBuV(range 0-20dB, step of 0.5dB) | ||
DVB-T | Standard | DVB-T COFDM | |
Bandwidth | 6/7/8MHz | ||
Constellation | 4QAM, 16QAM, 64QAM | ||
Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||
Transmit Mode | 2K,4K,8K | ||
MER | ≥40dB | ||
RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | ||
Output Impendence | 75Ω | ||
Output Level | ≥100dBuV(range 0-31.5dB，step of 0.5dB) | ||
Out-of-band Suppression | ≥60dB | ||
ISDB-T | Standard | ARIB STD-B31 | |
Bandwidth | 6MHz | ||
Constellation | DQPSK, QPSK, 16QAM, 64QAM | ||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||
Transmit Mode | 2K, 4K, 8K | ||
MER | ≥42dB | ||
RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | ||
Output Impendence | 75Ω | ||
Output Level | ≥100dBuV(range 0-20dB，step of 0.5dB) | ||
Out-of-band Suppression | ≥60dB | ||
DTMB | Standard | GB20600-2006 | |
FFT | 1,3780,1+pilot | ||
MER | ≥40dB | ||
FEC | 0.4,0.6,0.8 | ||
Interleave Mode | 420,595,945,420var,945var | ||
Sync Frame | 240,720 | ||
Constellation | 4QAM-NR,4QAM,16QAM, 32QAM,64QAM | ||
RF Frequency Range | 50-999.999MHz, Min. step of 1KHz | ||
Output Level | ≥100dBuV(range 0-31.5dB，step of 0.5dB) | ||
Output Impendence | 75Ω | ||
Out-of-band Suppression | ≥60dB | ||
Power Supply | Input Voltage | DC 12V | |
Max. Current | 1200mA | ||
Physical Parameters | Dimension | 176*123*28mm | |
Operating Temperature/Humidity | -10℃～45℃、40%～70% | ||
Storage Temperature/Humidity | -40℃～70℃、40%～95% | ||
