HPR8401SM
Catcast

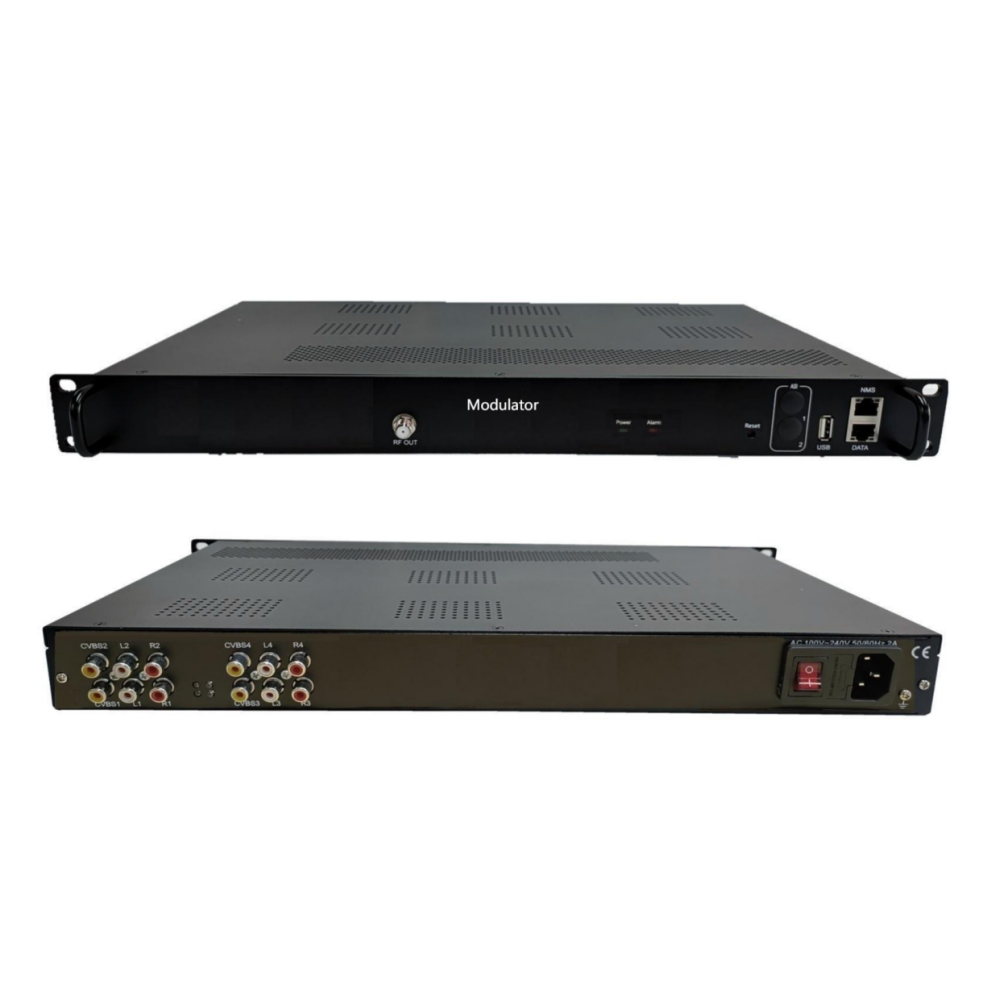

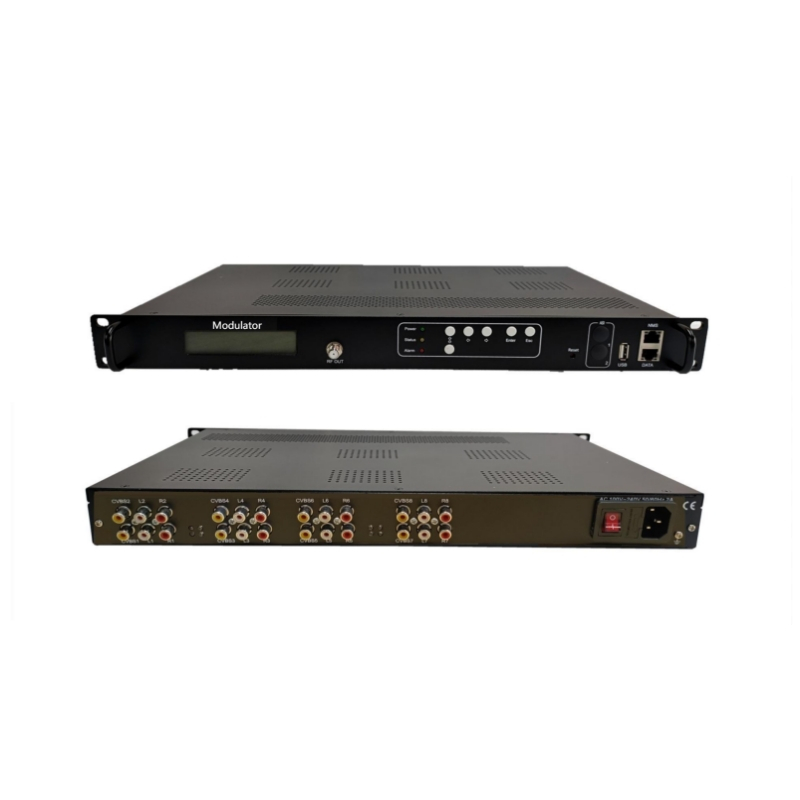

HPR8401SM 4/8*CVBS Input RF Output SD Encoder Modulator
Summary
The HPR8401SM series is the latest cost-effective SD encoder modulator. It supports 4 / 8 CVBS inputs, 1 channel Gigabit IP input / output; 4 channel(ATSC、ISDBT、DTMBT、DVB-C/-T) output, MPTS and SPTS output. With high integration, great performance and low cost, Integrating a complete front-end system functions, this device is highly welcomed in small digital TV transmission systems such as hotels, clubs, hospitals,etc.
Key Features
* 4 / 8 channels CVBS input
* 1 Gigabit IP input/output, 128 SPTS and 1 MPTS output, UDP/RTP protocol (multicast)
* All standard modulation (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.
* Support 2* ASI input/output (optional)
* Web network management
* Support online software upgrading
Specification
Input | 4/8 CVBS | |||
ASI input (optional) | ||||
128 IP address input | ||||
Output | RF output 4 frequencies（DVB-C/DVB-T/ATSC/ISDBT/DMBT） | |||
ASI output (optional) | ||||
IP output（128 SPTS/1 MPTS）IP output over UDP and RTP protocol | ||||
Modulation Mode | DTMBT | 4 DTMB | ||
Standard | DTMB GB20600-2006 | |||
Constellation | 4QAM、16QAM、32QAM、64QAM | |||
MER | ≥40dB | |||
RF frequency | 96~864MHz，1kHz step | |||
RF output level | -35dBm~-5dBm，0.1dB step | |||
DVB-T | 4 DVB-T | |||
Standard | EN300744 | |||
FFT | 2K | |||
Bandwidth | 6M, 7M, 8M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | |||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42 dB | |||
RF frequency | 96~864MHz, 1KHz step | |||
RF output level | -35~ -5dBm, 0.1db step | |||
DVB-C | 4 DVB-C | |||
Standard | EN300 429/ITU-T J.83A/B/C | |||
MER | ≥40db | |||
RF frequency | 96~864MHz, 1KHz step | |||
RF output level | -35~-5dBm , 0.1dBm step | |||
SR | 5.0Msps~7.0Msps, 1ksps step | |||
Constellation | 16/32/64/128/256QAM | |||
Bandwidth | 8M | |||
ATSC | Standard | ATSC A/53 | ||
MER | ≥40dB | |||
RF frequency | 96~864MHz, 1KHz step | |||
Constellation | 8VSB | |||
ISDBT | Standard | ARIB STD-B31 | ||
FFT | 2K | |||
Constellation | DQPSK, QPSK, 16QAM, 64QAM | |||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
Hierarchical mode | A | |||
Bandwidth | 6M | |||
Video Encoding | Encode Format | MPEG-2 | ||
Code Rate | 1Mbps~13Mbps（each channel) | |||
Input port | CVBS | |||
Resolution | Input : 720x576i/720x480i （PAL/NTSC) | |||
Output : 720×576 / 720×480（PAL/NTSC） 544×576 / 544×480（PAL/NTSC） 480×576 / 480×480（PAL/NTSC） 352×576 / 352×480（PAL/NTSC） 352×288 / 352×240（PAL/NTSC） 176×144 / 176×112（PAL/NTSC） | ||||
Video Encoding | Rate Mode | CBR | ||
Encode Format | MPEG1 Layer2 | |||
Sample Rate | 48KHz | |||
Bit Rate | 64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps, 384kbps | |||
System | Web/NMS | |||
中文/English | ||||
Miscellaneous | Dimensions | 440mm×270mm×40mm | ||
Weight | 3-5 kg | |||
Temperature | 0~45℃(Operation)；-20~80℃(Storage) | |||
Voltage range | AC100~240V，50/60Hz | |||
Power consumption | <30W | |||
