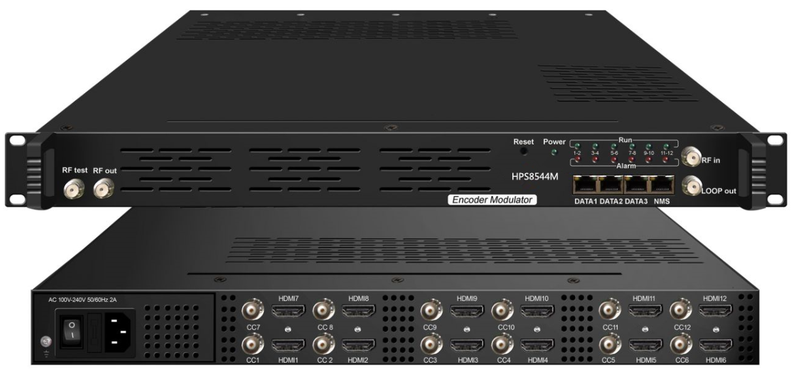

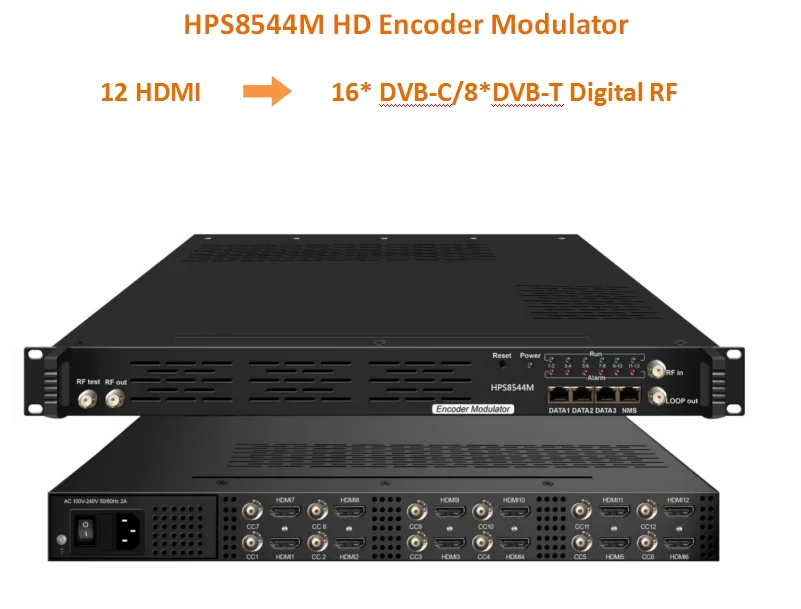

HPS8544M HD Encoder Modulator

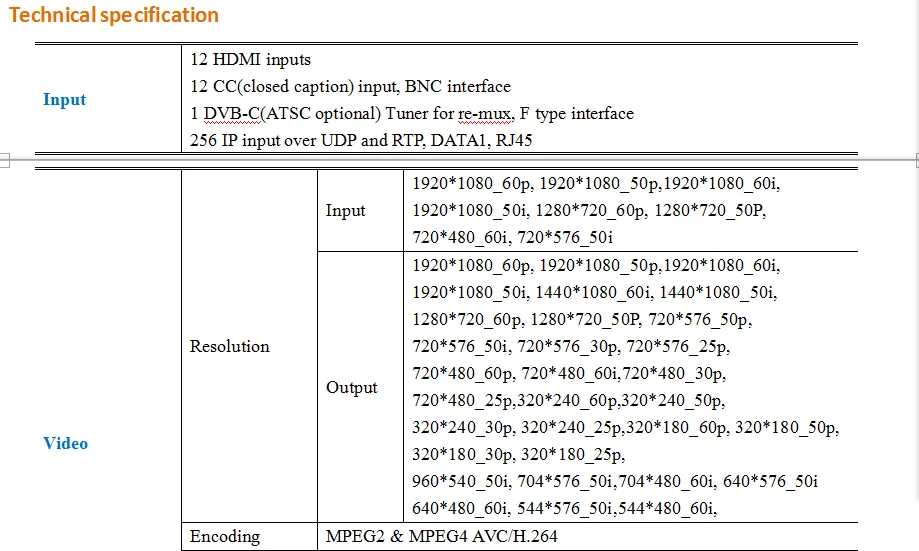

Input:12 HDMI,12 CC,1 DVB-C,IP Output:RF,16 MPTS Video Encoding:MPEG2 & MPEG4 AVC/H.264 Audio Encoding:MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC Size:1U Min Oder:1pcs

HPS8544M HD Encoder Modulator


Product Overview

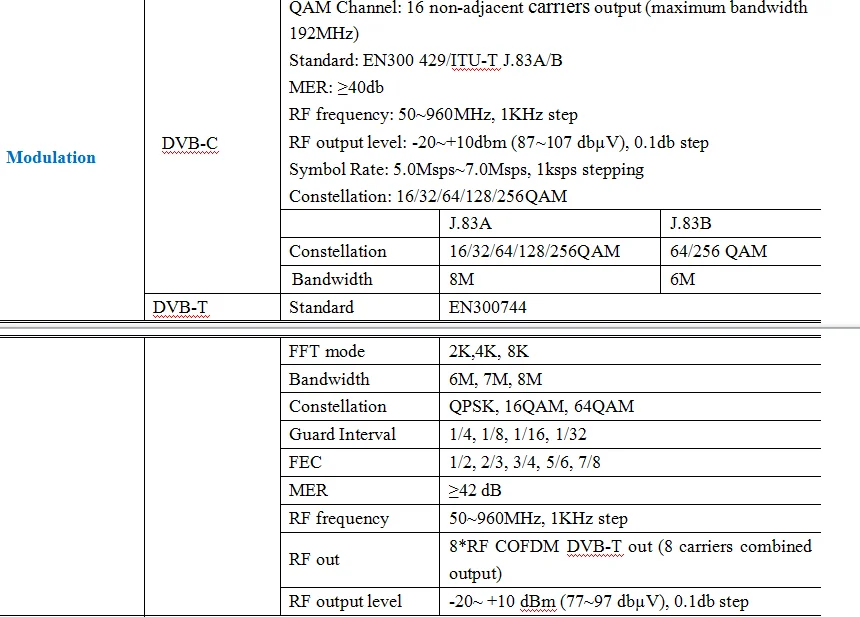

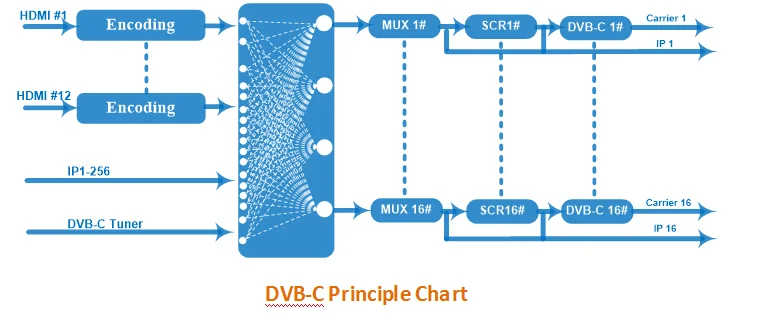

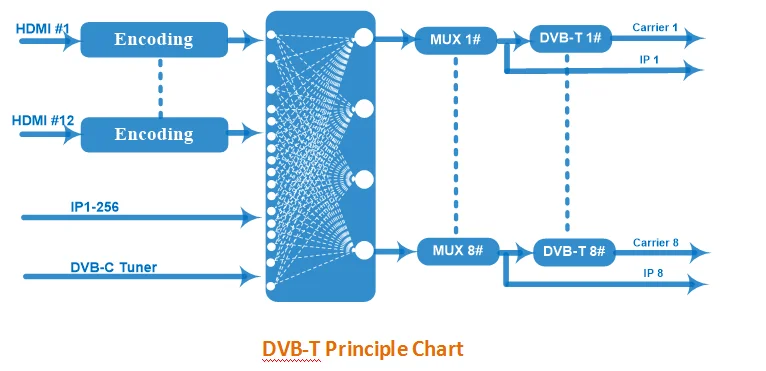

HPS8544M HD encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. It supports 12 HDMI and 12 CC inputs, one DVB-C tuner input and 256 IP input through Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T RF out with 8 non-adjacent carriers and supports 16 MPTS as mirror of 16 carriers or 8 MPTS as mirror of 8 carriers through Data2 (GE) output port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…


Key features

· 12 HDMI inputs with MPEG2 & MPEG4 AVC/H.264 Encoding

· 12 CC(Closed Caption) input port

· 1DVB-C(ATSC optional) tuner input for re-mux

· 256 IP(DATA1 port only) input over UDP and RTP protocol

· MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional)AC3 (2.0/5.1) passthrough

· Support 16 groups multiplexing/Scrambling/DVB-C modulating

· Support 8 groups multiplexing/DVB-T modulating---Optional

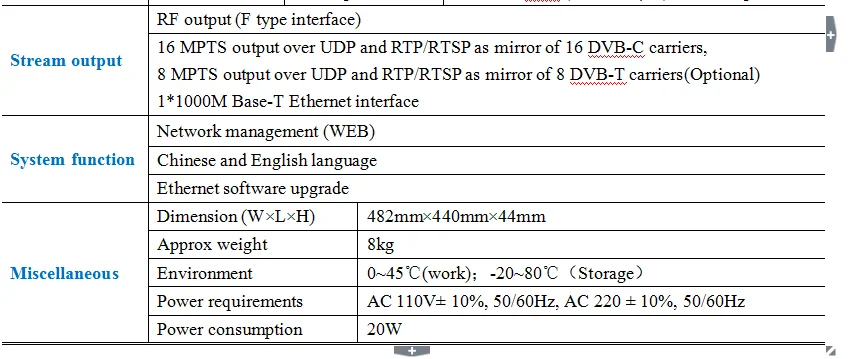

· Support 16 MPTS IP (DATA2 port only) output over UDPRTP/RTSP

· Support 8 MPTS IP (DATA2 port only) output over UDPRTP/RTSP--only for DVB-T RF out

· Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting

· Control via web management, and easy updates via web

· Lowest cost per channel, breakthrough price81.png82.png83.png84.png85.png86.png

We offer not only products, but also our after-sales service. Welcome to contact us to know more.
