HP-7994
CATCAST

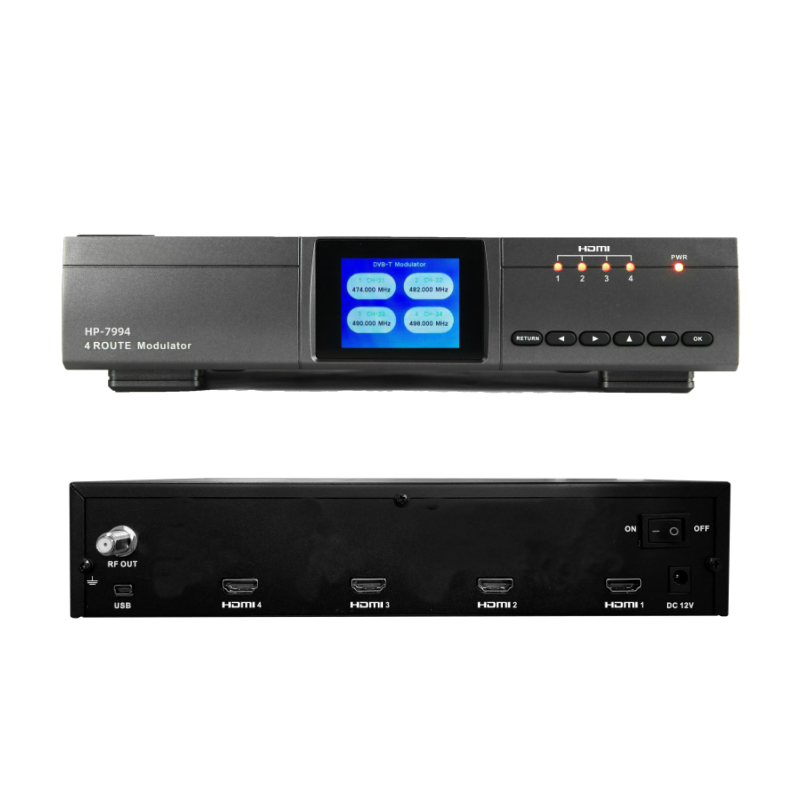

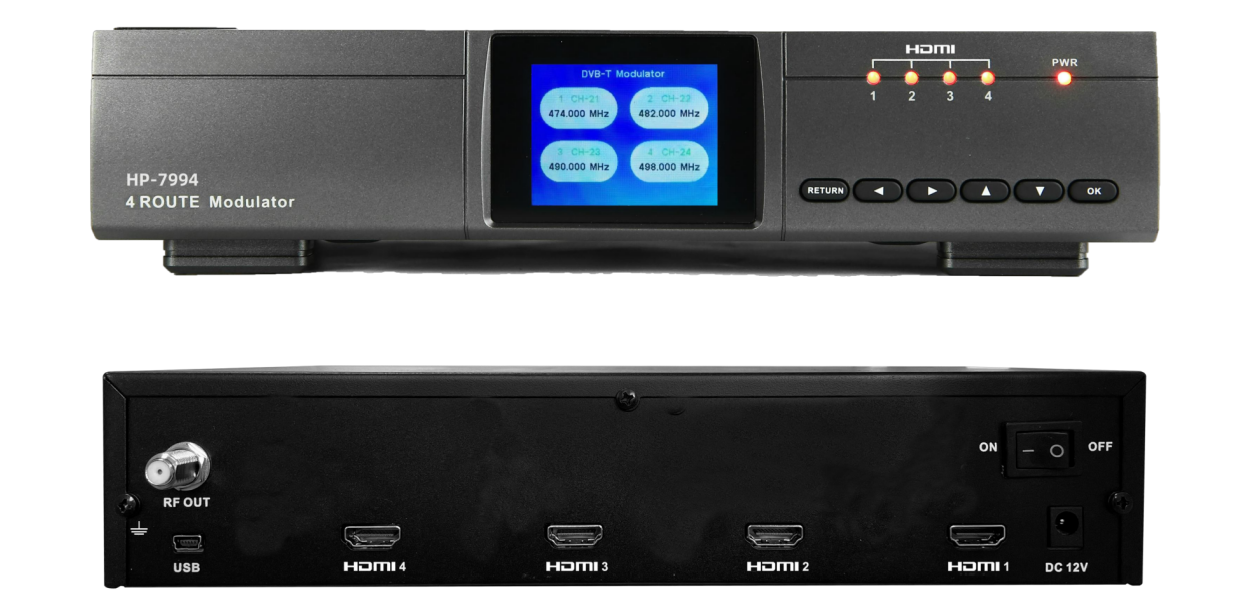

HP-7994 H.264 4 Channel HDMI Compact Encoder Modulator
Product Overview
HP-7994 modulator is developed to adapt global terrestrial digital television.It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert HD signals (AV optional) into DVB-T/DVB-C/ISDB-T RF out.
Key Features
● High level of integration, high-performance, Full-featured,integrated design
● 4 route input modulator that converts HDMI source to a DVB-T/DVB-C/ISDB-T channel
● Standard COFDM modulation and H.264 encoding
● Frequency range: 50~860MHz
● Continuously adjustable RF attenuation range from 0dB to 30dB, step 1dB
● 2.4-inch color LCD display
● Small size and light weight
● User friendly setup and control
● Compact and wall mountable
