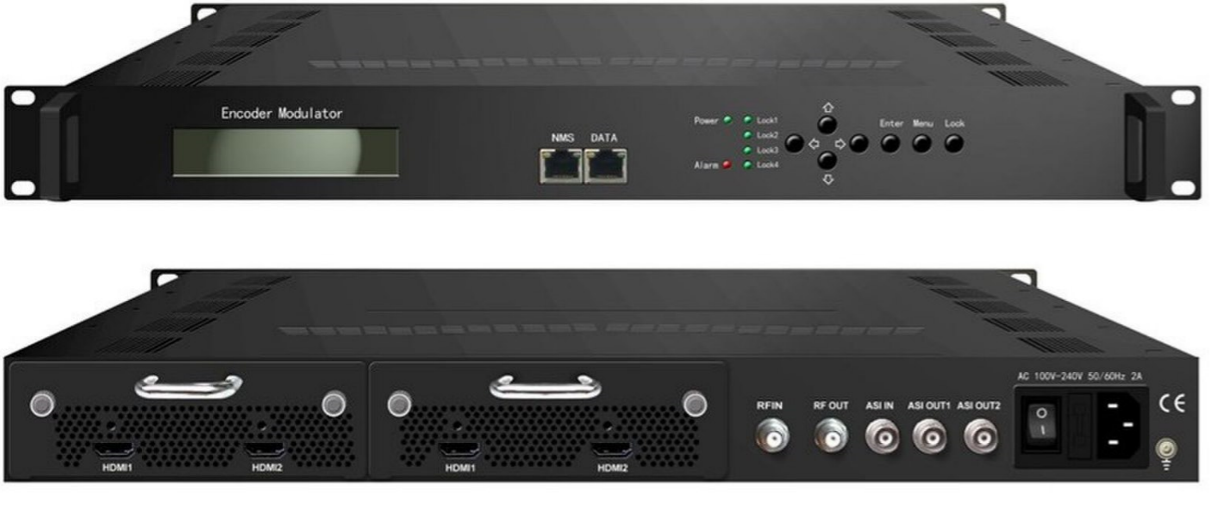

HPS842A 4*HDMI Encoder to DVB-T Modulator

Input:HDMI*4 Output:2*ASI,2*MPTS Video Encoding:MPEG2 HD/MPEG4 HD Audio Encoding:MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC available ) Constellation:QPSK, 16QAM, 64QAM Size:1U Min Oder:1pcs

4*HDMI MPEG4 Encoder DVB-T Moulator

Product Overview


Product Overview

HPS842A series products arenew breakthrough all-in-one devices which integrate encoding (MPEG-2 HD, MPEG-4/AVC H.264) and modulation (DVB-C, DVB-T, ISDB-T, or ATSC) to convert V/A signals into RF output. It has equipped with 4 HDMI channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IP port.

It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/CVBS/SDI/YPbPr/…) as needed.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard.

With its various inputs available, our HPS842A series products are wildly used in public places such as metro, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.


Key Features

MPEG2 HD/MPEG4 HD video encoding

Up to 1920*1080@50P/60P supported(MPEG4)

Up to 1920*1080@50I/60I supported(MPEG2 HD) 4* HDMI in, 1*ASI in

2*RF DVB-T out (2 carriers combined output), double output bandwidth


IP (2 MPTS channels) out

LCN support (Logical Channel Number) Excellent modulation quality MER≥42dB RF Frequency range 30Mhz~960Mhz

LCD display, Remote control and firmware Web NMS management; Updates via web


Lowest cost per channel --- breakthrough price



We offer not only products, but also our after-sales service. Welcome to contact us to know more.
