HPS382
Catcast

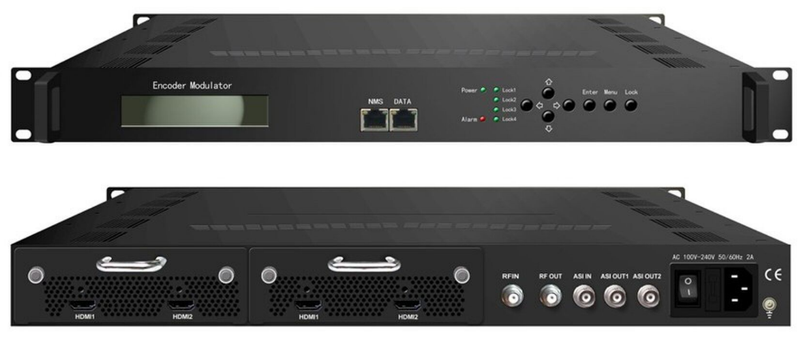

HPS382 2*HDMI to ISDB-T RF Modulator (CATV, HDTV)
Product Overview
HPS382 is newly developed Encoder & Modulator which integrates MPEG2 HD/MPEG4 HD video encoding and ISDB -T (DVB-C/-T/ATSC Optional) modulation to convert HDMI signals to ISDB-T RF out in the frequency range of 30~960MHz. It has equipped with 2 channels of HDMI input, 1 ASI input, and output with 2 ASI ports, 1 UDP IP port, and 1 RF port.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signal is to be received by ISDB-T standard TV sets, ISDB-T STBs and etc.
The device can be wildly used in public places such as metro, market hall, theatre, hotel, resort, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital… besides that it’s a good choice for bars to offer HD sports channels, for VIP entertainment channels, and more.
Key Features
n MPEG2 HD/MPEG4 HD video encoding
n Up to 1920*1080@50P/60P supported (MPEG4 HD);
Up to 1920*1080@50I/60I supported (MPEG2 HD)
n 2* HDMI in (2 for backup), 1*ASI in
n RF ISDB-T out
n LCN support (Logical Channel Number)
n Excellent modulation quality MER≥42dB
n RF Frequency range 30Mhz~960Mhz
n LCD display, Remote control and firmware
n Web NMS management; Updates via web
n Lowest cost per channel --- breakthrough price

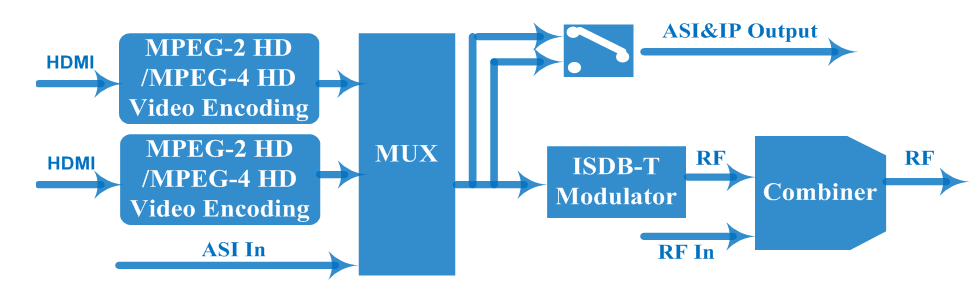

Principle Chart
Specifications
Encoding section
Video | |
| Encoding | MPEG2 & MPEG4 AVC/H.264 |
| Input | HDMI*2 (2 for backup) |
| Resolution | 1920*1080_60P, 1920*1080_50P (-for MPEG4 AVC/H.264 only); 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P; 720*480_60i, 720*576_50i |
Audio | |
| Encoding | MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC available ) |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
| ISDB-T Modulator Section | |
| Standard | ARIB STD-B31 |
| Bandwidth | 6M |
| Constellation | DQPSK,QPSK, 16QAM, 64QAM |
| Guard Interval | 1/32, 1/16, 1/8, 1/4. |
| Transmission Mode | 2K, 4K, 8K |
| MER | ≥42dB |
| RF frequency | 30~960MHz, 1KHz step |
| RF output level | -30~ -10dbm (81~97 dbµV), 0.1db step |
| System | |
| Local interface | LCD + control buttons |
| Remote management | Web NMS |
| output | ASI out (BNC type); IP out (RJ45, 100M) |
| NMS interface | RJ45, 100M |
| Language | English |
General | |
| Power supply | AC 100V~240V |
| Dimensions | 482*300*44mm |
| Weight | 4.5 kgs |
| Operation temperature | 0~45℃ |
