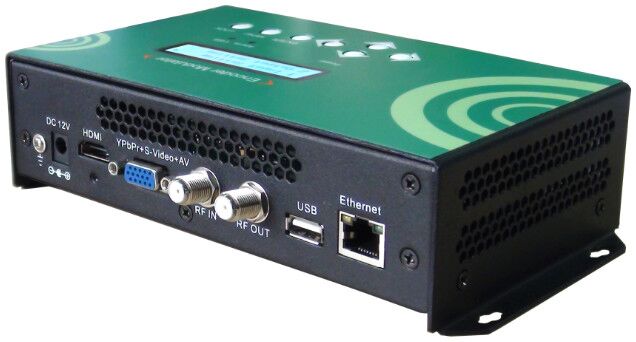

HPS358 Mini HD H. 264 Encoder Modulator with HDMI/AV/YPbPr Input

Input:HDMI Output:RF Video Encoding:MPEG-4 AVC/H.264 Audio Encoding:MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC Size:1U Min Oder:1pcs

Mini HD H.264 Encoder Modulator with HDMI/AV/YPbPr input

HPS358 series encoder & modulator is Catcast's consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-C/DVB-T RF out.
The USB port is designed to record encoded video (TS) and save it in ts files in the USB Keys or Hard Disks, and then the ts files can be playback through the USB port. The ts files can be also generated on a computer with HIPRO's TS Creator.exe program.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, antenna and a USB key or Hard Disk etc. Its output signal is to be received by TV sets or STBs etc.

Key Features
  1. HDMI/YPbPr/S-Video/AV input for encoding

  2. MPEG4 AVC/H264 HD/SD video encoding,

  3. MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC audio encoding optional

  4. Record encoded TS and playback TS files (*.ts) through USB port

  5. DVB-C, DVB-T RF output optional

  6. Transmission mode (FFT): 2K, 8K (applied in DVB-T modulation)

  7. Enhanced USB function: more stable and compatible with Hard Disks and USB Keys of various brand

  8. Easy operation with LCD + control buttons, and Web-server management

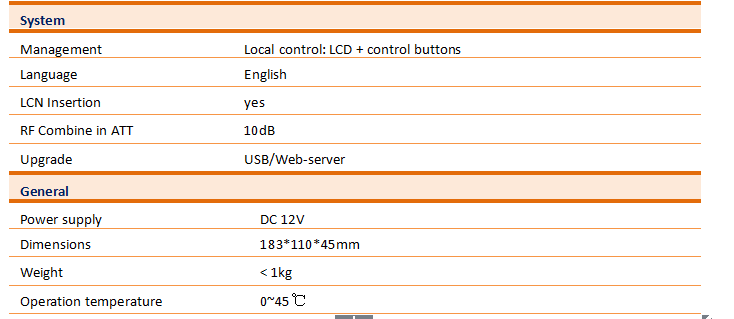

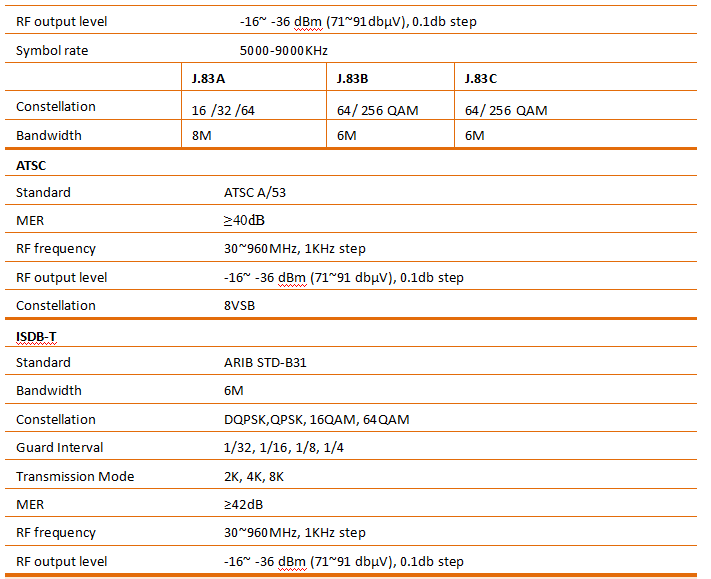

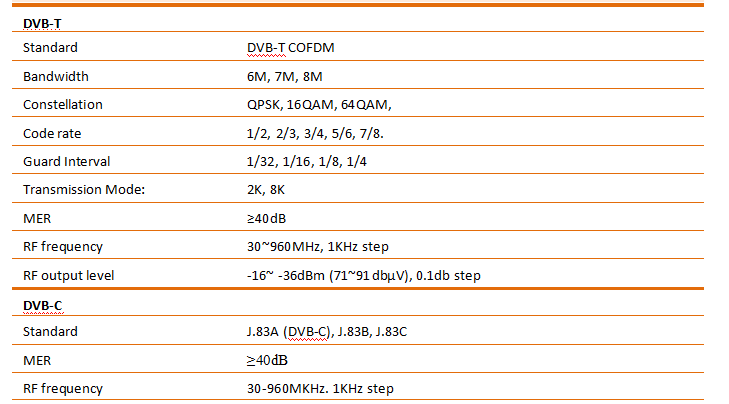

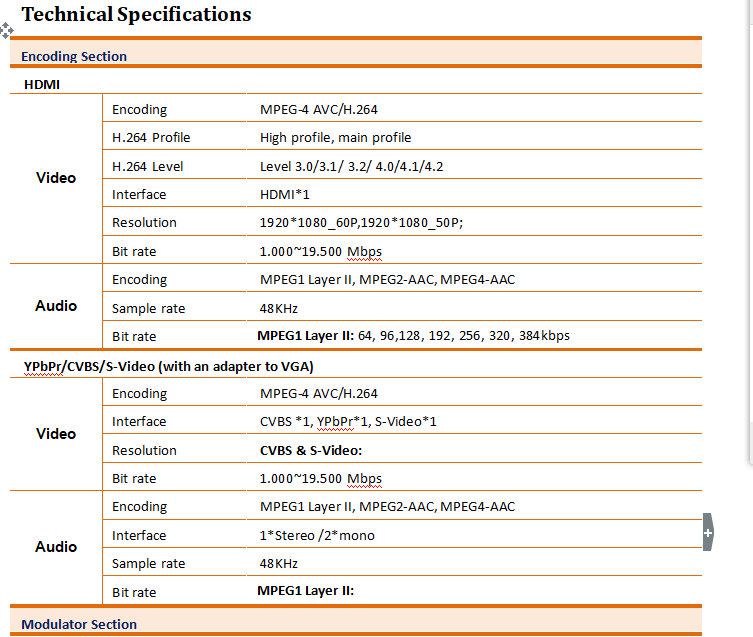

23.png 24.png 25.png 26.png
We offer not only products, but also our after-sales service. Welcome to contact us to know more.
