HP8303F DVB-S2X IF Modulator with ASI IP in and RF out

Input:ASI,IP10MHz Output:IF, Range:50 ~ 960 MHz Channel Coding:DVB-S/S2/S2X Size:1U Min Oder:1pcs

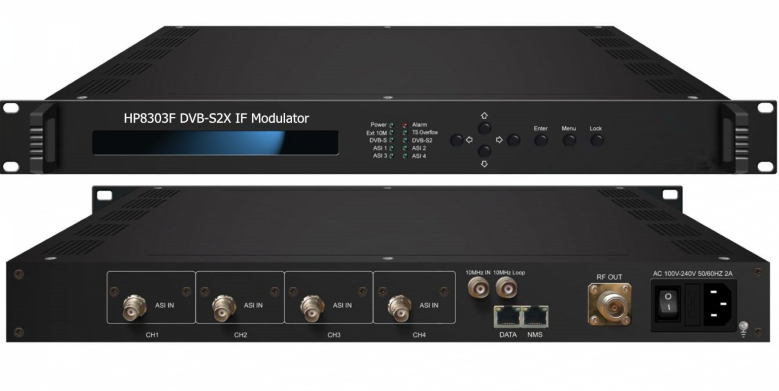

HP8303F  DVB-S2X IF Modulator with ASI IP in and RF out


HP8303F is a high-performance modulator developed according to DVB-S2X (EN302 307-2) standard which is the standard of third generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2/S2X IF output.

BISS scrambling mode is inserted to this DVB-S2X modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel.

With its high cost-effective design, HP8303F DVB-S2X IF modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.



 *  Fully complying with DVB-S (EN300 421), DVB-S2 (EN302 307-1) and DVB-S2X (EN 302 307-2) standard

 *  4 ASI inputs supporting hot backup (3 for backup)

 *  Support IP (100M) signal input

 *  QPSK, 8PSK, 16APSK, 32APSK, 8PSK-L, 16APSK-L, 32APSK-L Constellations

 *  Support RF CID setting

 *  Constant temperature crystal oscillator, as high as 0.1ppm stability

 *  10MHz outer reference clock output

 *  Support BISS scrambling

 *  Support local and remote control with Web-server NMS

 *  Output frequency range: 50~960MHz, 1KHz stepping

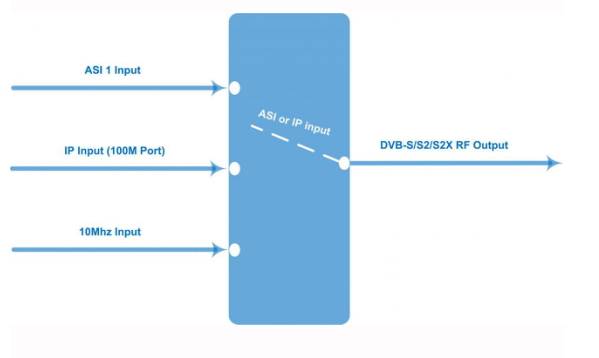

Principle Chart
