HPS3402E
CATCAST
HPS3402E DVB-S2 Modulator spcs (GE+ASI+Tuner input with Mux).pdf

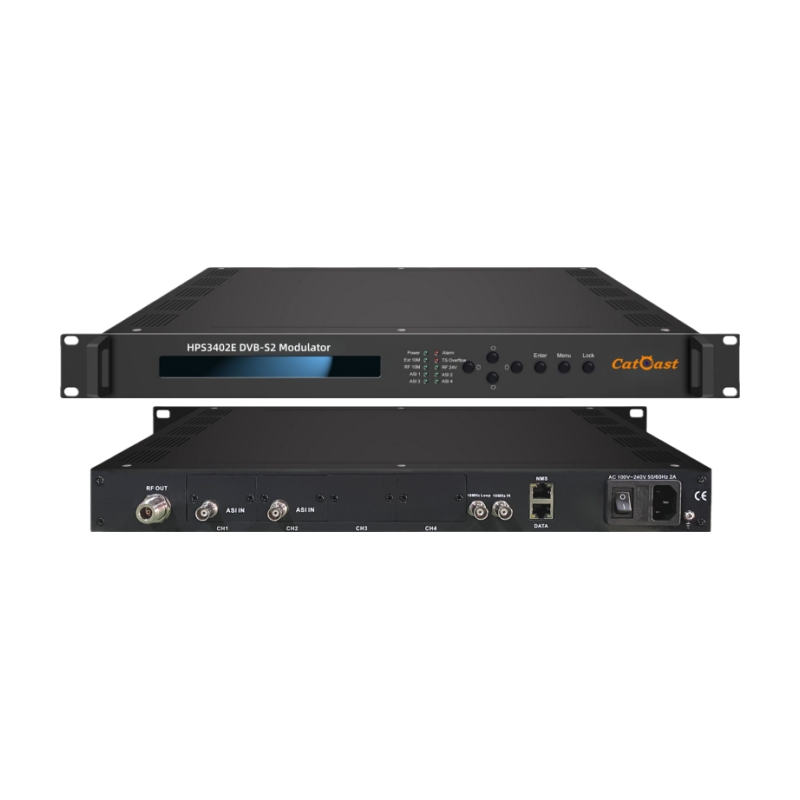

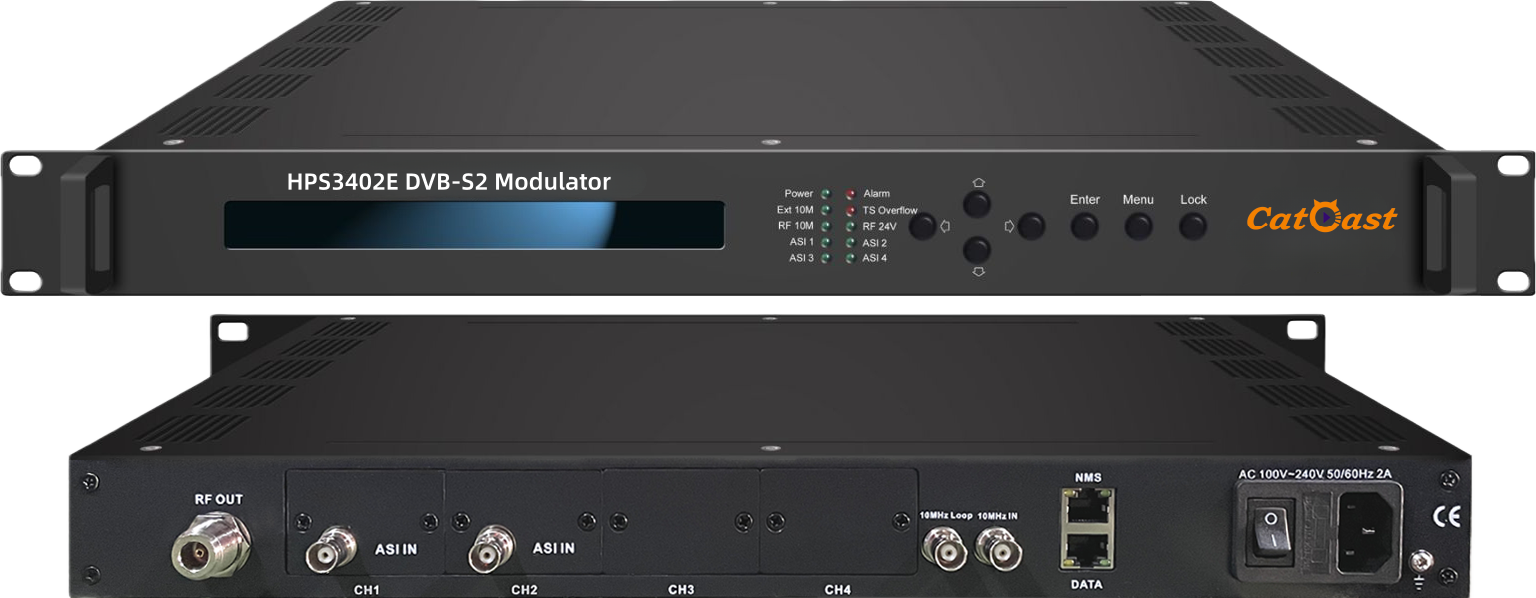

HPS3402E ASI IP to DVB-S2 Modulator
Outline
Catcast HPS3402E is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input satellite signal and/or ASI and IP streams into digital DVB-S/S2 RF output.
BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with Web-server NMS software and LCD in the front panel.
With its high cost-effective design, Catcast HPS3402E DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.
Features
* Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard
* ASI and/or DVB-S2 inputs for re-mux or pass through (4 ports for ASI and S2 tuner input combination)
* Support IP (1000/100M) signal input for re-mux or pass through
* Support Multiplexing and PSI/SI edit
* QPSK, 8PSK, 16APSK, 32APSK Constellations
* Support RF CID setting (Optional as per order)
* Constant temperature crystal oscillator, as high as 0.1ppm stability
* Support coupling 10Mhz clock output through RF output port
* Support 24V power output through RF output port
* Support BISS scrambling
* Support SFN TS transmission
* Output frequency range: 950~2150MHz, 10KHz stepping
* Support local and remote control with Web-server NMS

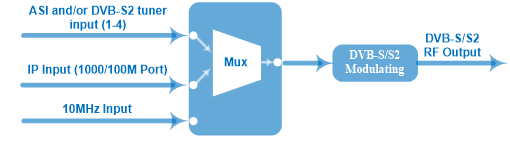

Principle Chart
Specifications
IP Input | 1*IP Input (RJ45, 1000/100M TS Over UDP) | |||
ASI Input | Supporting both188/204 Byte Packet TS Input | |||
1-4 ASI Inputs (Connector: BNC, Impedance 75Ω) | ||||
Tuner Input (0-4 inputs optional) | DVB-SInput Frequency950~2150MHzSymbol rate0.5~45MspsSignal Strength- 65- -25dBmFEC1/2, 2/3, 3/4, 5/6, 7/8ConstellationQPSKMax input bitrate≤160 MbpsDVB-S2Input Frequency950~2150MHzSymbol rateQPSK/8PSK /16APSK :0.5~45 Msps32APSK: 0.5~40MspsFECQPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/108PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10ConstellationQPSK, 8PSK, 16APSK, 32APSKMax input bitrate≤160 MbpsDVB-S2XInput Frequency950~2150MHzSymbol rateQPSK/8PSK /16APSK :0.5~45 Msps8APSK/32APSK: 0.5~40MspsFECQPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/208PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/108APSK: 5/9-L, 26/45-L16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/9032APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9ConstellationQPSK/8PSK/8APSK/16APSK/32APSKMax input bitrate≤160 Mbps | |||
Multiplexing | Maximum PID Remapping | 128 input per channel | ||
Function | PID remapping (automatically or manually) | |||
Accurate PCR adjusting | ||||
Edit PSI/SI tables (PAT/PMT/SDT/CAT/NIT) | ||||
10MHz Reference Clock | 1*External 10MHz Input (BNC Interface); 1*Inner 10MHz Reference clock | |||
RF Output | RF Range: 950 ~ 2150 MHz, 10KHz stepping | |||
Output Level Attenuation：-26 ~ 0 dBm，0.5dBm Stepping | ||||
MER≥40dB | ||||
Connector: N type, Impedance 50Ω; N to F adapter | ||||
Channel Coding and Modulation | Standard | DVB-S | DVB-S2 | |
Outer coding | RS Coding | BCH Coding | ||
Inner coding | Convolution | LDPC Coding | ||
Constellation | QPSK | QPSK,8PSK, 16APSK,32APSK | ||
FEC/ Convolution Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | ||
Roll-off Factor | 0.2, 0.25, 0.35 | 0.2, 0.25, 0.35 | ||
Symbol Rate | 0.05~45Msps | 0.05~40Msps (32APSK); 0.05~45 Msps (16APSK/8PSK/QPSK) | ||
BISS Scramble | Mode 0, mode 1, mode E | |||
Web-server NMS | ||||
Language: English | ||||
Ethernet software upgrade | ||||
24V power output through RF output port | ||||
Miscellaneous | Dimension | 482mm×410mm×44mm | ||
Temperature | 0~45℃(operation), -20~80℃ (storage) | |||
Power | 100-240VAC±10%, 50Hz-60Hz | |||
Order Guide
HPS3402E (New version) | HPS3402E (Old version) | HPS3402F | HPS3403 | HPS3403F | |
1 IP (100/1000M) input, ASI and/or DVB-S2 tuner inputs for re-mux or pass through | 1 IP (100M) or 1 ASI pass through alternative | ||||
DVB-S/S2 out | ● | ● | ● | ● | ● |
DVB- S2X out | ● | ● | |||
QPSK, 8PSK | ● | ● | ● | ● | ● |
16APSK, 32APSK | ● | ● | ● | ● | |
8APSK-L,16APSK-L, 32APSK-L | ● | ● | |||
RF output (950-2150MHz) | ● | ● | ● | ||
IF output (50-960MHz) | ● | ● | |||
Mux | ● | ||||
