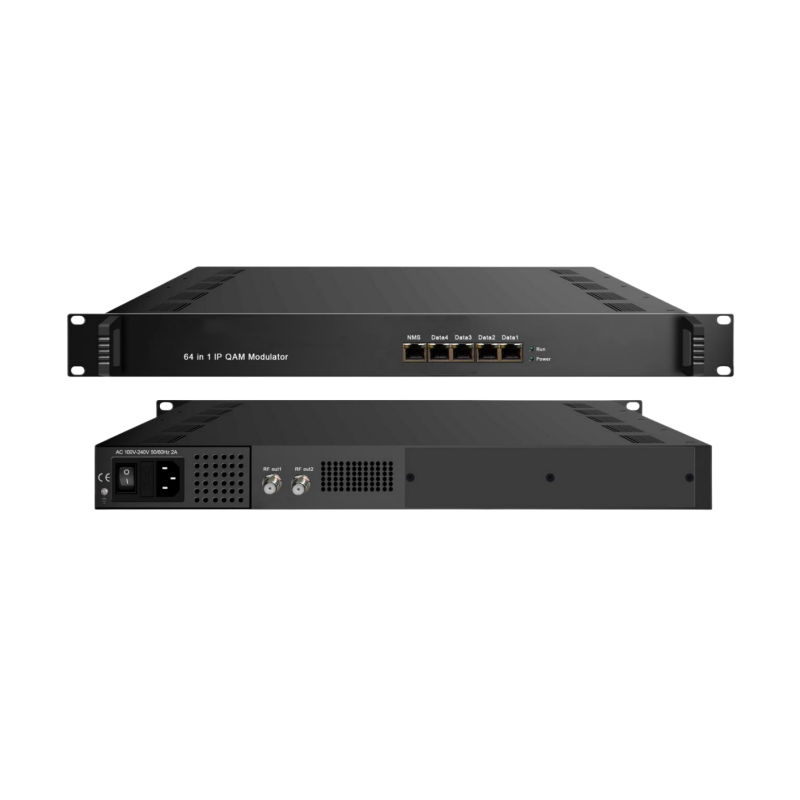

HP3964C IP MUX Scrambling QAM Modulator

HP3964C 64 in 1 IP QAM modulator is a Multiplexing-scrambling-modulating all-in-one device developed by CATCAST. It has 64 multiplexing channels, 64 scrambling channels and 64 QAM (DVB-C) modulating channels, and supports maximum 512 IP inputs through 4 data ports and 64 non-adjacent carriers (50MHz~960MHz) output through 2 RF output interfaces. The device is characterized with dual RF output ports which broaden the bandwidth for QAM carriers.
Key Features
4 GE inputs, Data1, Data2, Data3 and Data 4
Supports up to 512 IP inputs through 4 data ports over UDP/RTP
Max 840Mbps and 512 IP inputs for each GE input
Supports accurate PCR adjusting, CA PID filtering, PID remapping and PSI/SI editing
Supports up to 256 PID remapping per channel
Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
Support 64 multiplexed or scrambled IP outputs over UDP/RTP/RTSP 64 non-adjacent QAM carriers output from 2 RF interfaces, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B/C
Supports RS (204,188) encoding
Support Web-based Network management
We offer not only products, but also our after-sales service. Welcome to contact us to know more.
