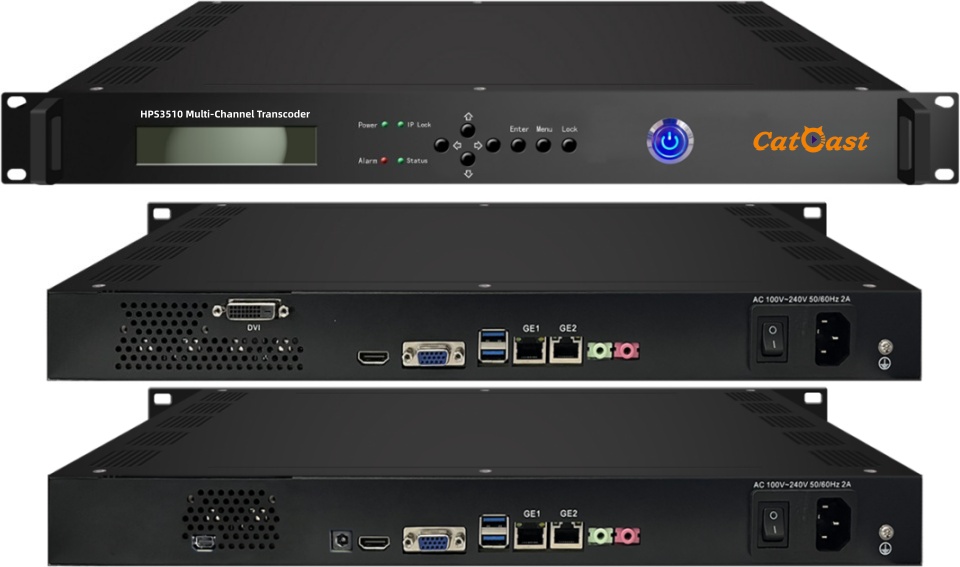

HPS3510
Catcast
Outline
HPS3510 multi-channel transcoder supports to convert multiple video formats to H.264/H.265 based on software. With enhanced hardware, it presents superior performance with high reliability and stability. It is typically used to reduce video bitrate and more effectively utilize the tight network bandwidth resources.
Key Features
• Support multi-channel transcoding
• Video input in MPEG2/H.264/H.265 format, output in H.264/H.265 format
• IP input over UDP/RTMP/RTSP/HTTP/HLS/SRT; Video file input over TS/MP4/MKV/MOV/FLV
• IP SPTS output over UDP/RTMP/HTTP/HLS/SRT
• Support convert one stream output by multiple protocols
• Support resolution and bitrate downscale and upscale conversion
• Support null packet insert (for UDP out)
• Web-base GUI and LCD/Key button for easy management

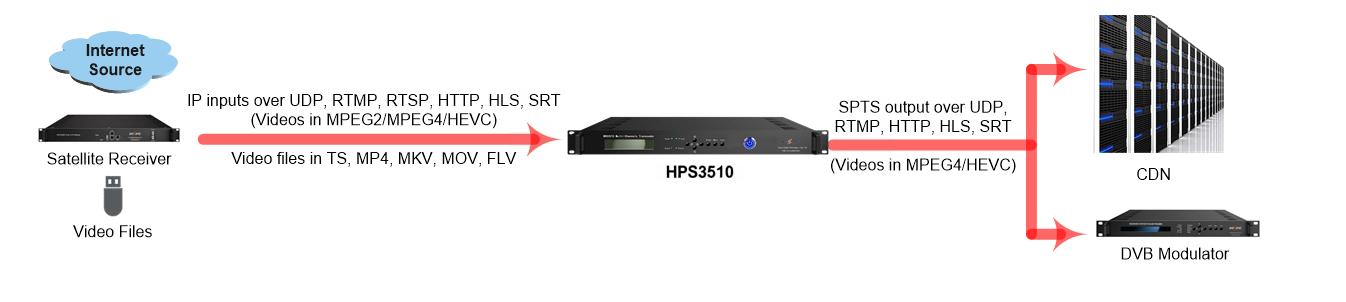

Application Example
Specifications
Input | IP Stream Input | 2x GE port, RJ45, Protocol: UDP (MPTS/SPTS); RTMP, RTSP, HTTP, HLS, SRT (SPTS) | ||
Video file input | TS, MP4, MKV, MOV, FLV | |||
Video | Input Format | MPEG-2/H.264/H.265 | ||
GOP | 0-60 | |||
Output Format | H.264 (main/baseline/high profile); H.265 | |||
Resolution | Input: 4K-50/25, 1080p-60/50, 1080i-60/50, 720p-60/50, 576i, 480i | |||
Output: 4K-50/25, 1080p-60/50, 1080p-30/25, 720p-60/50, 576p-25, 480p-30 | ||||
Bitrate out | 0.5Mbps - 20 Mbps | |||
Audio | Format | MPEG-2, AC3, AAC, AAC-HE, AAC-HE-V2 | ||
Sampling rate | 44.1KHz, 48KHz | |||
Bitrate out | MPEG-2: 32Kbps~384Kbps AC3, AAC, AAC-HE, AAC-HE-V2: 48Kbps~640Kbps | |||
Video quality mode | high, balanced, normal | |||
IP out | 2x GE port, RJ45, SPTS Protocol: UDP, RTMP (Client mode, push stream to server) RTMP, HTTP, HLS (Server mode, pull stream) SRT (just use caller mode and TS payload) | |||
System | Web-base GUI and LCD/Key button | |||
Language: Chinese/English | ||||
Ethernet software upgrade | ||||
General | Dimension | 482mm×328mm×44mm (WxLxH) | ||
Net weight | Approx 4kg | |||
Temperature | 0~50℃(operation), -20~80℃(storage) | |||
Power Supply | AC 100V-240V 50/60Hz, 2A | |||
Consumption | ≤150W | |||
Test data based on Balanced mode and Multicast output (for reference) -- Basic Model
Input | Output | Channel NO. | |||
Resolution | Video Format | Resolution | Video Format | Bit Rate | |
4K-50 | H.265/H.264/MPEG2 | 576p-25/720p/1080p/4K-25/4K-50 | H.265/H.264 | 0.5 - 20Mbps | 2-3 |
4K-25 | 576p-25/720p/1080p/4K-25 | 5-6 | |||
1080p-60/50 | 480p-30/576p-25/720p/1080p | 10-12 | |||
1080i-60 | 480p-30/576p-25/720p/1080p-30/25 | 19-21 | |||
1080i-50 | 22-24 | ||||
720p-60/50 | 480p-30/576p-25 | 22-24 | |||
480i/576i | 480p-30/576p-25 | 70-76 | |||
Test data based on Balanced mode and Multicast output (for reference) -- Advanced Model
Input | Output | Channel NO. | |||
Resolution | Video Format | Resolution | Video Format | Bit Rate | |
4K-50 | H.265/H.264/MPEG2 | 4K-50 | H.265/H.264 | 0.5 - 20Mbps | 3-4 |
4K-25 | 6-8 | ||||
1080p/720p/576p-25/480p-30 | 11-14 | ||||
4K-25 | 4K-25 | 7-9 | |||
1080p-60/50 | 12-14 | ||||
1080p-30/25, 720p-60/50 | 27-32 | ||||
576p-25/480p-30 | 32-38 | ||||
1080p-60/50 | 1080p-60/50 | 13-17 | |||
1080p-30/25, 720p-60/50 | 29-34 | ||||
576p-25/480p-30 | 48-56 | ||||
1080i-60/50 | 1080p-30/25 | 28-32 | |||
720p-60/50 | 30-36 | ||||
576p-25/480p-30 | 68-78 | ||||
720p-60/50 | 720p-60/50 | 30-36 | |||
576p-25/480p-30 | 68-78 | ||||
480i/576i | 576p-25/480p-30 | 90-100 | |||
