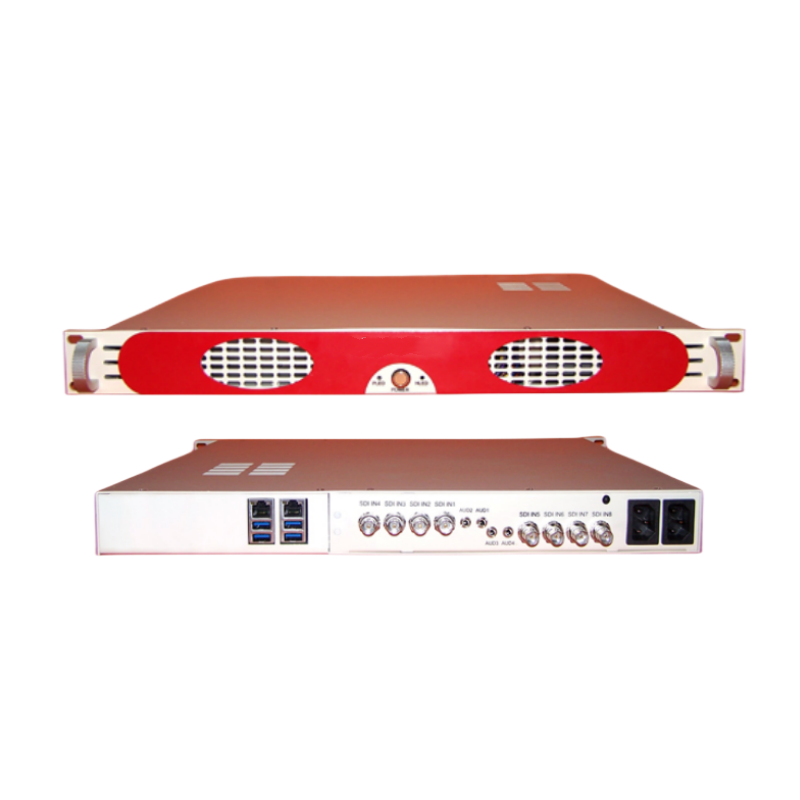

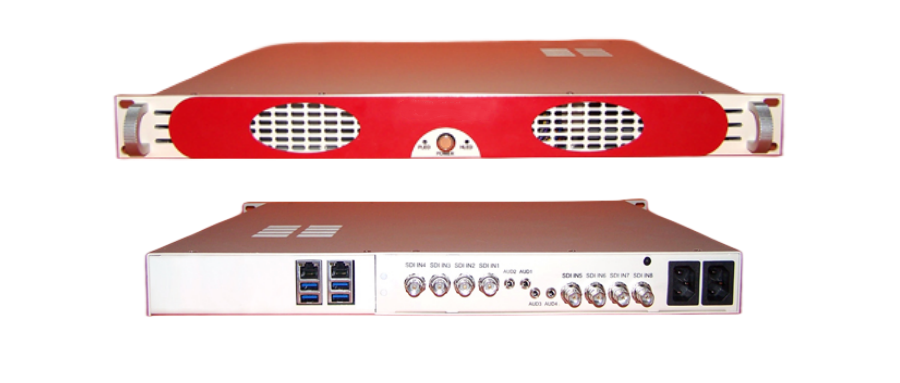

HPT108 8-channel H.264 HD Video Encoder Transcoder
Introduction
HPT108 8-channel H.264 HD encoder transcoder adopts standard 1U chassis structure, is a high quality broadcast audio and video real-time encoder transcoder product. This product not only has the traditional MPEG2, H.264/AVC video encoding and transcoding ability, but also supports the latest international video standard H.265/HEVC and China's independent intellectual property rights video standard AVS+, AVS, AVS2 (optional).
HPT108 8-channel H.264 HD encoder transcoder can can compress 8-channel 3G/HD/SD-SDI digital video via powerful CPU+GPU cooperative coding module into any of the above mentioned video encoding formats in real time, and can also convert 8-channel HD IP input stream or 24-channel SD IP input stream in real time.
Features
• 1U case, advanced CPU and GPU co-coding and transcoding technology are adopted
• Embedded web server supports unified configuration management after remote web page login
• Support H.264/AVC, MPEG-2, H.265/HEVC, AVS, AVS+, AVS2(optional) video encoding format
• Support MPEG-1 layer 2, MPEG-1 layer 3, LC-AAC, HE-AAC, AC3, EAC3 audio encoding format
• Support video acquisition methods: 8-channel 3G/HD/SD-SDI
• Support SDI video 1080p, 1080i, 720p, 576i, 480i video format input
• Support SPTS, MPTS over UDP, FLV over RTMP, HLS over HTTP transmission stream IP input
• Support UDP, RTP, RTSP, RTMP, HTTP, SRT agreements such as the output
• Support the output video stream delay settings, delay time 0-120 seconds custom
• Support internal multiplexer, which can multiplex SPTS program stream after multiplexing and transcoding into MPTS program stream
• Support two gigabit ethernet ports, can be flexible configuration of IP program input and output physical channels
• Support 8-channel HD IP transcoding or 24-channel SD IP transcoding
• Support picture, caption overlay, multi-screen splicing and other software functions customization
• Support main and standby signal switching function
• Support GOP length, GOP structure and bit rate control buffer settings
• Support CBR, VBR rate control mode
• Stable operation of the equipment, supporting 7x24 hours uninterrupted work
Specifications
SDI Input
SDI signal format | 3G/HD/SD-SDI |
Channel | 8 |
Resolution | 1080p60/50/30/25 |
Interface | BNC 75Ω |
Video encoding
Video encoding format | H.264/AVC, MPEG2, H.265/HEVC, AVS, AVS+, AVS2(optional) |
Bit rate | 1.0-50.0Mbps |
Rate control | CBR, VBR |
Video pretreatment | De-interleaving |
Audio encoding
Audio encoding format | MPEG-1 layer 2, MPEG-1 layer 3, LC-AAC, HE-AAC, AC3, EAC3 |
Sampling rate | 48KHz, 44.1KHz, 32KHz |
Channel | Mono, stereo, 5.1, 7.1 surrounding stereo sound |
Bit rate | 64Kbps-1024Kbps |
IP stream input
Input interface | RJ45 |
Rate | 1000Mbps |
Stream format | H.264/AVC, MPEG2, H.265/HEVC, AVS, AVS+, AVS2(optional) |
Network protocol | UDP, RTP, RTSP, RTMP, HTTP, SRT |
Transport stream format | SPTS, MPTS, FLV, HLS |
IP stream output
Output interface | RJ45 |
Rate | 1000Mbps |
Stream format | H.264/AVC, MPEG2, H.265/HEVC, AVS, AVS+, AVS2(optional) |
Network protocol | UDP, RTP, RTSP, RTMP, HTTP, SRT |
Transport stream format | SPTS, MPTS, FLV, HLS |
Management | Web-based remote network management software |
Physical
Dimension(H×W×D, mm) | 44×433×404(mm) |
Operation temperature | 0-50℃ |
Relative humidity | 0-95%, non-condensing |
Power supply | 130-260VAC, 50/60Hz |
