HPR8401S
Catcast

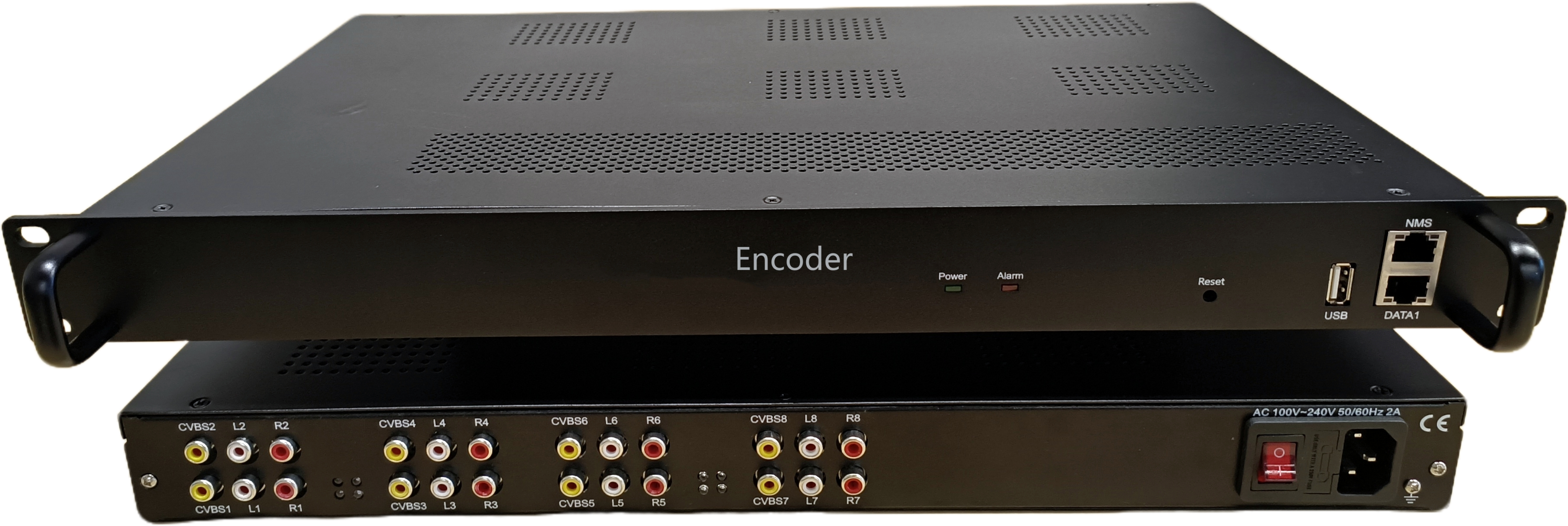

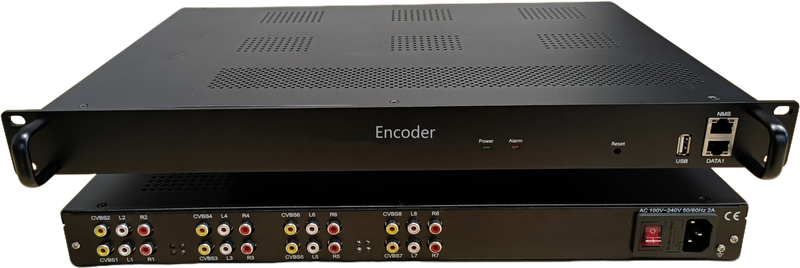

HPR8401S 8 in 1 CVBS To IP MPEG2 SD Encoder
Outline
The HPR8401S series is the latest cost-effective SD encoder . It supports 4 / 8 CVBS inputs, 1 channel Gigabit IP input / output; 4 MPTS and 256 SPTS output.With high integration, great performance and low cost, Integrating a complete front-end system functions, this device is highly welcomed in small digital TV transmission systems such as hotels, clubs, hospitals,etc.
Key Features
4 / 8 channels CVBS input
1 Gigabit IP input/output, 256 SPTS and 4 MPTS output, UDP/RTP protocol (multicast)
Support 2* ASI input/output separately (optional)
LCD and control buttons (optional)
Web network management
Support online software upgrading
Specifications
Input | 4/8 CVBS | |
128 IP address input；ASI input (optional) | ||
Output | IP output, 256 SPTS/ 4 MPTS output | |
ASI output (optional) | ||
Video Encoding | Encode Format | MPEG-2 |
Code Rate | 1Mbps~13Mbps（each channel) | |
Input port | CVBS | |
Resolution | Input: 720x576i/720x480i （PAL/NTSC) | |
Output: 720×576 / 720×480（PAL/NTSC） 544×576 / 544×480（PAL/NTSC） 480×576 / 480×480（PAL/NTSC） 352×576 / 352×480（PAL/NTSC） 352×288 / 352×240（PAL/NTSC） 176×144 / 176×112（PAL/NTSC） | ||
Audio Encoding | Rate Mode | CBR |
Encode Format | MPEG1 Layer2 | |
Sample Rate | 48KHz | |
Bit Rate | 64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps | |
Miscellaneous | Dimensions | 440mm×270mm×40mm |
Weight | 3-5 kg | |
Operation Temperature | 0~45℃ | |
Storage Temperature | -20~80℃ | |
Voltage range | AC100~240V，50/60Hz | |
Power consumption | <30W | |
