HPNE9000U
Catcast

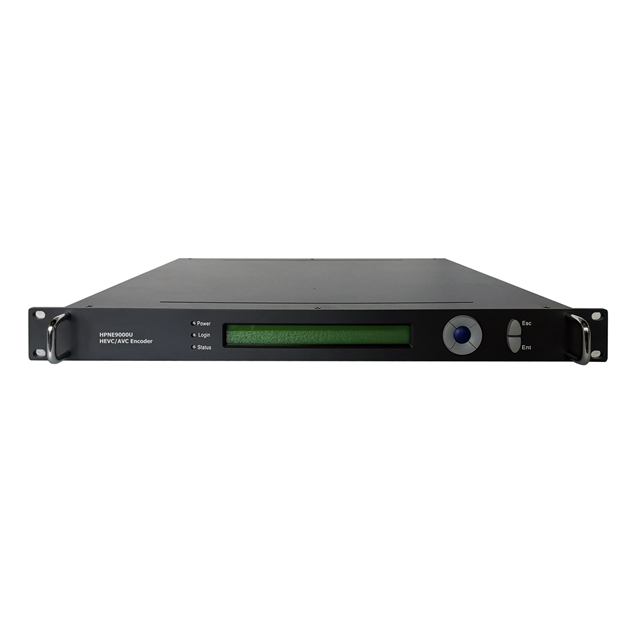

HPNE9000U IPTV Broadcast HEVC HD Network Encoder
Outline
HPNE9000U HEVC/AVC HD Network Media Encoder adopts advanced H.265/HEVC, H.264/AVC video compression algorithm and MPEG4 AAC audio compression algorithm. It also has excellent video performance and audio reproducibility under ultra low bandwidth network. It can achieve perfect presentation of 1080P60/50 HD video under 1Mbps video code rate and 30kbps audio code rate. It supports low latency encoding technology, 1080P60 encoding delay is less than 160ms.
In order to adapt to various complex network audio and video application environments, HPNE9000U provides multiple streaming media protocols, such as HLS/HTTP/RTMP/RTP/RTSP/UDP/SRT protocol (SRT is optional). This full function device makes it ideal for point to point transmission over LAN/Internet, Network live video broadcast, IPTV broadcast, emergency video, mobile video broadcast, remote conference, hotel VOD, campus radio broadcast, hospital expert consultation, etc
Key Feature
1. High reliability, embed process,low power
2. H.265/HEVC, H.264/AVC video encoding & AAC audio encoding
3. High quality @ low bit rate, 1080P60 1Mbps, under H.265/HEVC encoding
4. Ultra low latency processing, less than 160ms
5. Advanced compressing Algorithm, enhance picture quality. Triple B-frame prediction, minimize 75% bandwidth under excellent picture quality.
6. HDMI, HD/SD-SDI,CVBS video input, embeded HDMI &HD/SD-SDI audio, analog XLR audio input
7. IP output, HLS/HTTP, RTSP/RTP, RTMP, UDP, SRT protocol (SRT is optional )
8. Support 4 streams simultaneously output, each stream has 4 push stream address to push stream or client pull stream access
9. Support audio volume adjustment,
10. Support two-way voice intercom
11. Support 1080P, 1080I ,720P and PAL NTSC video input
12. Support downscale resolution, any down-conversion resolution input and output, support vertical screen encoding
13. Compatible publishing stream to Adobe FMS, Wowza,RED5 media server
14. Web-NMS managment
Specification
Input | Video | HD/SD-SDI (BNC) |
HDMI (HDCP Support) | ||
CVBS (BNC) | ||
720x480i/p 720x576i/p 1280x720p 1920x1080i/p | ||
Audio | HD/SD-SDI (BNC) | |
HDMI | ||
Analog R-L (XLR) | ||
Analog R-L (3.5mm) | ||
Video Encoding | Maximum Video | 1920x1080P@60 1280x720P@60 |
Pre-process | De-interlace, noise filter | |
Encoding Format | H.265/HEVC H.264/MPEG4-AVC | |
Compress performance | 1080P60 1Mbps | |
Encoding Delay | less than 160ms | |
Resolution | 352x288 ~ 1920x1080 Adjustable | |
Frame Rate | 8Hz – 60Hz Adjustable | |
Encoding Profile | H.265/HEVC, H.264/AVC High Profile, Main Profile, Baseline Adjustable | |
Encoding Level | H.265/HEVC, H.264/AVC Level 1.0~ 4.1 Adjustable | |
Bit rate | 100kbps ~ 20Mbps Adjustable | |
Bit rate mode | CBR/VBR | |
GOP Structure | I IP IBP IBBP IBBBP | |
GOP Length | Ajustable | |
Audio Encoding | Sample length | 24 bit |
Sample Rate | 32KHz 44.1KHz 48KHz | |
Track | Stereo Mono-L Mono-R | |
Compress STD | AAC | |
Bitrate | 30Kbps ~ 384Kbps | |
Output | Interface | RJ45 10/100/1000Mbps |
Stream Protocol
| TS Over UDP/HTTP、FLV Over HTTP | |
RTSP/RTP, | ||
RTMP | ||
HLS | ||
SRT optional | ||
Two-way voice | Input | 3.5mm microphone input |
Output | 3.5mm headphone output | |
Management | Front Panel | 7 Keys + LCD indicator |
Network | Web-NMS | |
General | Weight | 3 KG |
Size | 1U standard | |
Power | AC 110V~ 220V 50/60Hz | |
Consumption | 10W |
