HP801E
CatCast
8543709990

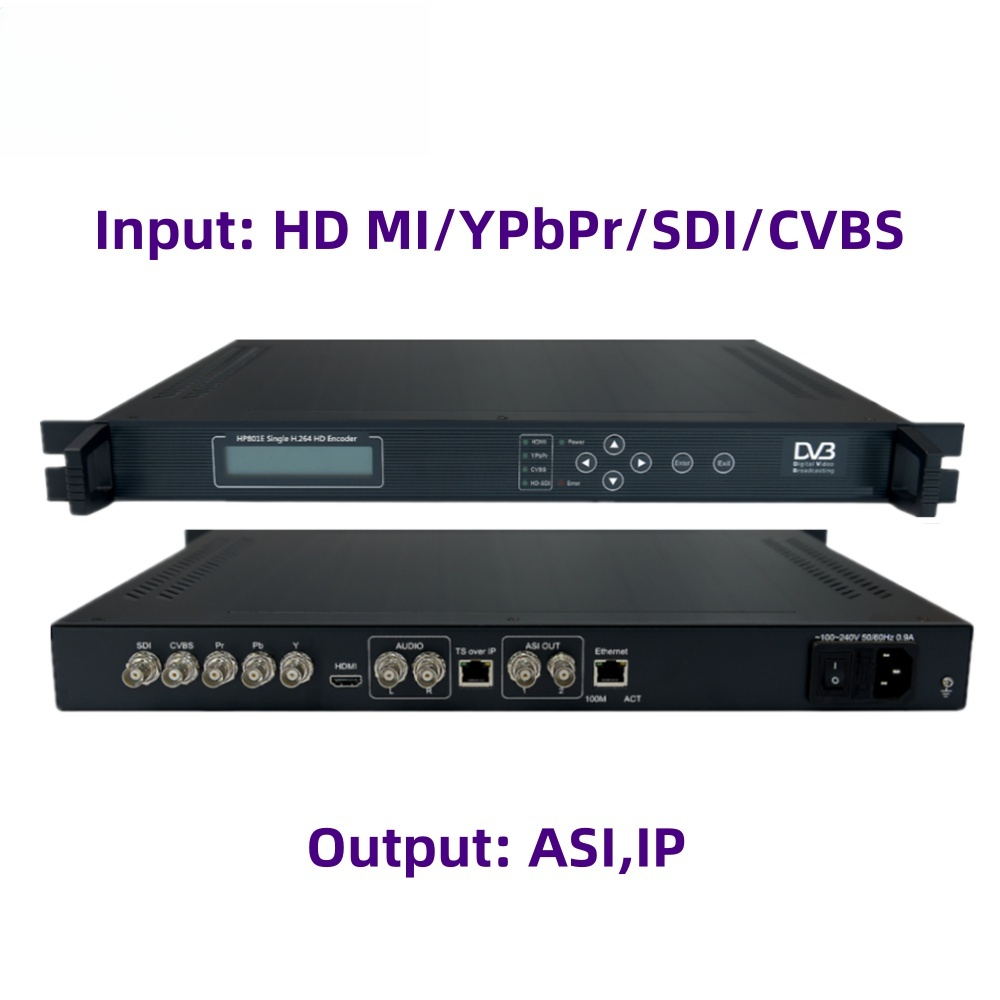

HP801E Single HD MPEG-4 Avc/H. 264 Encoder with ASI, IP output
HP801E Single Channel MPEG-4 AVC/H.264 high definition (HD) encoder is a userfriendly, powerful encoder with multiservice capability,flexibly delivering multiple full and low resolution services to a range of devices.It supports multiple HD formats including 1080i/p, 720p.
Besides it supports TS (UDP) over IP output, combined with SDI/CVBS inputs. Definitely, it conforms to the H.264 standard from the ITU.
Features
u Low bit rate
u H.264 compression
u ASI x2 and 100M IP output
u SDI and CVBS inputs
u Support HDCP
u Support multiple HD formats including 1080p/i, 720p
u LCD/NMS management
u H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm
Technical Specification
Input | SD CVBS | BNC interface |
| Audio | 1 pair of unbalanced audio, BNC interface | |
| HD SDI | BNC interface | |
| HD HDMI | High Definition Multimedia Interface | |
| HD YPbPr | BNC interface | |
Video Coding | 4:2:0 encoding H.264 HP@L4 MP@L3 | |
| H.264 Adaptive Field Frame (AFF) | ||
| H.264 Field-Based (FB) | ||
| full HD: 1920×1080×60i/p, 1920×1080×50i/p, 1280×720×60p/50p, 720×480×60i (NTSC), 720×576×50i (PAL) | ||
| Standard | ISO/IEC14496-10 (H.264/MPEG-4 AVC) | |
Audio Coding | Bit Rate | 128, 160, 192, 224, 256, 320, 384Kbps |
| Property | MPEG-1 Layer2 | |
Output | 2×ASI | TS DVB standard, BNC interface |
| IP | IP/UDP (TS over IP), Unicast/Multicast | |
| Output Bit Rate | 1 to 20Mbps (4:2:0) | |
| Control | NMS (Ethernet port, RJ-45), Keyboard + LCD | |
General Features | Size | 482mm×280mm×44mm |
| Temperature Range | 0~45°C (Operation); -20~80°C (Storage) | |
| Power | 100-240VAC, 50Hz, 25W | |
