HPR8401L
Catcast

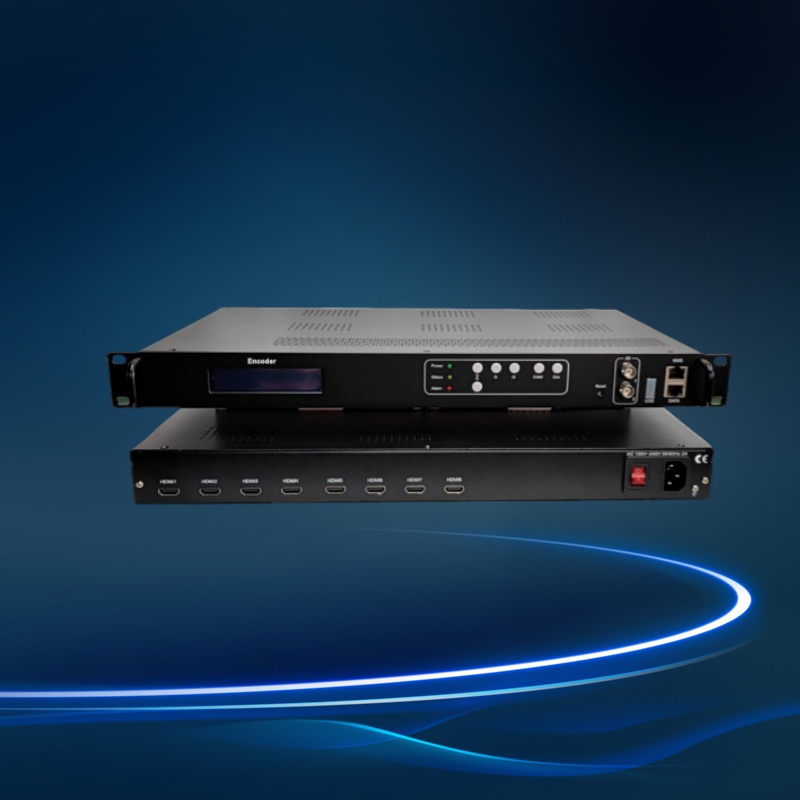

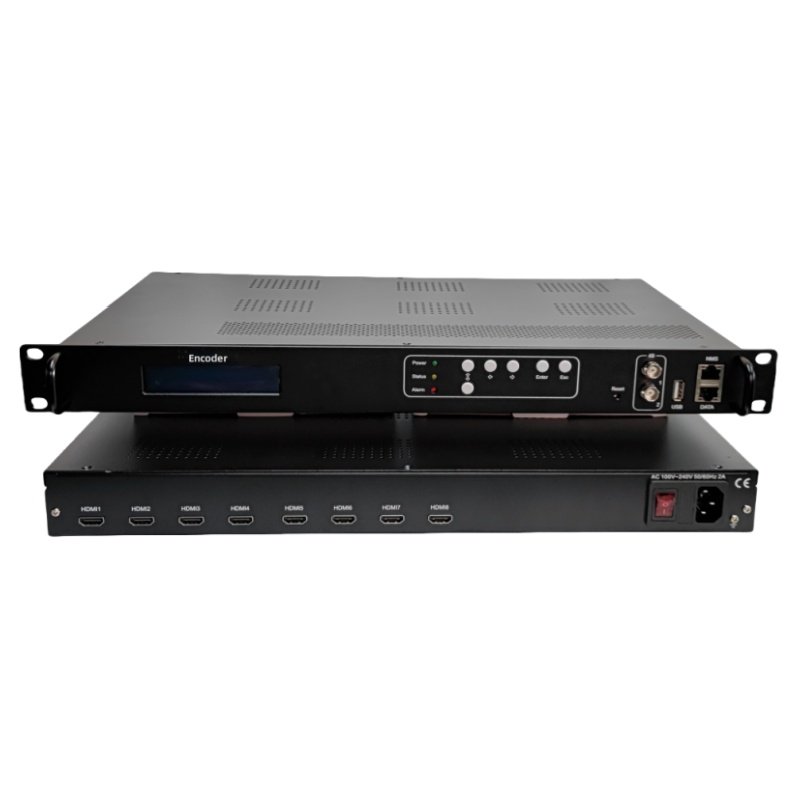

HPR8401L Cable TV digital headend Encoder HDMI MPEG4 IP Multicast Encoder
Product Overview
HPR8401L is Catcast’s professional high integration device which includes encoding, multiplexing. It supports 4/8 HDMI input, MPEG-4 AVC/H.264 encoding, IP (MPTS&SPTS) output, ASI output is optional. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, IPTV head-end, digital TV broadcasting, etc.
Key Features
Support QR code, LOGO, OSD insertion for every local channel
4/8 HDMI input, support HDCP
MPEG-4AVC/H.264 Video encoding
IP output over UDP and RTP protocol, support unicast and multicast
ASI output is optional
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD、key function
Control via web management, and easy updates via web
Technical Specification
Input | 4/8 HDMI input, support HDCP | |
Output | IP output（4/8 SPTS and 1MPTS）1000M UDP and RTP protocol Support unicast and multicast ASI output is optional | |
Video | Encoding | MPEG-4 AVC/H.264 |
Resolution | Input:1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | |
Output:1920×1080_60P, 1920×1080_50P, 1280×720_60P, 1280×720_50P, 720×576_50P,720×480_60P, 1920×1080_30P,1920×1080_25P, 1280×720_30P,1280×720_25P, 720x576_25P,720x480_30P | ||
Bit-rate | 1Mbps~13Mbps（each channel) | |
Rate Control | CBR | |
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC v1&v2 |
Sampling rate | 44.1KHz and 48Khz | |
Bit-rate | 64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps | |
Resolution | 24-bit | |
Audio Gain | 0-255 Adjustable | |
Multiplexing | Maximum PID Remapping | 180 output PIDs per channel |
Function | PID remapping ( automatically or manually) | |
Accurate PCR adjusting | ||
System function | Network management(WEB) | |
Chinese and English language | ||
Ethernet software upgrade | ||
Miscellaneous | Dimension (W×L×H) | 440mm×270mm×40mm |
weight | 6kg | |
Environment | 0~45℃(work)；-20~80℃(storage) | |
Power requirements | AC100~240V，50/60Hz | |
