HP824LX
Catcast

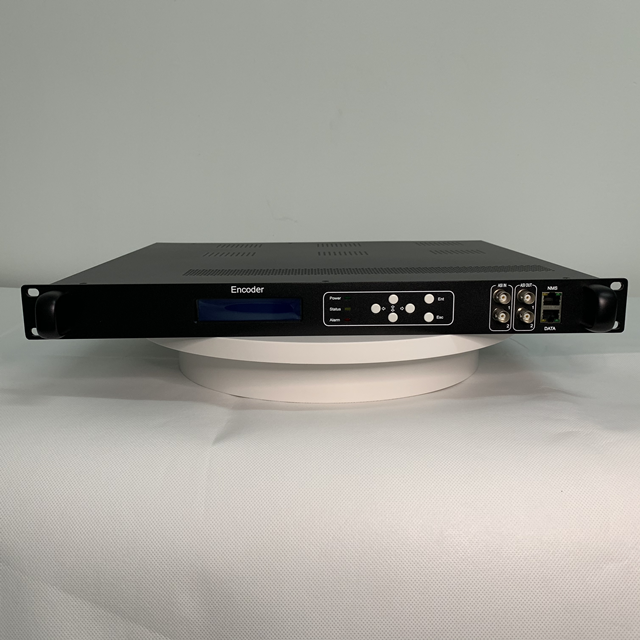

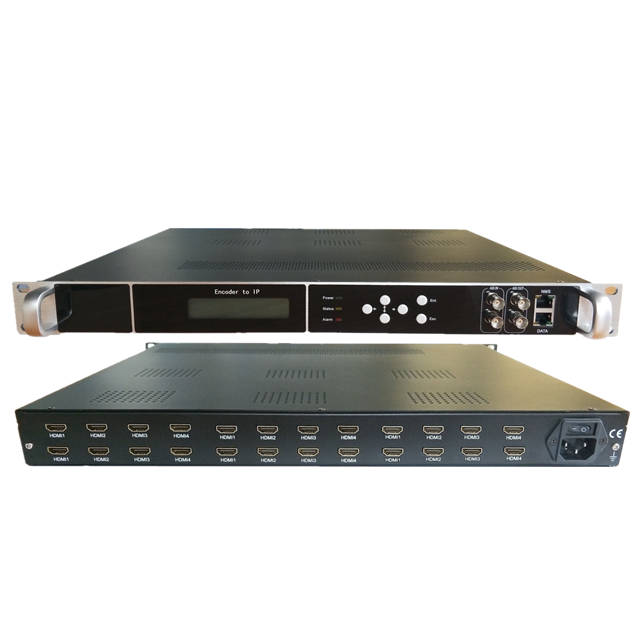

HP824LX 24 Channels HDMI to IP Encoder
Product Overview
HP824LX is a professional high-integration device that includes encoding, multiplexing. It supports 4/8/12/16/20/24 HDMI input, 1000M IP output (MPTS and SPTS output)。In conclusion, its highly integrated and cost-effective design makes the device widely used in a variety of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, etc.
Key Features
4/8/12/16/20/24 HDMI input, MPEG-4 AVC/H.264 Video encoding
4/8/12/16/20/24× HDMI inputs with 4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol
2 ASI inputs
2 ASI Independent output (optional) as copy of 4MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
LCD、key function
Control via web management, and easy updates via web
Specification
input | HDMI(4/8/12/16/20/24 HDMI) | |
2 ASI inputs | ||
output | 2 ASI output | |
IP output:4/8/12/16/20/24× HDMI inputs with 4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol | ||
video | Encoding | MPEG-4 AVC/H.264 |
Resolution | Input:1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | |
Output:1920×1080_30P,1920×1080_25P,1280×720_30P,1280×720_25P,720x576_25P,720x480_30P | ||
Bit-rate | 1Mbps~13Mbps（each channel) | |
Rate Control | CBR | |
Audio | Encoding | MPEG1 Layer2 |
Sampling rate | 44.1KHz and 48Khz | |
Bit-rate | 64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps | |
Resolution | 24-bit | |
Audio Gain | 0-255 Adjustable | |
Multiplexing | Maximum PID Remapping | 180 output pids per channel |
Function | PID remapping ( automatically or manually) | |
Accurate PCR adjusting | ||
System function | Network management(WEB) | |
Chinese and English language | ||
Ethernet software upgrade | ||
Miscellaneous
| Dimension(W×L×H) | 482mm×410mm×44mm |
weight | 8kg | |
Environment | 0~45℃(work)；-20~80℃(storage) | |
Power requirements | AC100~240V，50/60Hz | |
