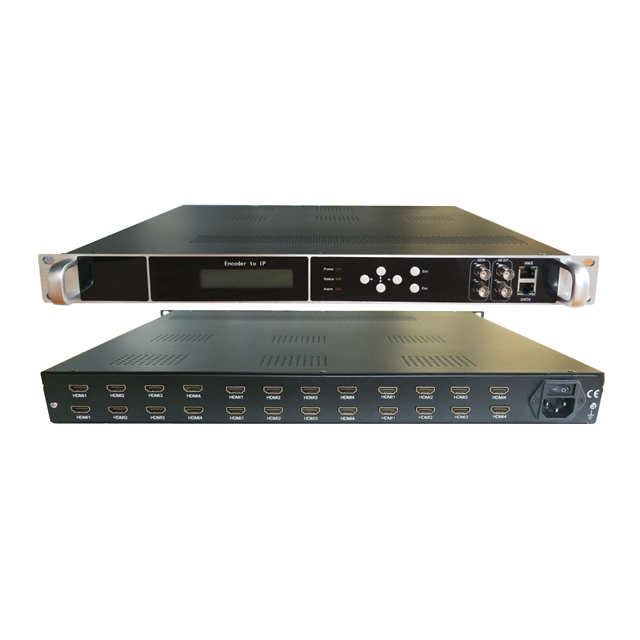

HP824UX 24 Channels HDMI HEVC H.265 H.264 ASI IP Encoder

HP824UX is a professional high integration device which includes encoding, multiplexing. It supports 4/8/12/16/20/24 HDMI input, HEVC/H.265 & MPEG-4 AVC/H.264 encoding, 2 ASI input, IP input, ASI output, IP stream output ( SPTS/MPTS, multicast/unicast). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as IPTV live streaming multicast, cable TV digital head-end, digital TV broadcasting etc.
Availability:
Quantity:

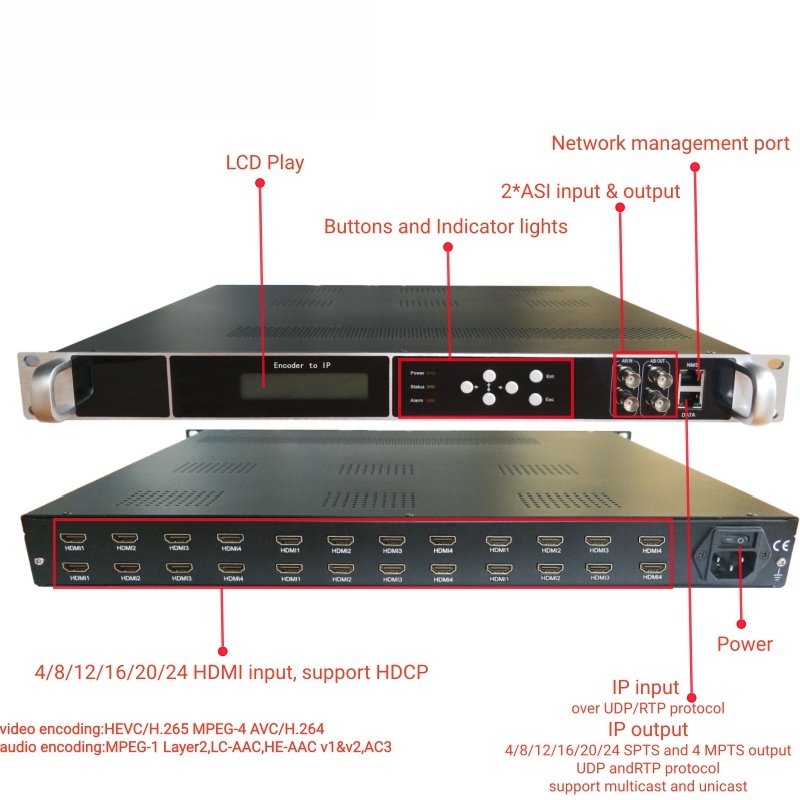

HP824UX 24 Channels HDMI HEVC H.265 H.264 ASI IP Encoder


Product Overview

HP824UX is a professional high integration device which includes encoding, multiplexing. It supports 4/8/12/16/20/24 HDMI input,  HEVC/H.265 & MPEG-4 AVC/H.264 encoding, 2 ASI input, IP input, ASI output, IP stream output ( SPTS/MPTS, multicast/unicast).

In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as IPTV live streaming multicast, cable TV digital head-end, digital TV broadcasting etc.


Key Features

Support QR code, LOGO, OSD insertion for every local channel

4/8/12/16/20/24 HDMI input, support HDCP

Support HEVC/H.265, MPEG-4 AVC/H.264 Video encoding

Support MPEG1 Layer2, LC-AAC, HE-AAC v1&v2, AC3 audio encoding

4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol, support multicast and unicast

2 ASI inputs

2 ASI Independent output (optional) as copy of 4MPTS

Support “Null PKT Filter” function

Support PID Remapping/ PCR accurate adjusting

LCD、key function

Control via web management, and easy updates via web


Specification

Input

4/8/12/16/20/24 HDMI  (support HDCP)

2 ASI input

IP input over UDP/RTP protocol,  1000M

Output

2 ASI output

IP output: 4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and RTP protocol, support multicast and unicast

Video

Encoding

HEVC/H.265, MPEG-4 AVC/H.264

Resolution

Input:

1920×1080_60P, 1920×1080_60i,

1920×1080_50P, 1920×1080_50i,

1280×720_60P, 1280×720_50P,

720×576_50i,720×480_60i,

Output:

1920×1080_60P, 1920×1080_50P,

1280×720_60P, 1280×720_50P,

720×576_50P, 720×480_60P

1920×1080_30P,1920×1080_25P,

1280×720_30P,1280×720_25P,

720x576_25P,720x480_30P

Bit-rate

1Mbps~15Mbpseach channel)

Rate Control

CBR

Audio

Encoding

MPEG-1 Layer 2, LC-AAC, HE-AAC v1&v2, AC3

Sampling rate

48Khz

Bit-rate

64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps

Resolution

24-bit

Audio Gain

0-255 Adjustable

Multiplexing

Maximum PID Remapping

180 output PIDS per channel

Function

PID remapping ( automatically or manually)

Accurate PCR adjusting

System function

Network management(WEB)

Chinese and English language

Ethernet software upgrade

Miscellaneous









Dimension

(W×L×H)

482mm×410mm×44mm

weight

8kg

Environment

0~45℃(work)-20~80℃(storage)

Power requirements

AC100~240V50/60Hz
