HEP200
CATCAST

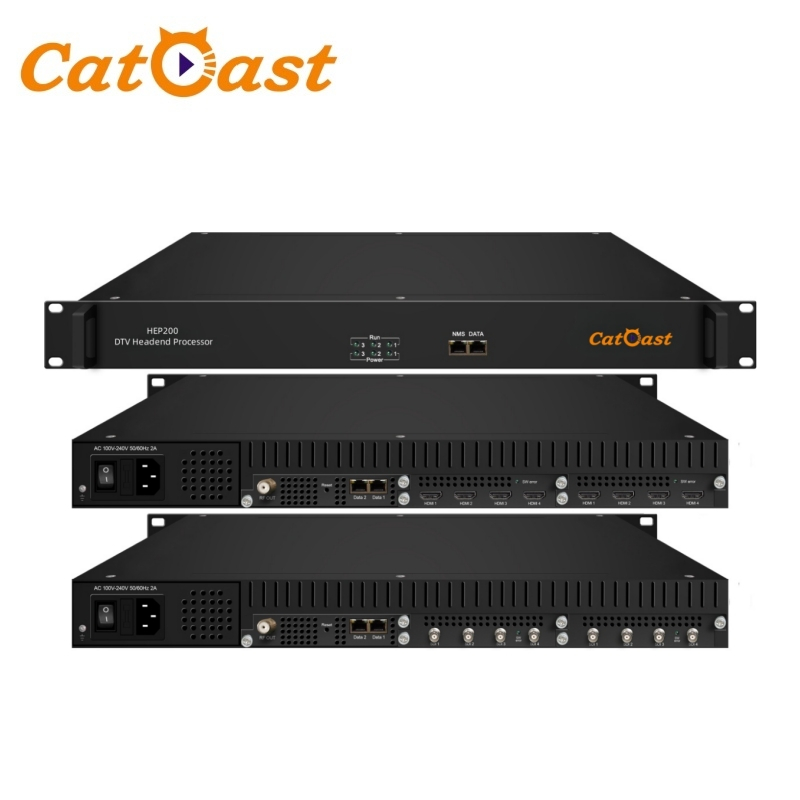

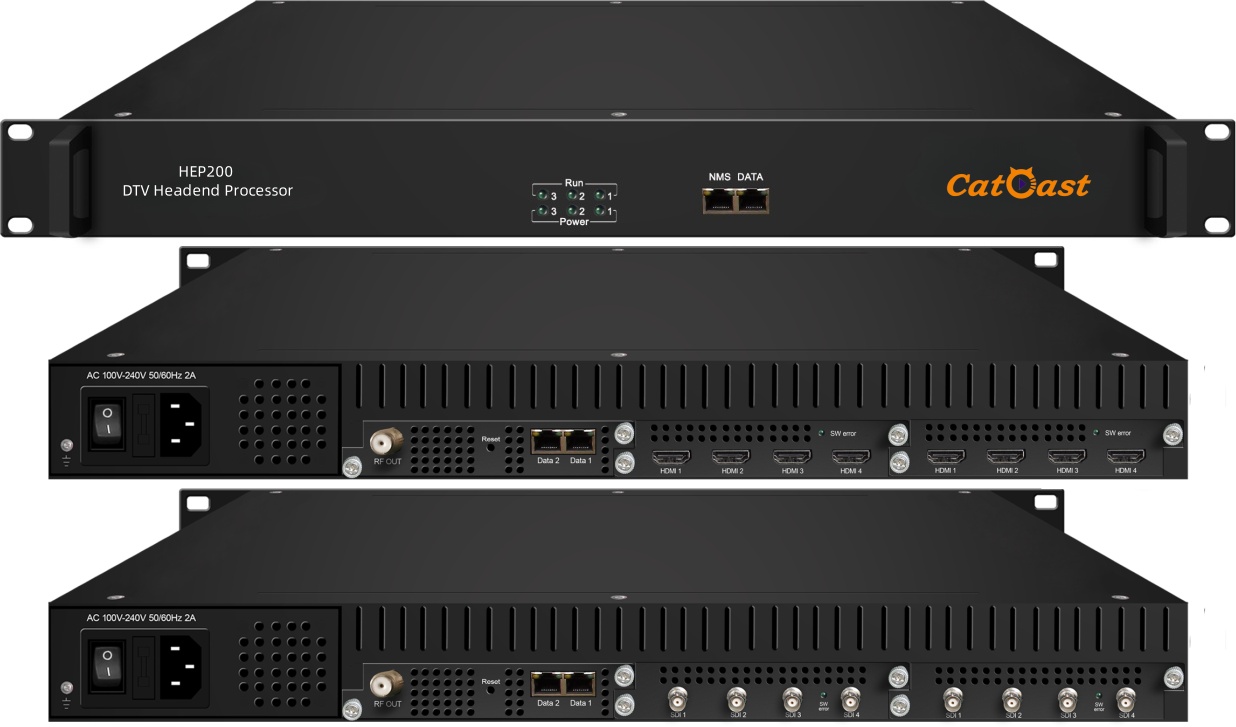

HEP200 4×SDI/HDMI To RF Encoder Modulator DVB-C/DVB-T/ATSC/ISDB-T RF Output
Product Outline
HEP200 DTV head-end processor is the newest generation of professional head-end processing equipment. This 1-U case comes with 3 independent module slots, and it can be combined with different modules as your head-end system according to your operation requirements. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing. HEP200 head-end processor brings a whole new level of intelligence and high performance to the network at a cost effective price.
Key Features
* Modularized plug-in design, 1U chassis and 3 slots
* Support flexible combination of any different type of modules
* HDMI input (1.4), HDCP 1.4; SDI input---Optional
* Support HEVC /H.265 and MPEG 4 AVC/H.264 video encoding
* Support IBBP GOP structure
* News Channel/Movies:1Mbps full HD; Sports Channel: 2 Mbps full HD
* Ultra low bit rate: save 75% bandwidth
* Support DVB-C/DVB-T/ATSC/ISDB-T Modulating
* Maximum 800M data processing
* Support 1 GE bi-direction(Data port), RJ45 interface
* Support Web management, Update via web

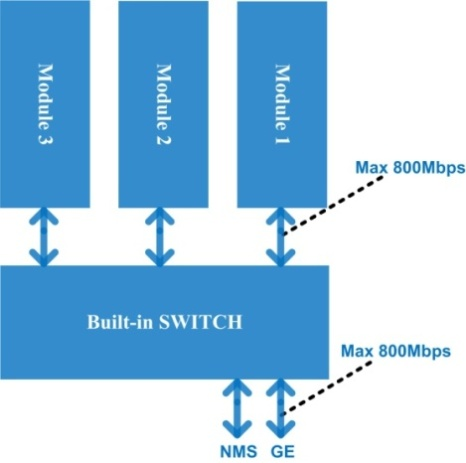

Principle Chart

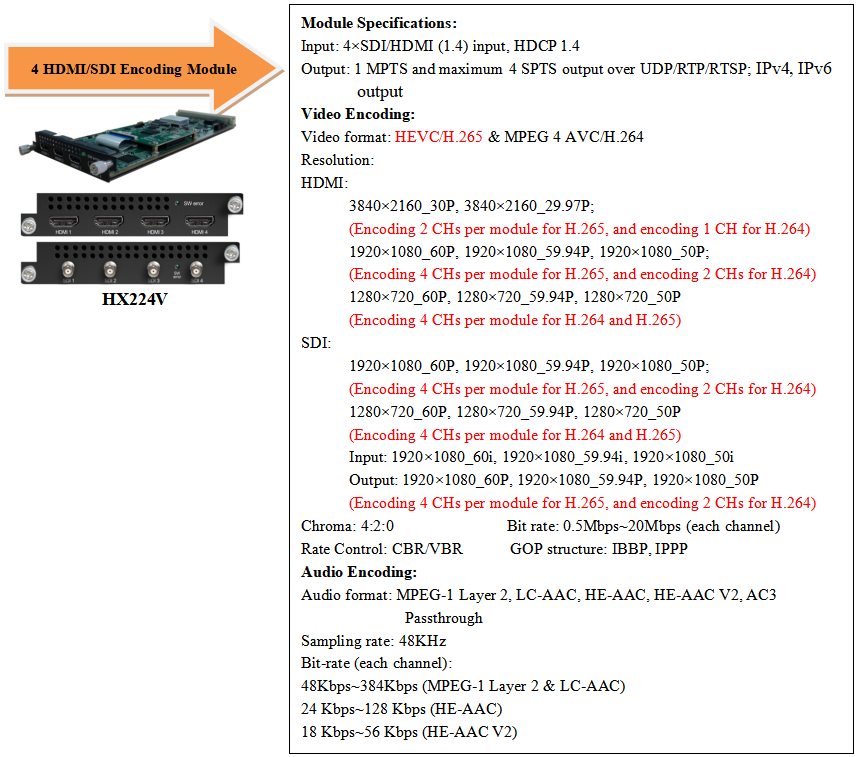

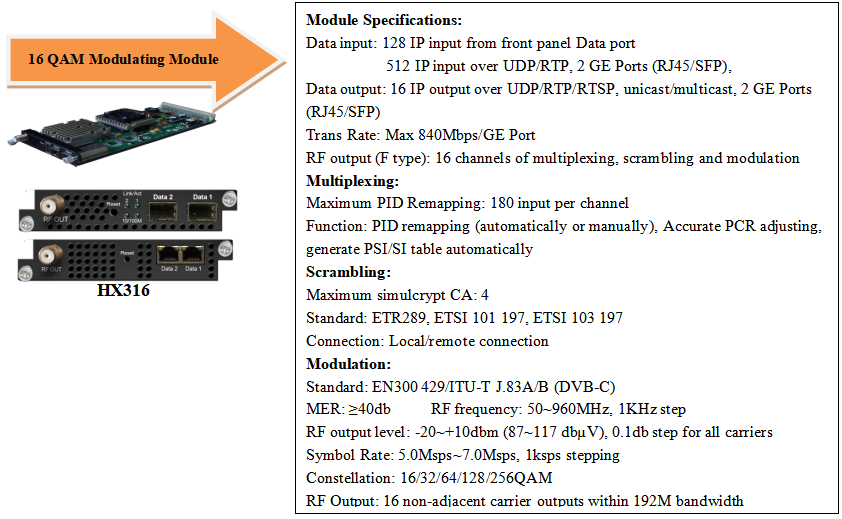

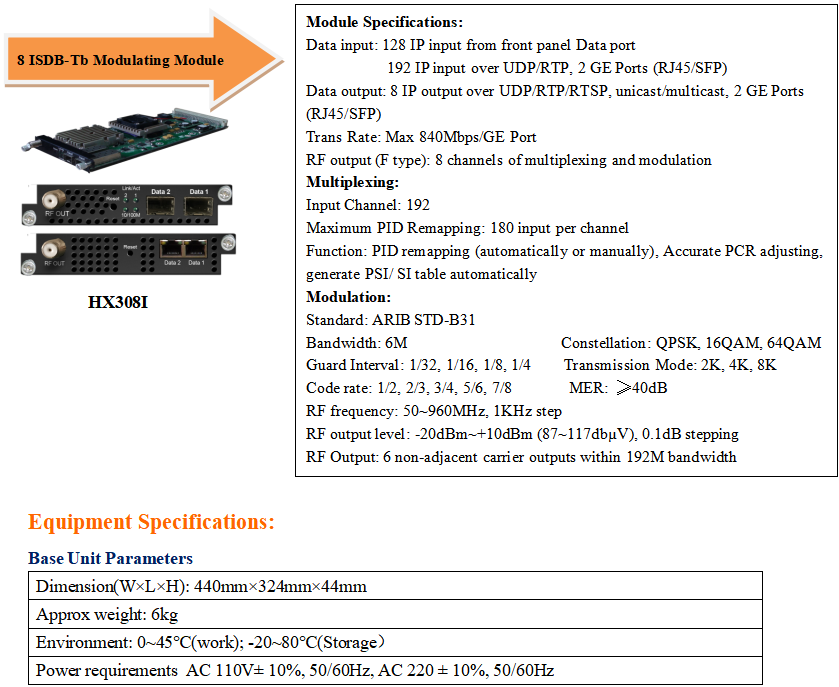

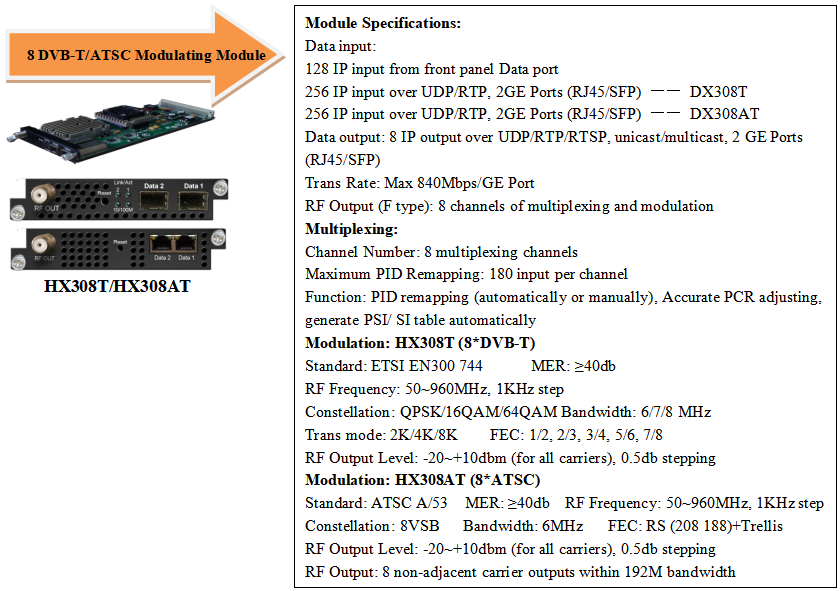

Technical specification
HEP200 4×SDI/HDMI To RF Encoder Modulator DVB-C/DVB-T/ATSC/ISDB-T RF Output
Product Outline
HEP200 DTV head-end processor is the newest generation of professional head-end processing equipment. This 1-U case comes with 3 independent module slots, and it can be combined with different modules as your head-end system according to your operation requirements. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing. HEP200 head-end processor brings a whole new level of intelligence and high performance to the network at a cost effective price.
Key Features
* Modularized plug-in design, 1U chassis and 3 slots
* Support flexible combination of any different type of modules
* HDMI input (1.4), HDCP 1.4; SDI input---Optional
* Support HEVC /H.265 and MPEG 4 AVC/H.264 video encoding
* Support IBBP GOP structure
* News Channel/Movies:1Mbps full HD; Sports Channel: 2 Mbps full HD
* Ultra low bit rate: save 75% bandwidth
* Support DVB-C/DVB-T/ATSC/ISDB-T Modulating
* Maximum 800M data processing
* Support 1 GE bi-direction(Data port), RJ45 interface
* Support Web management, Update via web
Principle Chart
Technical specification
