HA86E 2U Series High Power Er/Yb Doped Fiber Amplifier

Share to:

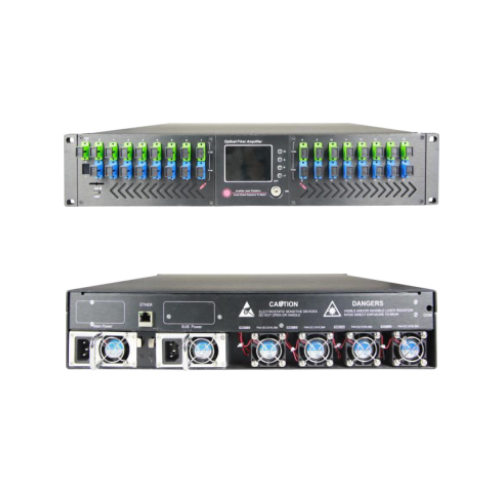

HA86E 2U Series High Power Er/Yb Doped Fiber Amplifier

Performance characteristics

 Adopts world top brand pump lasers and the OFS fiber of United States, advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.

 Perfect APC, ACC, ATC control, users use in different networks, good ventilation design
and temperature-controlled fan, ensure the long life and high reliability of PUMP laser.

 Using digital control chip, remote or local output power adjustable.

 Excellent protection circuit design, with light detection, optical return loss monitoring. Great protection of lasers and light path safety.  Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.

 Demultiplexer for 1310/1490/1860nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB);
 The total output optical power is optional: 2-10W (33-40dBm);
 The front panel can be removed and replaced flexibly according to the number of output ports; Can add a built-in optical switch module to facilitate the expansion of the device function; Cooling fan supports online replacement;
 The front panel LCD provides the operating parameters and alarms of the entire unit. RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.

Availability:

Quantity:



Inquire Add to Basket

Model:
HA86E
Brand:
Catcast
PDF:
HA86E EDFA 2U Series High Power ErYb Doped Fiber Amplifier.pdf

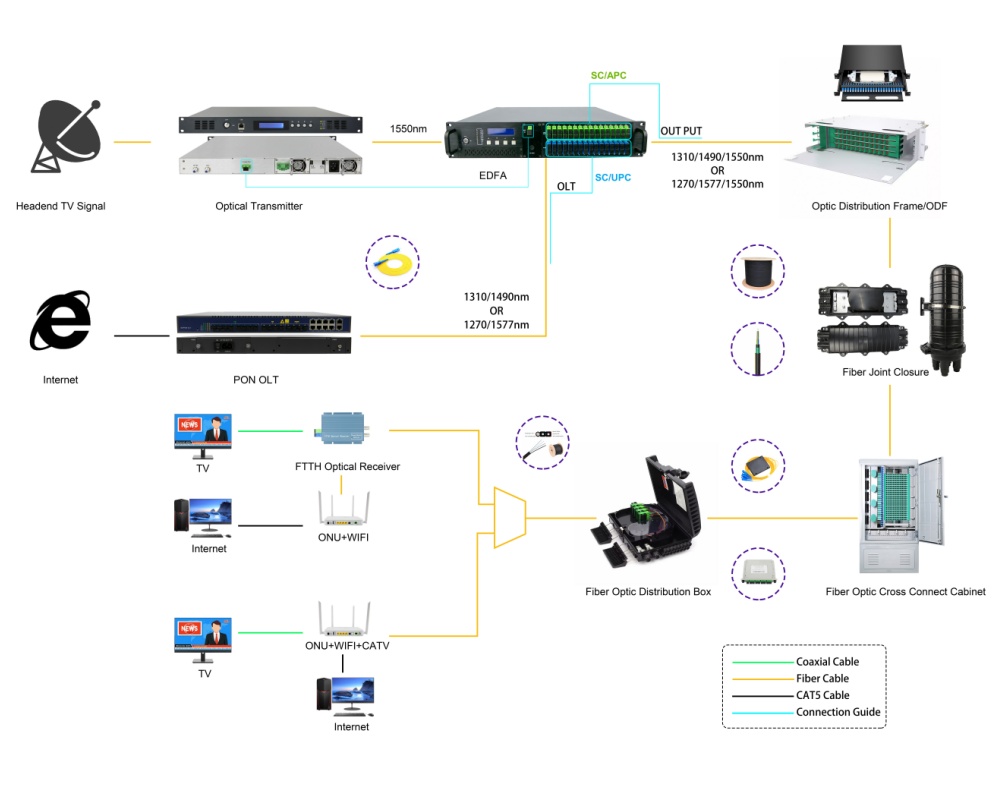

Product Description

Limit parameter

Technical parameters	HA86Exx
Max wavelength	1535-1865nm
Minimum input power	-10dBm
Max input power	+10dBm
Limited working temperature	-25℃ ~+70℃
Limited working voltage	AC90~265V&DC30~72V&DC30~72V

Technical parameters

Technical parameters	HA86Exx
Wavelength	1535-1865nm
Input power	-5dBm~+10dBm（normal input -2dBm~+5dBm）
Output power	33dBm~40dBm（WDM -1dBm）
Output port	SC: 16/32/64；LC: 32/64/128
Each output power	10~23dBm or customized
Noise	＜ 5.0dB（Pin=0dB）
Polarization dependence loss (PDL)	＜ 0.3dB
Polarization dependence gain (PDG)	＜ 0.4dB
Polarization mode dispersion (PMD)	＜ 0.3dB
Pump leakage power	＜ -30dBm

Echo loss	≥ 86dB
Optical connector	SC/APC&SC/UPC&LC/APC&LC/UPC
Supply voltage	220V(AC90V~265V)&110V(AC90V-130V)&48V(DC30~72V)
Consumption	≤100w
Working temperature	-5℃ ~+42℃
Storage temperature	-40℃ ~+80℃
Working relative humidity	5~95%
Product net size	465(L)480(W)89(H)

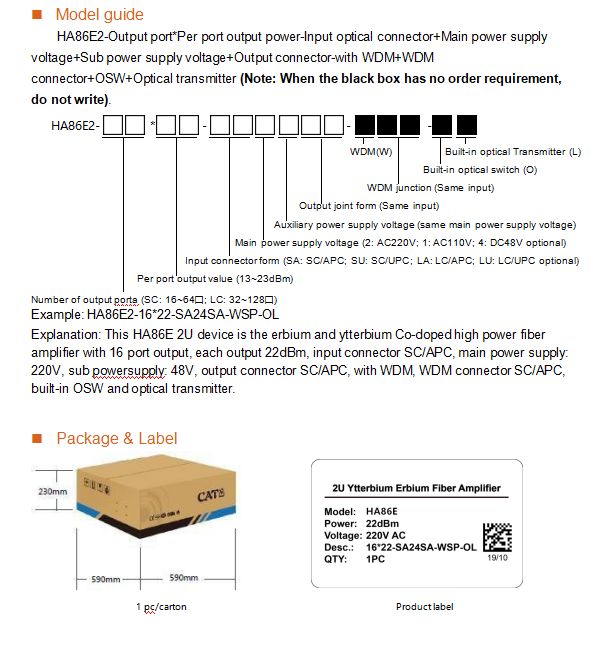

Package dimension	640(L)640(W)200(H)
