HPR6500
Catcast
8517623990
HPR6500 IP to 32/48/64 Channels NTSC PAL Analog Modulator
Outline
HPR6500 is Catcast’s high-density IP to analog RF Modulator that carry 32/48/64 non-adjacent channels in a 2U box. Browser based user interface facilitate system setup and maintenance efficiency. This outstanding headend system consume much less power than other competitors, eventually reduce operating cost and extend life cycle.
Key Features
System provides 1 GE input ports for both MPTS and SPTS video streams
Compact 2RU design with 5 cooling fans and dustproof screen
Receive up to 32/48/64 IP streams and output up to 32/48/64 channels in NTSC or PAL standard
Easy configuration and software upgrade by built-in Web GUI
Optional function on teletext and overlay
Support BISS decryption, optional

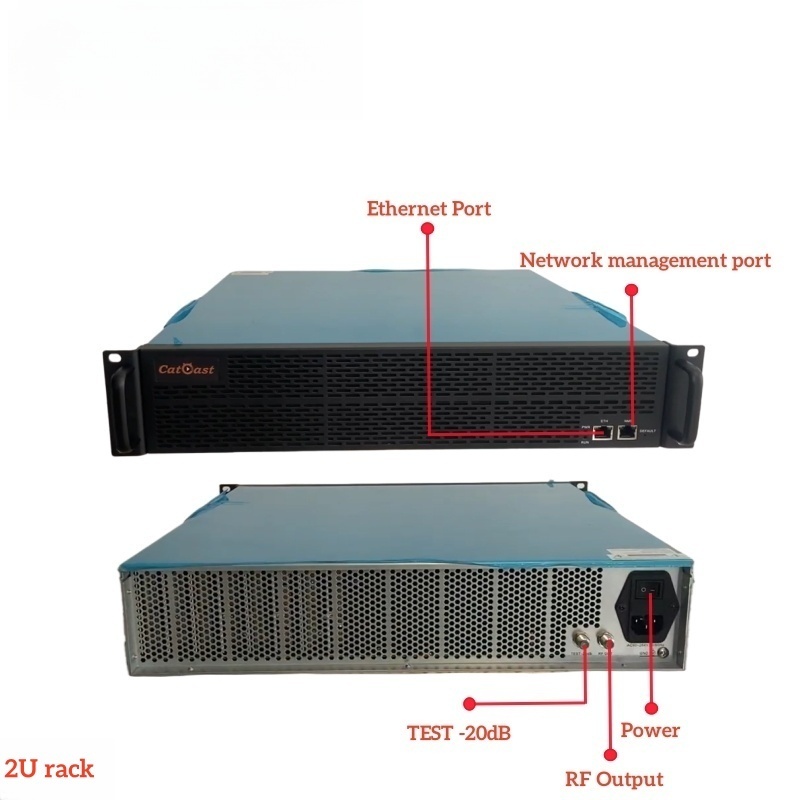

System Diagram
GE INPUT | |
Input Connector | x RJ45 (1000M) |
Transport Protocol | UDP, RTP |
Addressing | Unicast, Multicast |
MPEG Transport | SPTS, MPTS |
TS DECODING | |
Video Resolutions | Up to 1080P |
Video Form | MPEG1/2/4; H.264; H.265; AVS; AVS+; VC1 |
Audio Form | MPEG- 1 Layer I/ II/ III; WMA, AAC,AC3 |
MAX decoding stream | 32/48/64 channels,optional |
Additional capabilities | Teletext; BISS decrypt |
Aspect Ratio Control | 4:3(Letter & Box); 16:9 |
RF OUTPUT | |
Connector | F female connector |
Number of RF channels | 32/48/64, Fully agile modulated channels |
Supported Standard | NTSC, PAL BG/ DI/DK |
STD, HRC and IRC | Supported |
Output Frequency | 48 ~ 860 MHz |
Out-band Rejection | ≥ 60d B |
Flatness | -2d B per carrier |
Return Loss | 12 d B (min) |
Differential Gain | ≤ 5% |
Group Delay Response | ≤ 100nS |
2K Factor | ≤ 2% |
Output Level | ≥ 53d BmV combined* |
Adjust Range | 20d B Per 32CHs |
10d B Per CH | |
Audio Output Format | MONO |
Audio Level Adjust Range | 0 ~ 100 % |
RF Test Point | -20 d B Relative to output |
GENERAL | |
Management | NMS |
Language | English, Spanish |
Power Supply | AC 90 ~ 264 V |
Consumption | <240 W |
Approximate Weight | 32 channels: 11.46 KG |
48 channels: 12.62 KG | |
64 channels: 13.78 KG | |
Dimension | 484*435*89 (MM) |
*NOTICE: The analog output level should greater than the digital output level at 5d B, when these two signals are combined together.
