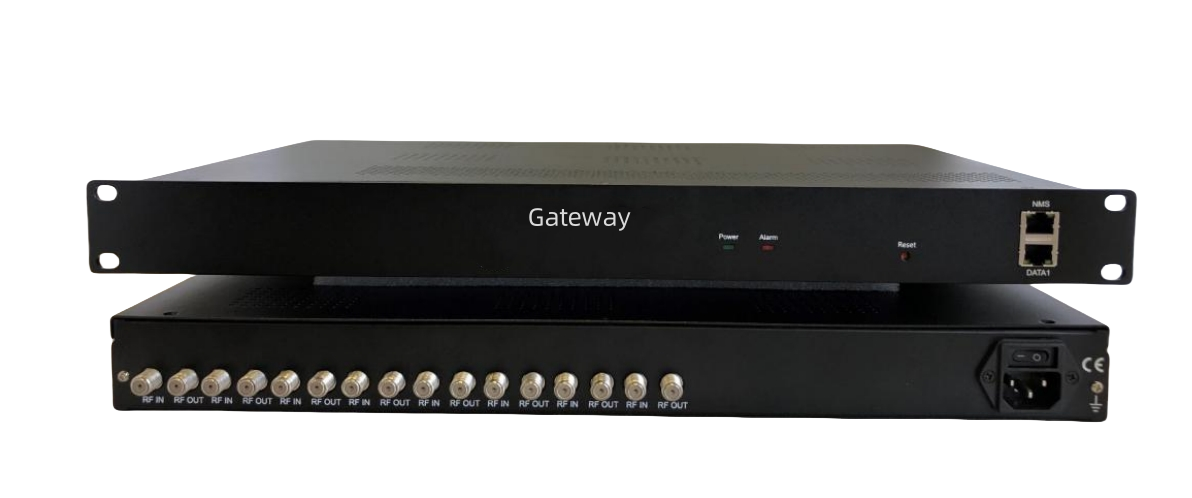

HPR8401F
Catcast

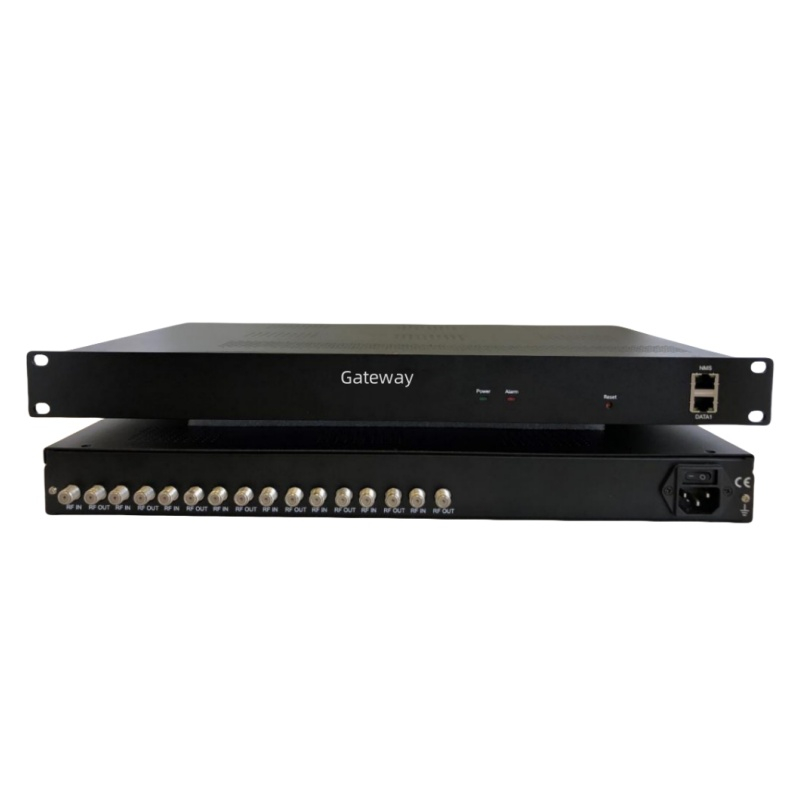

HPR8401F 8 FTA Tuner To IP Gateway
Product Overview
HPR8401F is professional high integration device which includes tuner demodulation and multiplexing. It supports 4 or 8 DVB-S2/DVB-C/ DVB-T/ATSC/DTMBT/ISDB-T FTA tuner input, 1000M IP output, 1 MPTS output and 256 SPTS output.In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, IPTV live streaming etc.
Key Features
4/8 tuner input: (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DTMBT) optional
1000M IP output over UDP and RTP protocol(MPTS and SPTS)
Support different types of tuner ( DVB-S2、DVB-C、DVB-T、ATSC、 DTMBT、ISDBT, etc. ) input, (2 ASI inputs optional).
The input program stream is multiplexed and packaged into TS stream and IP output
2 ASI Independent output (optional) as copy of 1MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD、key function
Control via web management, and easy updates via web
Technical Specification
input | 4/8 tuner; and the tuner supports (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DMBT) | |
(2 ASI inputs(optional) | ||
output | (2 ASI output optional) | |
IP output（256 SPTS and1 MPTS） IP output over UDP and RTP protocol | ||
Multiplexing | Maximum PID Remapping | 180 output pids per channel |
Function | PID remapping ( automatically or manually) | |
Accurate PCR adjusting | ||
System function | Network management(WEB) | |
Chinese and English language | ||
Ethernet software upgrade | ||
Miscellaneou s | Dimension(W ×L×H) | 550mm×515mm×140mm |
weight | 6kg | |
Environment | 0~45℃ (work)；-20~80℃(storage) | |
Power requirements | AC100~240V，50/60Hz | |
