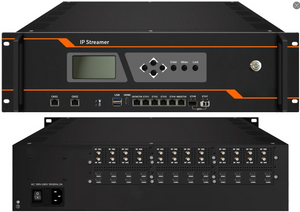

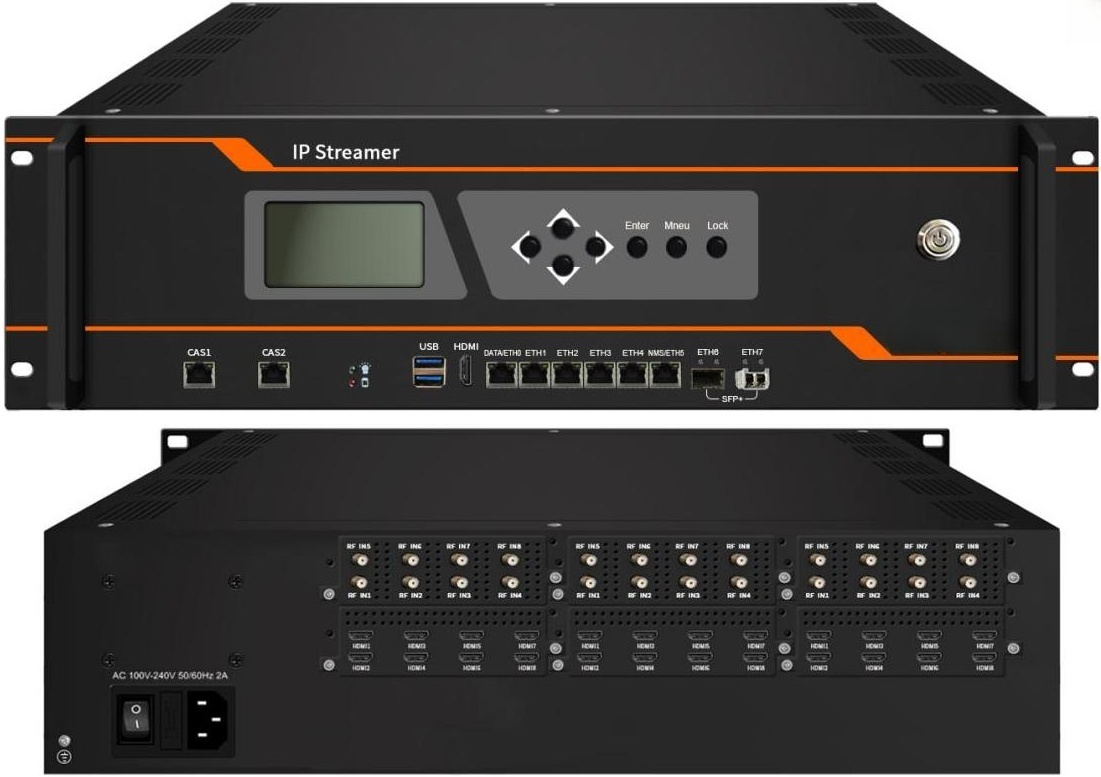

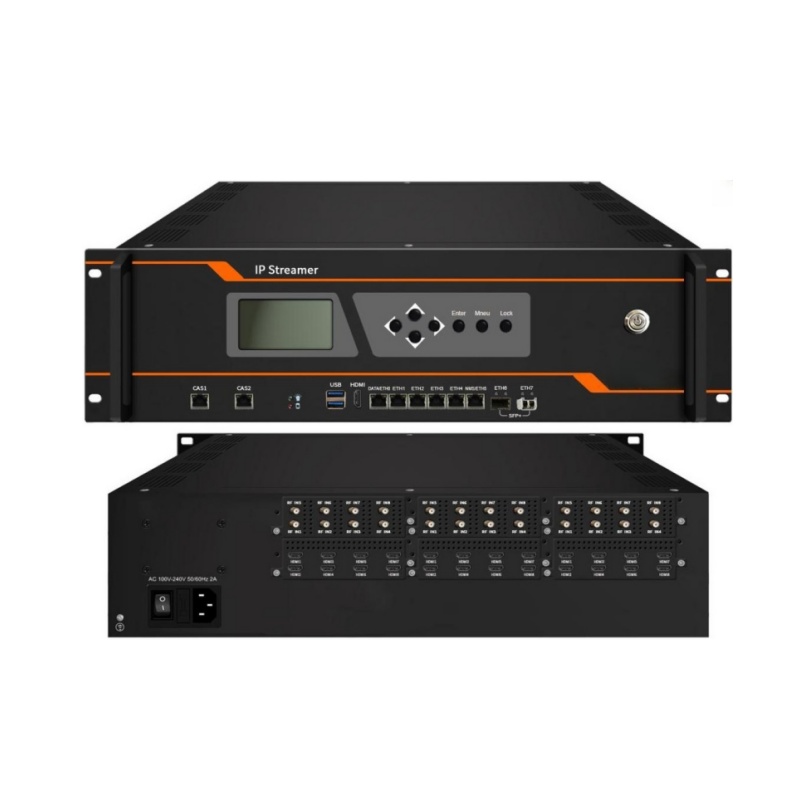

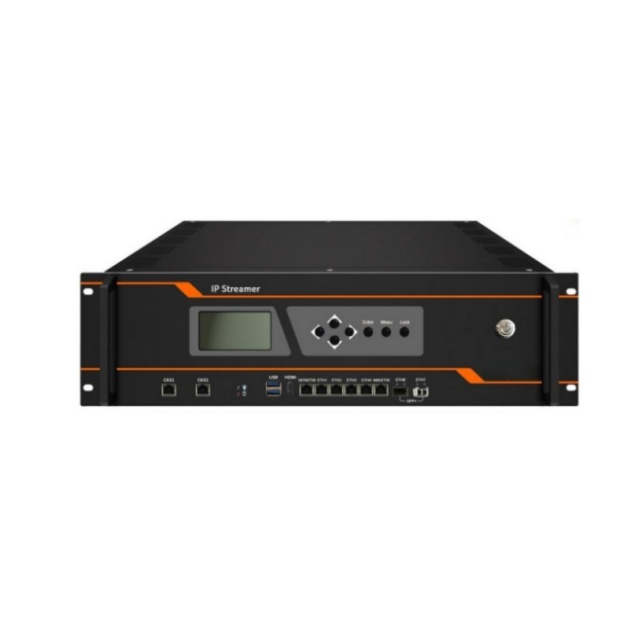

HEP100-A3 IP Streamer

Key Features

Outline

HEP100-A3 is a fexibly modularized 3U device with the features of Encoder/Receiver, IP Gateway and IPTV Server for the protocol-conversion application and IPTV-system application. It supports max 6 pluggable streamer cards embedded, such as encoder card and tuner card to receive the HDMl signals and tuner signals etc. It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP,UDP, RTP, RTSP, HLS protocol and TS files into the output IP streams over SRT, HTTP,UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with Catcast IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel,hospital and community.

Key Features

·Encoder/Receiver, IP Gateway and IPTV Server in one device

·2 separate Web GUl, one for Cards and Gateway, the other for IPTV Server

·Support uploading TS files directly in Web GUl to broadcast your own channels

·Support inter-cut feature of a live program, a TS file and a picture

·Support IP anti-jitter feature for the external IP streams

·Support downloading Catcast IPTV APK directly in the Web GUI

·Multi-level password control for your system security

·LCD/Key button for Network-Setting checking

·Modularized design, max 3 (or 6) cards embedded, a flexible option as per the actual application

·Redundancy power supply (for option)

IP Protocol Conversion

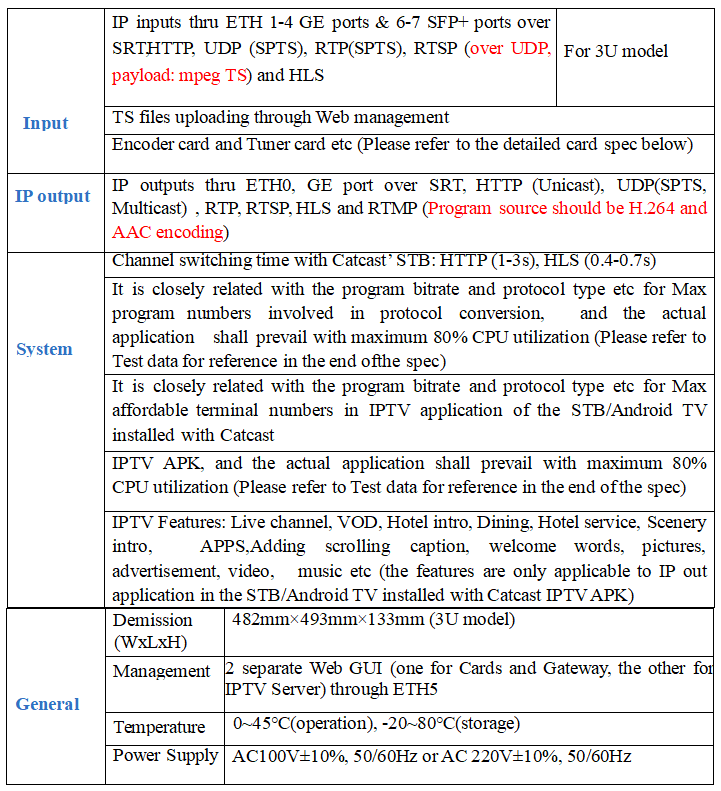

Specifications
