HEP100-A/A3 IP Streamer
Mutiple Inputs (HDMI+Tuner+IP over Multi-Protocol+TS file) + Multi-Protocol Conversion + IPTV Server

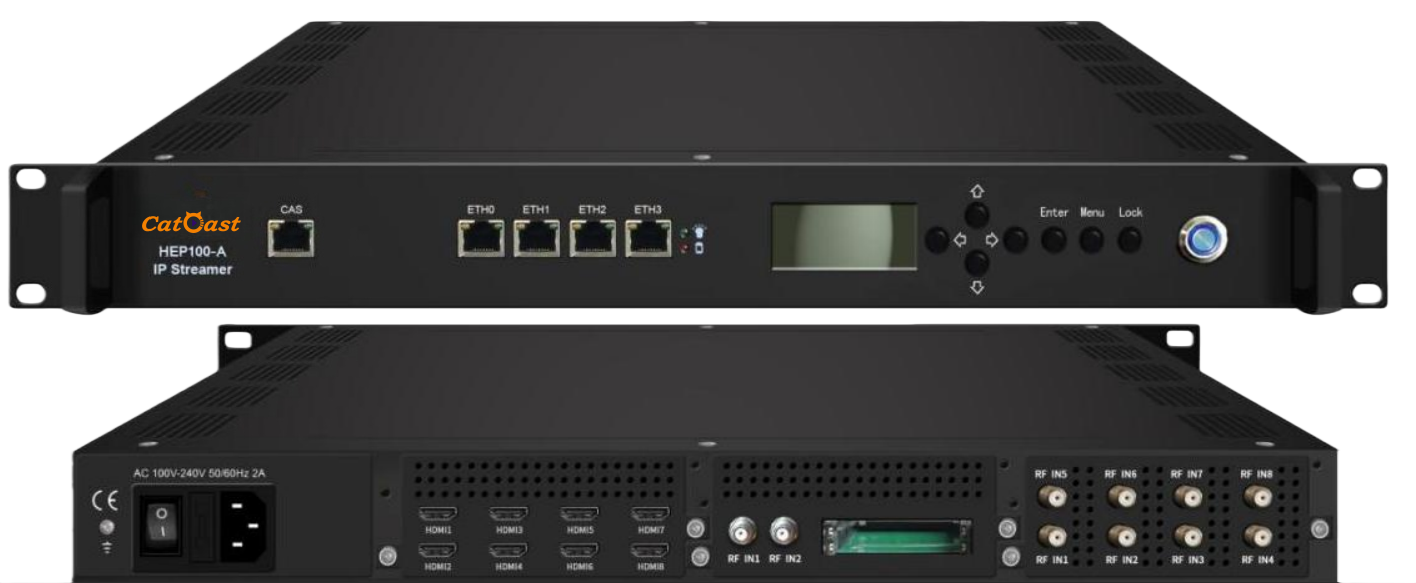

1U Chassis with 3 card slots

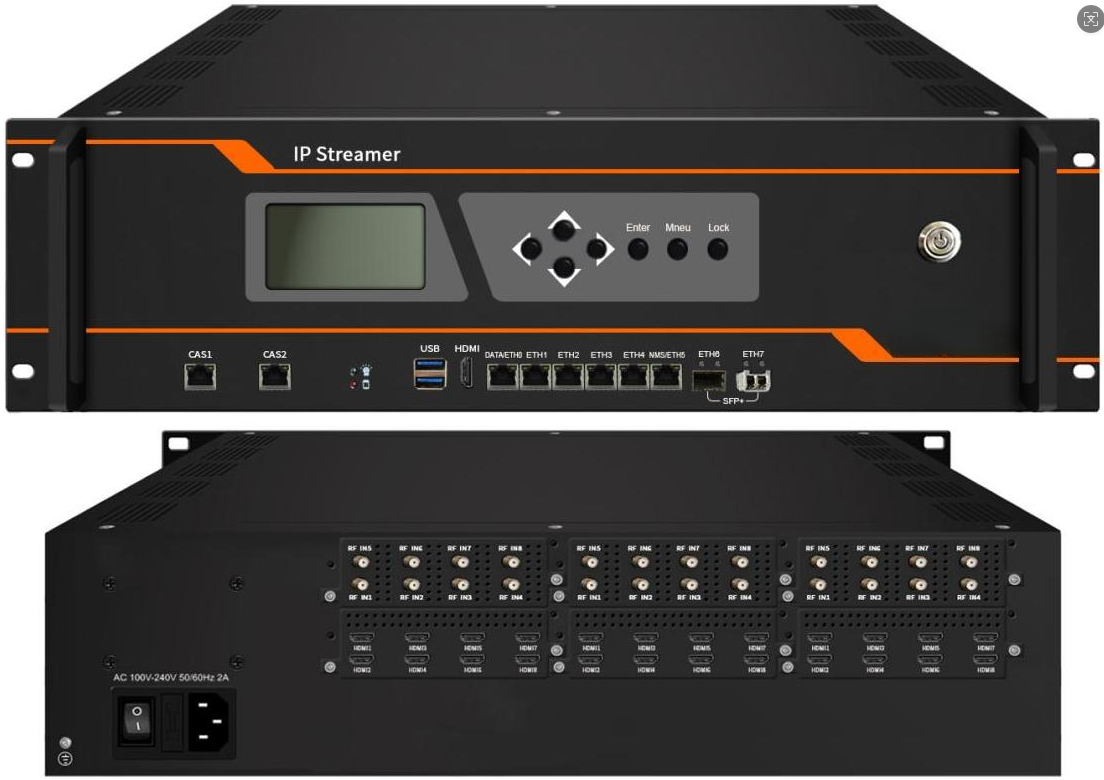

3U Chassis with 6 card slots
Application Example

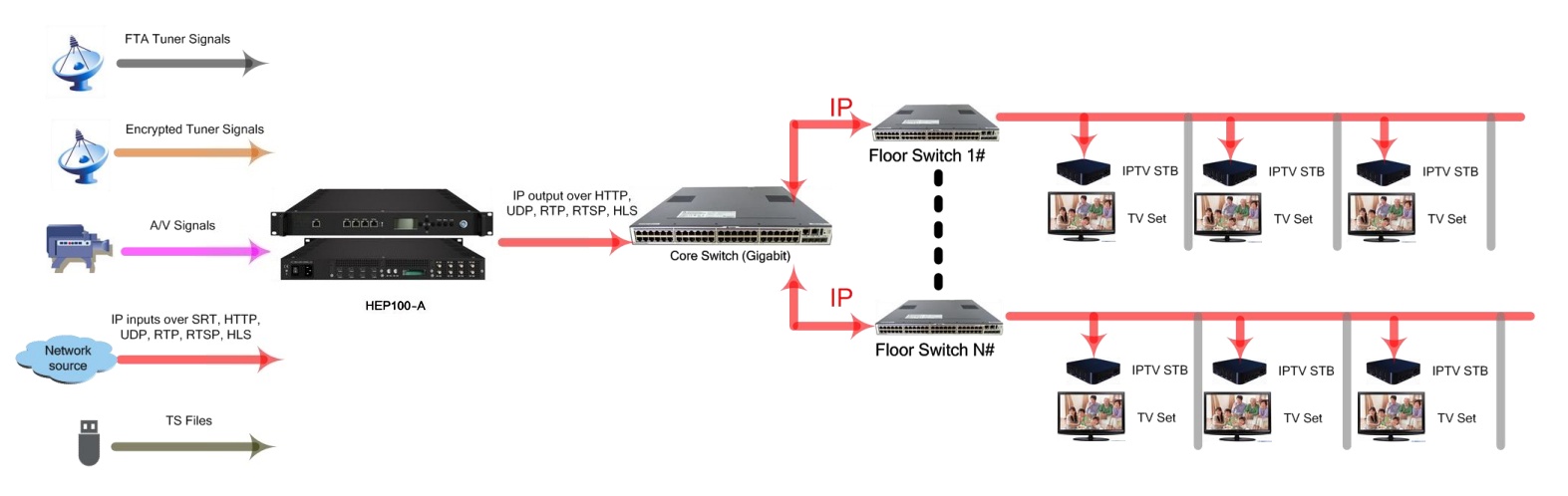

IPTV System as a Server

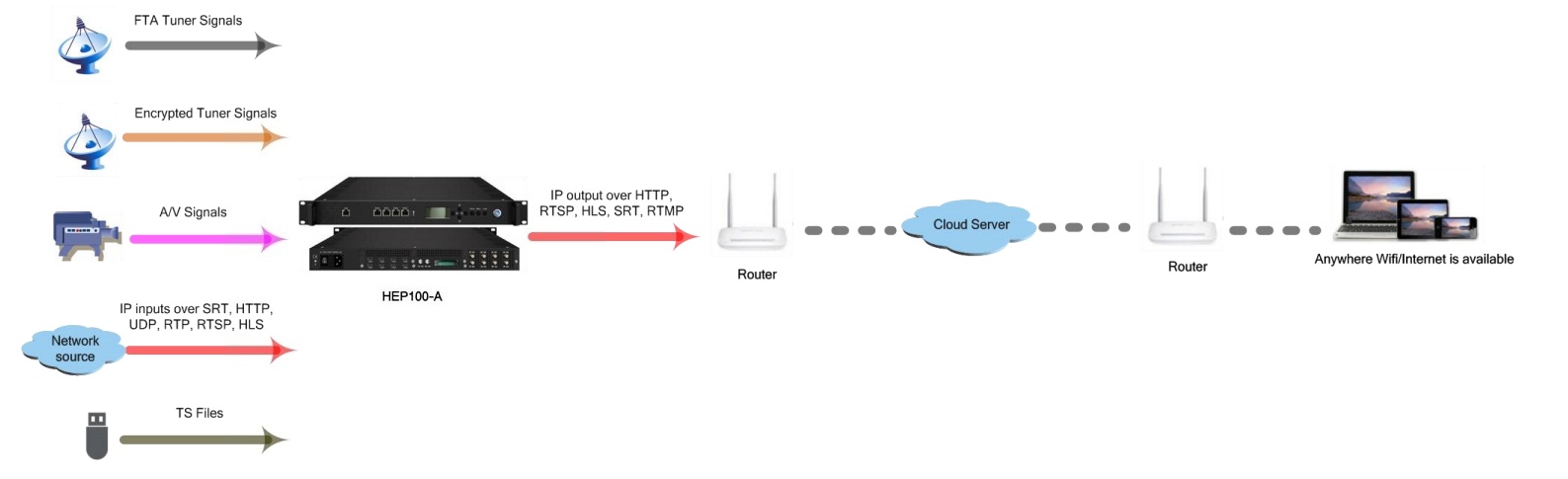

Protocol Conversion as a Streamer
Outline
HEP100-A/A3 is a fexibly modularized 1U (or 3U) device with the features of Encoder/Receiver, IP Gateway and IPTV Server for the protocol-conversion application and IPTV-system application. It supports max 3 (or 6) pluggable streamer cards embedded, such as encoder card and tuner card to receive the HDMl signals and tuner signals etc. It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP,UDP, RTP, RTSP, HLS protocol and TS files into the output IP streams over SRT, HTTP,UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with Catcast IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel,hospital and community.
Key Features
Encoder/Receiver, IP Gateway and IPTV Server in one device
2 separate Web GUl, one for Cards and Gateway, the other for IPTV Server
Support uploading TS files directly in Web GUl to broadcast your own channels
Support inter-cut feature of a live program, a TS file and a picture
Support IP anti-jitter feature for the external IP streams
Support downloading Catcast IPTV APK directly in the Web GUI
Multi-level password control for your system security
LCD/Key button for Network-Setting checking
Modularized design, max 3 (or 6) cards embedded, a flexible option as per the actual application
Redundancy power supply (for option)
IP Protocol Conversion (example)
Specifications
Input | IP inputs thru ETH 1&2, GE ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS | For 1U model | |||
IP inputs thru ETH 1-4 GE ports & 6-7 SFP+ ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS | For 3U model | ||||
TS files uploading through Web management | |||||
Encoder card and Tuner card etc (Please refer to the detailed card spec below) | |||||
IP output | IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP(SPTS, Multicast) , RTP, RTSP, HLS and RTMP (Program source should be H.264 and AAC encoding) | ||||
System | Channel switching time with Catcast’ STB: HTTP (1-3s), HLS (0.4-0.7s) | ||||
It is closely related with the program bitrate and protocol type etc for Max program numbers involved in protocol conversion, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end ofthe spec) | |||||
It is closely related with the program bitrate and protocol type etc for Max affordable terminal numbers in IPTV application of the STB/Android TV installed with Catcast | |||||
IPTV APK, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) | |||||
IPTV Features: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS,Adding scrolling caption, welcome words, pictures, advertisement, video, music etc (the features are only applicable to IP out application in the STB/Android TV installed with Catcast IPTV APK) | |||||
General | Demission (WxLxH) | 482mm×464mm×44mm (1U model) 482mm×493mm×133mm (3U model) | |||
Management | 2 separate Web GUI (one for Cards and Gateway, the other for IPTV Server) through ETH3 (3U model through ETH5) | ||||
Temperature | 0~45℃(operation), -20~80℃(storage) | ||||
Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | ||||
Order Guide (for Chassis)
Model No. | Size | Data Port | Memory | CPU | Solid-State Disk (SSD) | Mechanical Hard Disk |
HEP100-A | 1U with 3 slots | 4x 2.5GE (1G and 2.5G self-adapt) | 8G | J4105 | 240G/1T (as per order) | N/A |
HEP100-A3 | 3U with 6 slots | 2x SFP+ (1G/10G self-adapt), 6x 2.5GE (1G and 2.5G self-adapt) | 16G | i7 | 240G/1T (as per order) | 4T/8T (as per order) |
Available Card Specification (more available cards later for development)

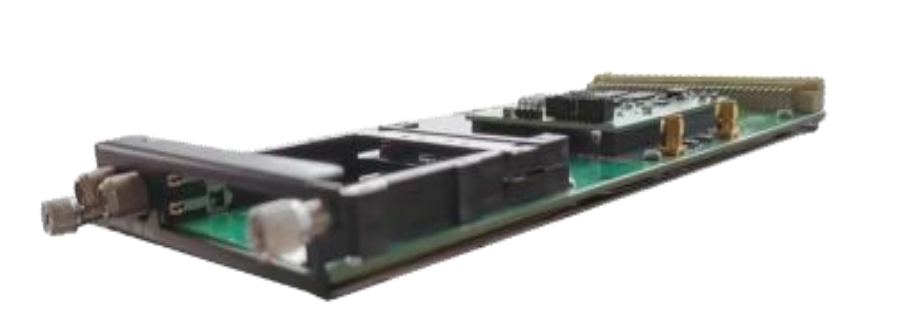

HP902A 2 Tuner Descrambling Card
Stream in:
2 Tuner input, F Type,
Stream out:
16 SPTS output over UDP/RTP
DVB-CI:
2 independent common interface slots Standard:
DVB-S/S2/S2X;
DVB-S
Input Frequency: 950-2150MHz
Symbol Rate: QPSK 1~45Msps
Signal Strength: -65~ -25dBm
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK 1~45Msps, 16APSK 1~45 Msps, 32APSK1~32 Msps
FEC Demodulation: 1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/10
DVB-S2X
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps; 8APSK/32APSK: 0.5~40Msps FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; 32 BISS Keys
HP942A 4 frequencies Descrambling Card
Stream in:
4 frequencies input(each RF in interface for 2 frequencies locking), F Type,
Stream out:
16 SPTS output over UDP/RTP
DVB-CI:
2 independent common interface slots
Standard: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/T2
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth PLP supported for DVB-T2
Standard: ISDB-T
Input Frequency:60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; 32 BISS Keys

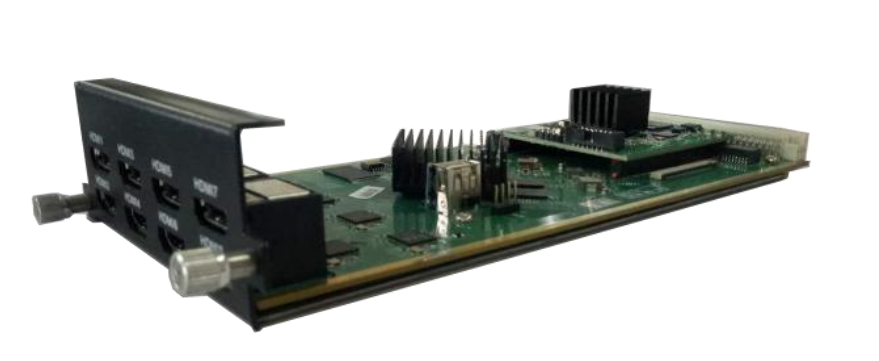

HP228S 8 HDMI Encoder Card
Input: 8*HDMI (4 HDMI is available)
Output: 8*SPTS (4 SPTS if 4 HDMI) output over UDP/RTP/RTSP, Unicast/Multicast
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, GOP structure: IP …P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, LC-AAC, HE-AAC and AC3 Pass through, support audio gain adjustment
Sampling rate: 48 KHz Audio Bit-rate:
MPEG-1 Layer 2: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
LC-AAC: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
HE-AAC: 48/56/64/80/96/112/128 kbps
Support Logo, Caption, QR Code insertion
HP228S-V2 8 HDMI Encoder Card
Input: 8*HDMI (4 HDMI is available)
Output: 8*SPTS (4 SPTS if 4 HDMI) output over UDP/RTP/RTSP, Unicast/Multicast
Video Encoding:
Video format: HEVC/H.265, MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, GOP structure: IP …P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, LC-AAC, HE-AAC and AC3 Pass through, support audio gain adjustment
Sampling rate: 48 KHz Audio Bit-rate:
MPEG-1 Layer 2: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
LC-AAC: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
HE-AAC: 48/56/64/80/96/112/128 kbps
Support Logo, Caption, QR Code insertion

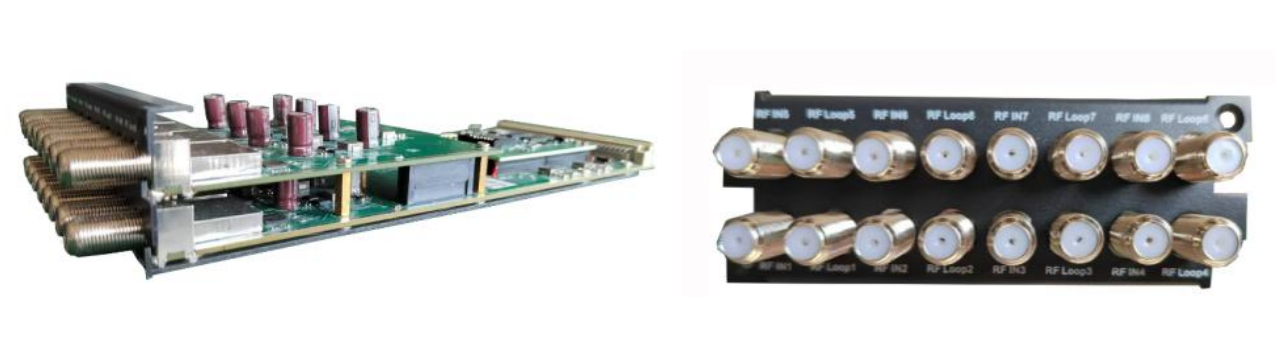

HP908 8 FTA DVB-S/S2/S2X Tuner Card
Stream in: 8 Tuner input, F Type,
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-S/S2/S2X
Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps; 8APSK/32APSK: 0.5~40Msps
Input Frequency: 950-2150MHz
DVB-S Constellation: QPSK
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Constellation: QPSK/8PSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 2/3, 3/4, 5/6, 3/5, 4/5, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X Constellation: QPSK/8PSK/8APSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9, 9/10
Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Key
HP928 8 FTA DVB-C/T/T2/ISDB-T Multi-Mode Tuner Card
Stream in: 8 tuner input, F Type
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/T2
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth
PLP Index:0~255 for DVB-T2
Standard: ISDB-T
Input Frequency:60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Keys
HP908
V2
8
FTA DVB-S/S2/S2X
Tuner
Card
Stream in: 8 Tuner input, F Type, with loop out
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-S/S2/S2X
Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps; 8APSK/32APSK: 0.5~40Msps
Input Frequency: 950-2150MHz
DVB-S Constellation: QPSK
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Constellation: QPSK/8PSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 2/3, 3/4, 5/6, 3/5, 4/5, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X Constellation: QPSK/8PSK/8APSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9, 9/10 Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Key

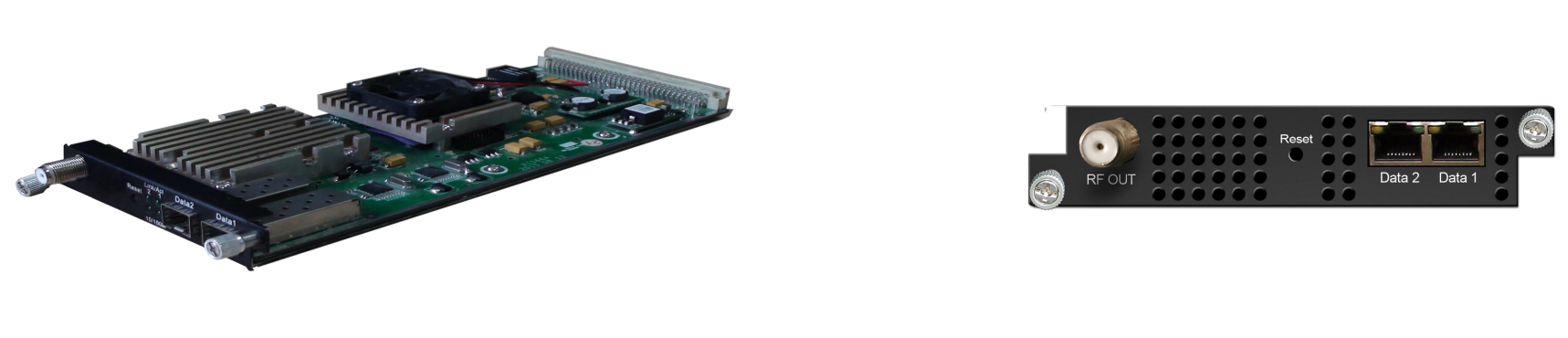

HP316/HP332 DVB-C Modulator Card
Module Specifications:
Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board
Data output: 16 or 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 16/32 channels of multiplexing, scrambling and modulation.
Multiplexing:
Maximum PID Remapping: 256 output pids per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically
Scrambling:
Maximum simulcrypt CA: 6
Standard: ETR289, ETSI 101 197, ETSI 103 197
Connection: Local/remote connection
Modulation:
Standard: EN300 429/ITU-T J.83A/B/C
MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20~+ 10dBm (87~ 117 dBµV), 0. 1dB step for all carriers
Symbol Rate: 3600~7200Ksps, 1ksps stepping
5057Ksps (J.83B, 64QAM), 5361Ksps (J.83B, 256QAM) Constellation/Bandwidth: J.83A: 16/32/64/128/256QAM, 8M
J.83B/C: 64/256QAM, 6M
HP316 Output: 16 non-adjacent carrier outputs within 192M bandwidth
HP332 Output: 32 non-adjacent carrier outputs within 384M bandwidth
HP308T DVB-T Modulator Card
Module Specifications:
Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board
Data output: 8/16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
Multiplexing:
Channel Number: 8/16 multiplexing channels
Maximum PID Remapping: 256 input per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Modulation:
Standard: ETSI EN300 744
MER: ≥40db
RF Frequency: 50~960MHz, 1KHz step
Constellation: QPSK/16QAM/64QAM
Bandwidth: 6/7/8 MHz
Trans mode: 2K/4K/8K
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
RF Output Level: -20~+ 10dbm (for all carriers), 0. 1dB stepping
RF Output (F type): 8/16 non-adjacent carrier outputs within 192M bandwidth
Order Guide:
HP308T-8: 8 non-adjacent DVB-T carrier output + 8 IP MPTS output
HP308T-16: 16 non-adjacent DVB-T carrier output + 16 IP MPTS output
HP306I ISDBT Modulator Card
Module Specifications:
Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board
Data output: 8/16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 8/16 channels of multiplexing and modulation.
Multiplexing:
Maximum PID Remapping: 256 input per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Modulation:
Standard: ARIB STD-B31
Bandwidth: 6M
Constellation: QPSK, 16QAM, 64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4
Transmission Mode: 2K, 4K, 8K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20dBm~+ 10dBm (87~ 117dbµV), 0. 1dB stepping
RF Output: 8/16 non-adjacent carrier outputs within 192M bandwidth
Order Guide:
HP306i-8: 8 non-adjacent ISDB-T carrier output + 8 IP MPTS output
HP306i-16: 16 non-adjacent ISDB-T carrier output + 16 IP MPTS output
Test data for reference (1U model):
Protocol conversion | Programs | Bitrate | Terminals | CPU utilization |
UDP to HTTP | 60 | 8M | 100 | 80% |
UDP to HLS | 60 | 8M | 120 | 65% |
UDP to HTTP | 60 | 2M | 400 | 80% |
UDP to HLS | 60 | 2M | 400 | 40% |
UDP to SRT | 45 | 8M | --- | 80% |
UDP to RTMP | 50 | 8M | --- | 80% |
Test data for reference (3U model):
Protocol conversion | Programs | Bitrate | Terminals | CPU utilization |
UDP to HTTP | 150 | 8M | 600 | 82% |
UDP to HLS | 150 | 8M | 1300 | 30% |
UDP to SRT | 130 | 8M | --- | 75% |
UDP to RTMP | 150 | 8M | --- | 80% |
HEP100-A/A3 IP Streamer
Mutiple Inputs (HDMI+Tuner+IP over Multi-Protocol+TS file) + Multi-Protocol Conversion + IPTV Server
1U Chassis with 3 card slots
3U Chassis with 6 card slots
Application Example
IPTV System as a Server
Protocol Conversion as a Streamer
Outline
HEP100-A/A3 is a fexibly modularized 1U (or 3U) device with the features of Encoder/Receiver, IP Gateway and IPTV Server for the protocol-conversion application and IPTV-system application. It supports max 3 (or 6) pluggable streamer cards embedded, such as encoder card and tuner card to receive the HDMl signals and tuner signals etc. It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP,UDP, RTP, RTSP, HLS protocol and TS files into the output IP streams over SRT, HTTP,UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with Catcast IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel,hospital and community.
Key Features
Encoder/Receiver, IP Gateway and IPTV Server in one device
2 separate Web GUl, one for Cards and Gateway, the other for IPTV Server
Support uploading TS files directly in Web GUl to broadcast your own channels
Support inter-cut feature of a live program, a TS file and a picture
Support IP anti-jitter feature for the external IP streams
Support downloading Catcast IPTV APK directly in the Web GUI
Multi-level password control for your system security
LCD/Key button for Network-Setting checking
Modularized design, max 3 (or 6) cards embedded, a flexible option as per the actual application
Redundancy power supply (for option)
IP Protocol Conversion (example)
Specifications
Input | IP inputs thru ETH 1&2, GE ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS | For 1U model | |||
IP inputs thru ETH 1-4 GE ports & 6-7 SFP+ ports over SRT,HTTP, UDP (SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS | For 3U model | ||||
TS files uploading through Web management | |||||
Encoder card and Tuner card etc (Please refer to the detailed card spec below) | |||||
IP output | IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP(SPTS, Multicast) , RTP, RTSP, HLS and RTMP (Program source should be H.264 and AAC encoding) | ||||
System | Channel switching time with Catcast’ STB: HTTP (1-3s), HLS (0.4-0.7s) | ||||
It is closely related with the program bitrate and protocol type etc for Max program numbers involved in protocol conversion, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end ofthe spec) | |||||
It is closely related with the program bitrate and protocol type etc for Max affordable terminal numbers in IPTV application of the STB/Android TV installed with Catcast | |||||
IPTV APK, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) | |||||
IPTV Features: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS,Adding scrolling caption, welcome words, pictures, advertisement, video, music etc (the features are only applicable to IP out application in the STB/Android TV installed with Catcast IPTV APK) | |||||
General | Demission (WxLxH) | 482mm×464mm×44mm (1U model) 482mm×493mm×133mm (3U model) | |||
Management | 2 separate Web GUI (one for Cards and Gateway, the other for IPTV Server) through ETH3 (3U model through ETH5) | ||||
Temperature | 0~45℃(operation), -20~80℃(storage) | ||||
Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | ||||
Order Guide (for Chassis)
Model No. | Size | Data Port | Memory | CPU | Solid-State Disk (SSD) | Mechanical Hard Disk |
HEP100-A | 1U with 3 slots | 4x 2.5GE (1G and 2.5G self-adapt) | 8G | J4105 | 240G/1T (as per order) | N/A |
HEP100-A3 | 3U with 6 slots | 2x SFP+ (1G/10G self-adapt), 6x 2.5GE (1G and 2.5G self-adapt) | 16G | i7 | 240G/1T (as per order) | 4T/8T (as per order) |
Available Card Specification (more available cards later for development)
HP902A 2 Tuner Descrambling Card
Stream in:
2 Tuner input, F Type,
Stream out:
16 SPTS output over UDP/RTP
DVB-CI:
2 independent common interface slots Standard:
DVB-S/S2/S2X;
DVB-S
Input Frequency: 950-2150MHz
Symbol Rate: QPSK 1~45Msps
Signal Strength: -65~ -25dBm
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK 1~45Msps, 16APSK 1~45 Msps, 32APSK1~32 Msps
FEC Demodulation: 1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/10
DVB-S2X
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps; 8APSK/32APSK: 0.5~40Msps FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; 32 BISS Keys
HP942A 4 frequencies Descrambling Card
Stream in:
4 frequencies input(each RF in interface for 2 frequencies locking), F Type,
Stream out:
16 SPTS output over UDP/RTP
DVB-CI:
2 independent common interface slots
Standard: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/T2
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth PLP supported for DVB-T2
Standard: ISDB-T
Input Frequency:60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; 32 BISS Keys
HP228S 8 HDMI Encoder Card
Input: 8*HDMI (4 HDMI is available)
Output: 8*SPTS (4 SPTS if 4 HDMI) output over UDP/RTP/RTSP, Unicast/Multicast
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, GOP structure: IP …P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, LC-AAC, HE-AAC and AC3 Pass through, support audio gain adjustment
Sampling rate: 48 KHz Audio Bit-rate:
MPEG-1 Layer 2: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
LC-AAC: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
HE-AAC: 48/56/64/80/96/112/128 kbps
Support Logo, Caption, QR Code insertion
HP228S-V2 8 HDMI Encoder Card
Input: 8*HDMI (4 HDMI is available)
Output: 8*SPTS (4 SPTS if 4 HDMI) output over UDP/RTP/RTSP, Unicast/Multicast
Video Encoding:
Video format: HEVC/H.265, MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, GOP structure: IP …P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, LC-AAC, HE-AAC and AC3 Pass through, support audio gain adjustment
Sampling rate: 48 KHz Audio Bit-rate:
MPEG-1 Layer 2: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
LC-AAC: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
HE-AAC: 48/56/64/80/96/112/128 kbps
Support Logo, Caption, QR Code insertion

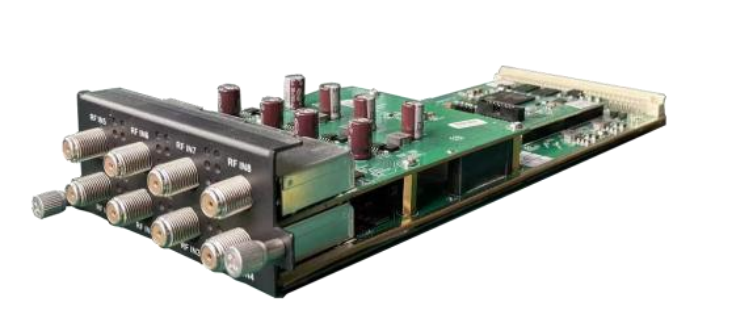

HP908 8 FTA DVB-S/S2/S2X Tuner Card
Stream in: 8 Tuner input, F Type,
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-S/S2/S2X
Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps; 8APSK/32APSK: 0.5~40Msps
Input Frequency: 950-2150MHz
DVB-S Constellation: QPSK
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Constellation: QPSK/8PSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 2/3, 3/4, 5/6, 3/5, 4/5, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X Constellation: QPSK/8PSK/8APSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9, 9/10
Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Key
HP928 8 FTA DVB-C/T/T2/ISDB-T Multi-Mode Tuner Card
Stream in: 8 tuner input, F Type
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/T2
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth
PLP Index:0~255 for DVB-T2
Standard: ISDB-T
Input Frequency:60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Keys
HP908V28FTA DVB-S/S2/S2XTunerCard
Stream in: 8 Tuner input, F Type, with loop out
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-S/S2/S2X
Symbol rate: QPSK/8PSK/16APSK 0.5~45 Msps; 8APSK/32APSK: 0.5~40Msps
Input Frequency: 950-2150MHz
DVB-S Constellation: QPSK
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Constellation: QPSK/8PSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 2/3, 3/4, 5/6, 3/5, 4/5, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X Constellation: QPSK/8PSK/8APSK/16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9, 9/10 Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Key

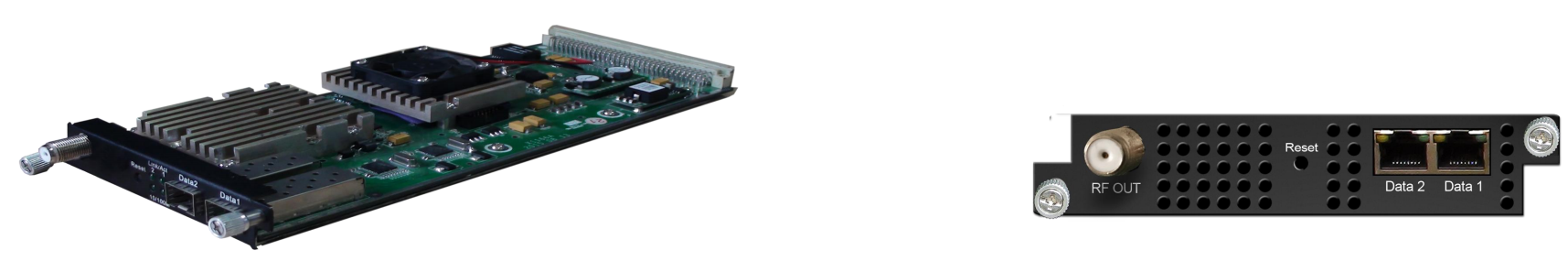

HP316/HP332 DVB-C Modulator Card
Module Specifications:
Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board
Data output: 16 or 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 16/32 channels of multiplexing, scrambling and modulation.
Multiplexing:
Maximum PID Remapping: 256 output pids per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically
Scrambling:
Maximum simulcrypt CA: 6
Standard: ETR289, ETSI 101 197, ETSI 103 197
Connection: Local/remote connection
Modulation:
Standard: EN300 429/ITU-T J.83A/B/C
MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20~+ 10dBm (87~ 117 dBµV), 0. 1dB step for all carriers
Symbol Rate: 3600~7200Ksps, 1ksps stepping
5057Ksps (J.83B, 64QAM), 5361Ksps (J.83B, 256QAM) Constellation/Bandwidth: J.83A: 16/32/64/128/256QAM, 8M
J.83B/C: 64/256QAM, 6M
HP316 Output: 16 non-adjacent carrier outputs within 192M bandwidth
HP332 Output: 32 non-adjacent carrier outputs within 384M bandwidth

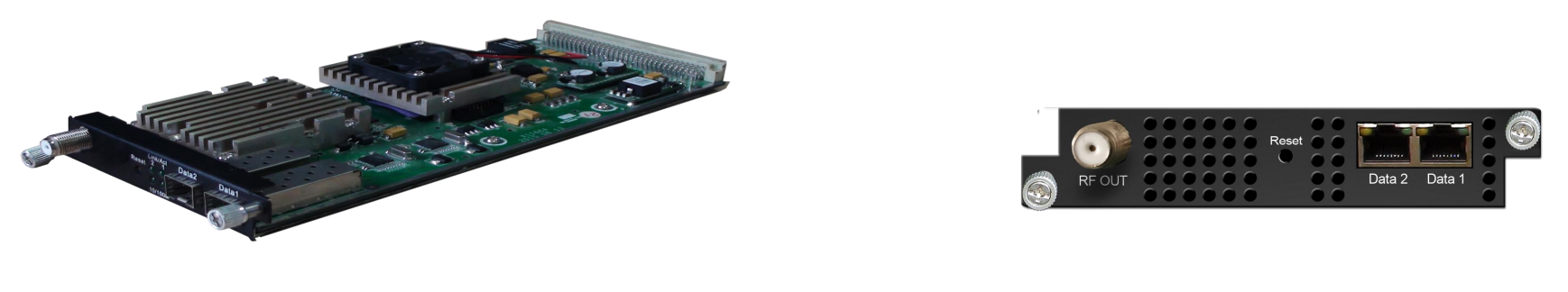

HP308T DVB-T Modulator Card
Module Specifications:
Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board
Data output: 8/16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
Multiplexing:
Channel Number: 8/16 multiplexing channels
Maximum PID Remapping: 256 input per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Modulation:
Standard: ETSI EN300 744
MER: ≥40db
RF Frequency: 50~960MHz, 1KHz step
Constellation: QPSK/16QAM/64QAM
Bandwidth: 6/7/8 MHz
Trans mode: 2K/4K/8K
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
RF Output Level: -20~+ 10dbm (for all carriers), 0. 1dB stepping
RF Output (F type): 8/16 non-adjacent carrier outputs within 192M bandwidth
Order Guide:
HP308T-8: 8 non-adjacent DVB-T carrier output + 8 IP MPTS output
HP308T-16: 16 non-adjacent DVB-T carrier output + 16 IP MPTS output
HP306I ISDBT Modulator Card
Module Specifications:
Data input: 512*3 IP input over UDP/RTP from 2 GE Ports (RJ45/SFP) and internal stream connector board
Data output: 8/16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 8/16 channels of multiplexing and modulation.
Multiplexing:
Maximum PID Remapping: 256 input per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Modulation:
Standard: ARIB STD-B31
Bandwidth: 6M
Constellation: QPSK, 16QAM, 64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4
Transmission Mode: 2K, 4K, 8K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20dBm~+ 10dBm (87~ 117dbµV), 0. 1dB stepping
RF Output: 8/16 non-adjacent carrier outputs within 192M bandwidth
Order Guide:
HP306i-8: 8 non-adjacent ISDB-T carrier output + 8 IP MPTS output
HP306i-16: 16 non-adjacent ISDB-T carrier output + 16 IP MPTS output
Test data for reference (1U model):
Protocol conversion | Programs | Bitrate | Terminals | CPU utilization |
UDP to HTTP | 60 | 8M | 100 | 80% |
UDP to HLS | 60 | 8M | 120 | 65% |
UDP to HTTP | 60 | 2M | 400 | 80% |
UDP to HLS | 60 | 2M | 400 | 40% |
UDP to SRT | 45 | 8M | --- | 80% |
UDP to RTMP | 50 | 8M | --- | 80% |
Test data for reference (3U model):
Protocol conversion | Programs | Bitrate | Terminals | CPU utilization |
UDP to HTTP | 150 | 8M | 600 | 82% |
UDP to HLS | 150 | 8M | 1300 | 30% |
UDP to SRT | 130 | 8M | --- | 75% |
UDP to RTMP | 150 | 8M | --- | 80% |
