HPM316
Catcast

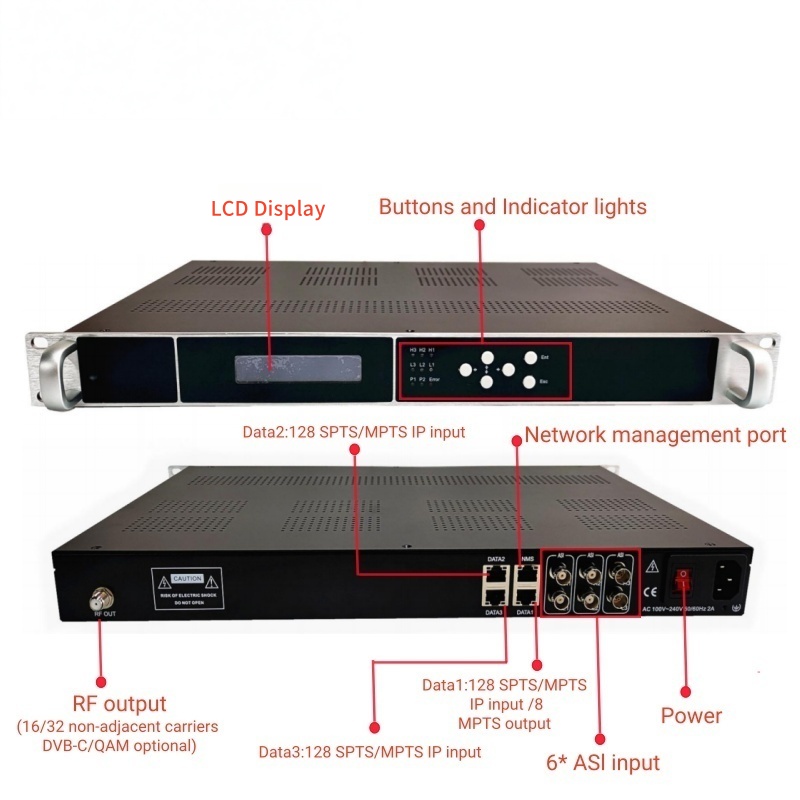

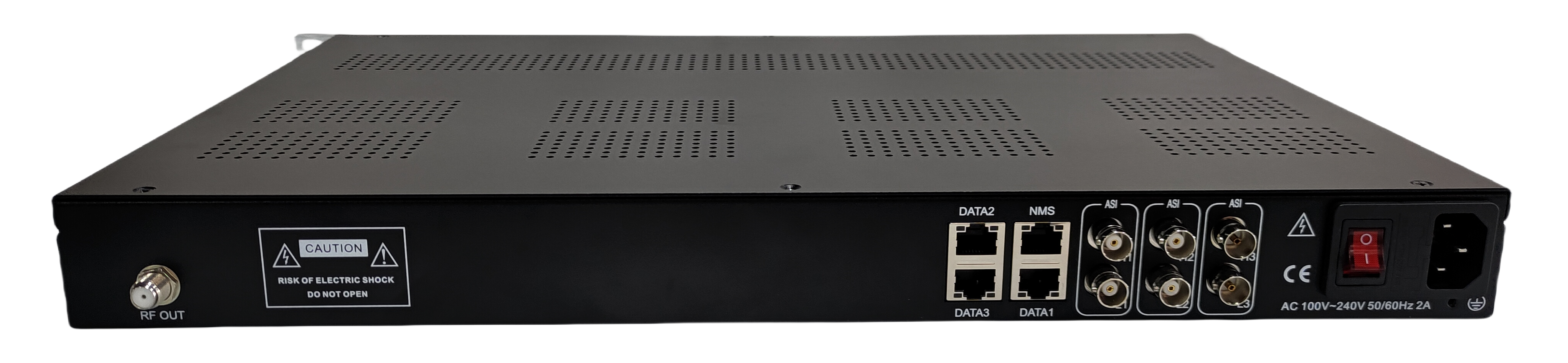

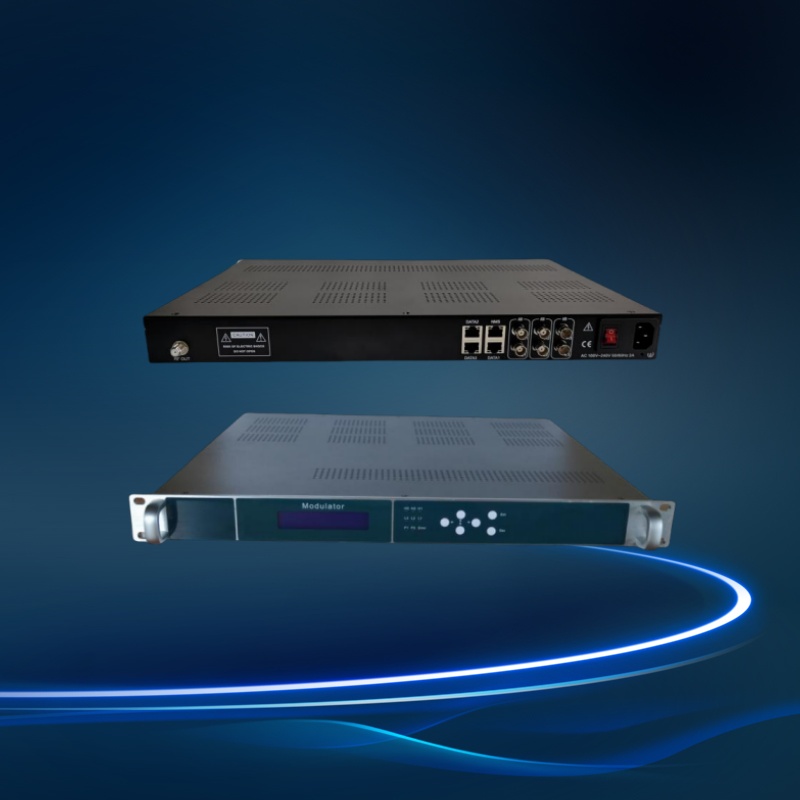

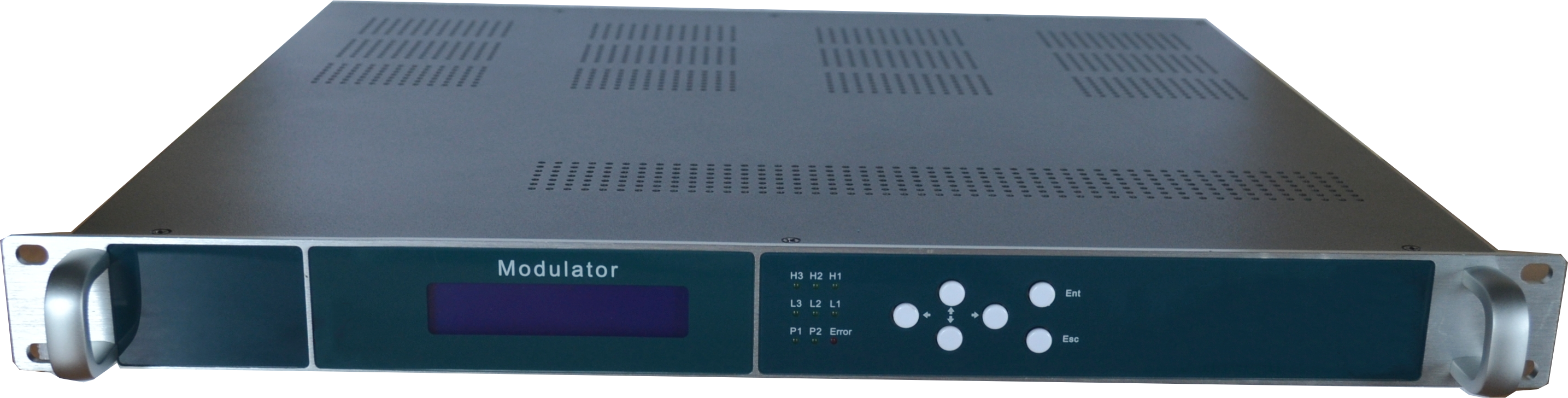

HPM316 16 in 1 IP to DVBT/ISDBT/ATSC Modulator
Product Overview
HPM316 is a cost-effective 16 in 1 IP to DVBT/ISDBT/ATSC modulator developed according to DVBT/ISDBT/ATSC standard (optional). It has 128*3 IP inputs. After multiplexing and modulating process, it gives 16 DVBT/ISDBT/ATSC (optional) non-adjacent carriers (50MHz~900MHz) output through the RF output interface. To meet cutomers ’ various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system.
Key Features
·Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol Support 8 MPTS Output
·Support 16 non-adjacent carriers DVBT/ISDBT/ATSC modulating (optional)
·Support 6 Serials ASI input (Any Multiplexing)
·RF output : 50~900MHz , Any Settings
·Integrated multiplexing and modulating functions
·Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
·Web-based NMS management

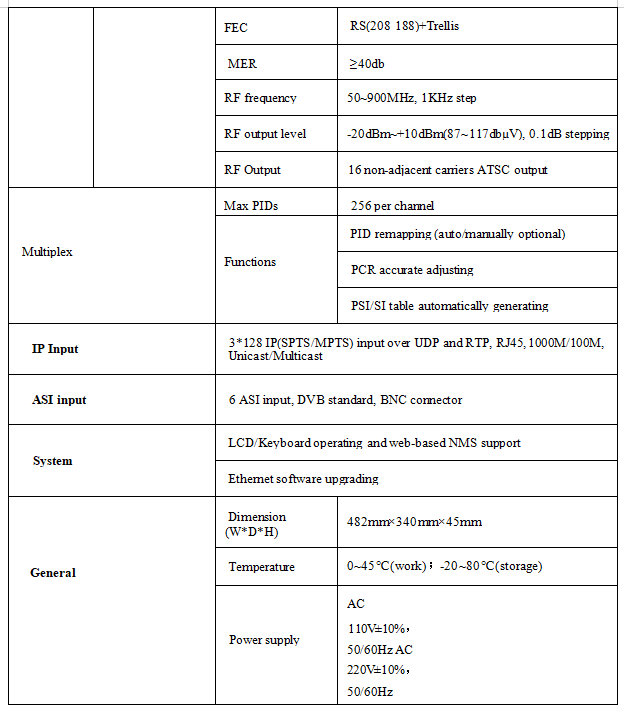

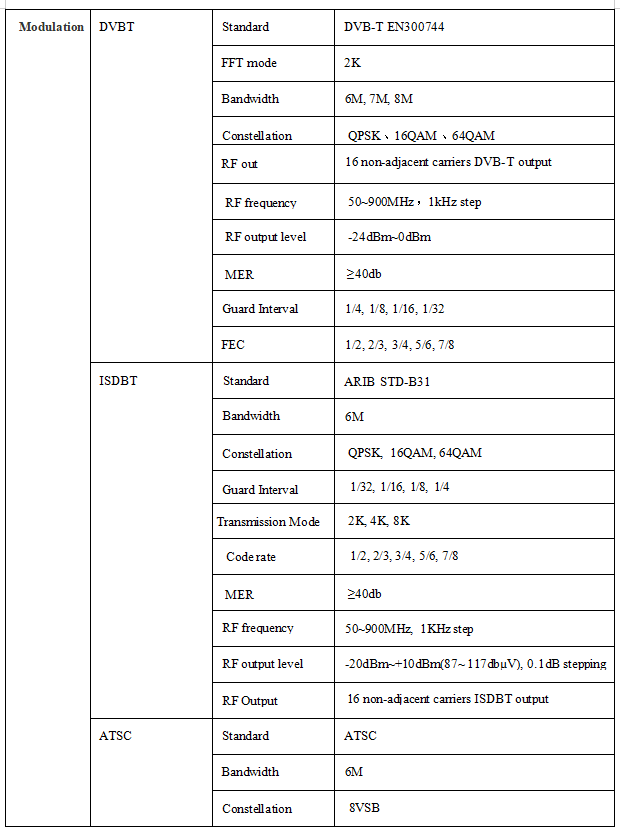

Technical Specification
HPM316 16 in 1 IP to DVBT/ISDBT/ATSC Modulator
Product Overview
HPM316 is a cost-effective 16 in 1 IP to DVBT/ISDBT/ATSC modulator developed according to DVBT/ISDBT/ATSC standard (optional). It has 128*3 IP inputs. After multiplexing and modulating process, it gives 16 DVBT/ISDBT/ATSC (optional) non-adjacent carriers (50MHz~900MHz) output through the RF output interface. To meet cutomers ’ various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system.
Key Features
·Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol Support 8 MPTS Output
·Support 16 non-adjacent carriers DVBT/ISDBT/ATSC modulating (optional)
·Support 6 Serials ASI input (Any Multiplexing)
·RF output : 50~900MHz , Any Settings
·Integrated multiplexing and modulating functions
·Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
·Web-based NMS management
Technical Specification
