HP804D
CatCast
8543709990

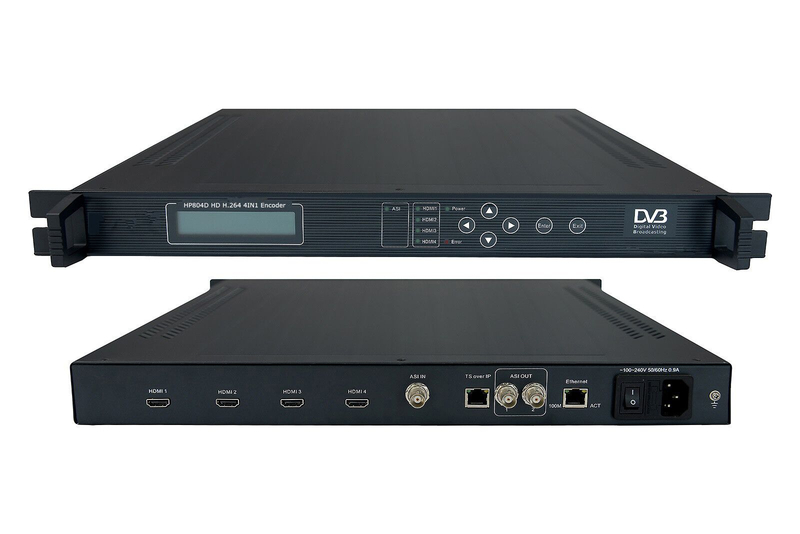

4 in 1 H.264 HDMI Encoder with 4 HDMI input and IP output
Outline
HP804D 4 in 1 MPEG-4 AVC/H.264 high definition (HD) encoder is a user-friendly, powerful encoder with multi-service capability, flexibly delivering multiple full and low resolution services to a range of devices. It supports multiple HD formats including 1080i/p, 720p. Besides it supports TS (UDP) over IP output, combined with 4HDMI inputs. Definitely, it conforms to the H.264 standard from the ITU.
Features
H.264/MPEG-4 AVC High Profile Level 4.0 video encoding, advanced video
pretreatment algorithm, MPEG-1 audio encoding
4×HDMI+ASI input
Support HDCP
Support multiple HD formats including 1080i/p and 720p
LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input | 4×HDMI | High Definition Multimedia Interface |
ASI | DVB standard, BNC interface | |
Video Coding | 4:2:0 encoding H.264 HP@L4 MP@L3 | |
H.264 Adaptive Field Frame (AFF) | ||
H.264 Field-Based (FB) | ||
full HD: 1920×1080×60/50i/p, 1280×720×60p/50p | ||
Standard | ISO/IEC14496-10 (H.264/MPEG-4 AVC) | |
Audio | Bit rate | 128, 160, 192, 224, 256, 320, 384Kbps |
Property | MPEG-1 Layer2 | |
Sample Bit rate | 32KHz, 44.1KHz, 48KHz | |
Output | 2×ASI | DVB standard, BNC interface |
IP | IP/UDP (TS over IP), MPTS/SPTS/Unicast/Multicast | |
Output Bit rate | 1 to 20Mbps (4:2:0) per channel | |
Control | NMS (Ethernet port, RJ-45), Keyboard + LCD | |
General Features | Size | 482mm×410mm×44mm |
Temperature Range | 0~45°C (Operation); -20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W | |
