HPS801A
Catcast

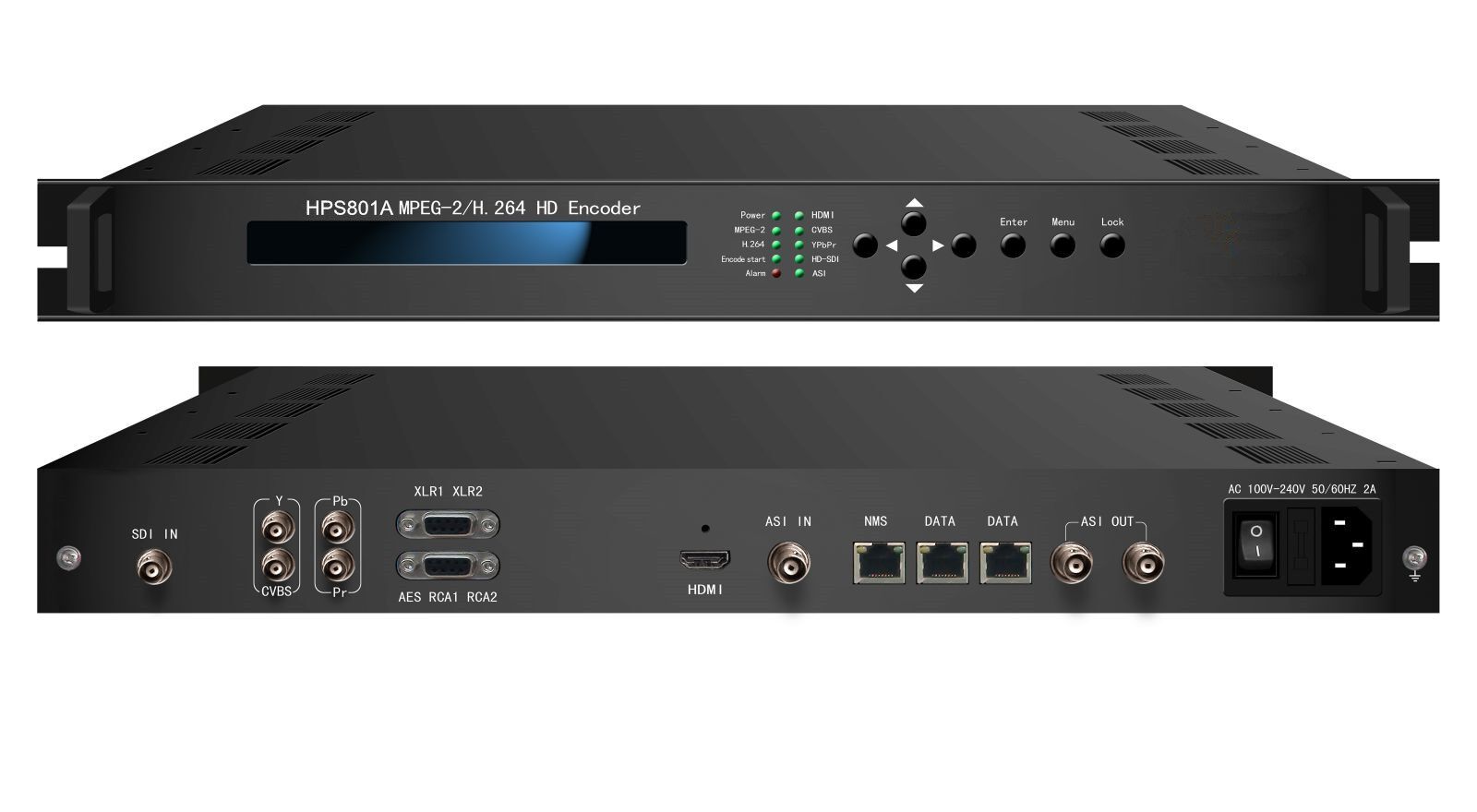

HPS801A MPEG-2/H.264 HD Encoder
Outline
HPS801A MPEG-2/H.264 HD Encoder is the new broadcasting audio & video encoding and multiplexing device with powerful functionality. It is equipped with multiple video input interfaces (SDI, CVBS, YPbPr and HDMI) and audio input interfaces (AES, RCA and XLR). It supports both MPEG-2 and MPEG-4 AVC/H.264 video encoding and MPEG1 Layer II, HE-AAC and LC-AAC audio encoding. Multiplexing function is also embedded to select the input programs and output stream through ASI/IP port in the same time.
Key Features
MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding
Support 720P, 1080I, 480I, 576I and various PIP video resolution
MPEG1 Layer II, HE-AAC (v1&v2) and LC-AAC audio encoding
Support 2 stereo or 4 Mono audio encoding
Support AC3 pass through (for SDI in only)
Support digital video + analog audio input and encode
Support CC (closed caption), EIA 608 and EIA 708 (for SDI in only)
Applicable for one Seg/ISDB-T utilization
IP (MPTS/8*SPTS) Output; ASI Output
Support UDP/RTP media transmission protocols & multicast/unicast output
LCD / keyboard control and web management
Specifications
Input | 1×SDI, 1×CVBS, 1×YPbPr and 1×HDMI input | |||
2×XLR, 2×RCA and 1×AES inputs | ||||
1×ASI input, BNC interface | ||||
Video | Resolution | Input | Output | |
1080i@60 | 1920×1080, 1440×1080, 1280×1080i | |||
1080i @59.94 | ||||
1080i @50 | ||||
720p@59.94 | 1280×720, 960×720p | |||
720p@50 | ||||
576i | 720×576, 704×576, 640×576, 544×576, 528×576, 352×576 | |||
480i | 720×480, 704×480, 640×480, 544×480, 528×480, 352×480 | |||
Encoding | MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD | |||
Bit-rate | 0.25Mbps~60.5Mbps | |||
Rate Control | CBR/VBR | |||
GOP Structure | Auto, IP, IPB, IPBB, IPBBB, IPBBBB, IPBBBBB | |||
Aspect Ratio | 4:3; 16:9; 1:1; 2.35:1 | |||
Chroma | 4:2:0; 4:2:2 (Applied to all resolution under MPEG2 compression) | |||
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |||
Video (one-seg) | Resolution | 96×96, 128×96, 128×128, 192×192, 352×240, 352×288, 416×240 | ||
Encoding | MPEG-2; H.264; Auto (follow the main stream format: MPEG-2 or H.264) | |||
Bit-rate | 0-1.0 Mbps | |||
Aspect Ratio | 4:3; 16:9; Auto (follow the main stream) | |||
Audio | Encoding | MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC AC3 Passthrough (for SDI in only) | ||
Sampling rate | 48KHz | |||
Resolution | 24-bit | |||
Bit-rate | 32Kbps~384Kbps | |||
Multiplexing | 1 ASI input multiplexed with local 1 channels TS | |||
Delay | 1400ms - 5000ms | |||
Stream output | 2×ASI output ports, BNC interface | |||
MPTS/8*SPTS over UDP/RTP, 10/100 Base-T Ethernet interface (UDP/RTP multicast/unicast) | ||||
System function | LCD/keyboard and web management | |||
Language: English | ||||
Ethernet software upgrade | ||||
General | Dimensions | 482mm×405mm×44.5mm (W × D × H) | ||
Approx weight | 4.5Kg | |||
Temperature | 0~45℃(Operation), -20~80℃(Storage) | |||
Power requirement | AC110V±10%, 50/60Hz AC 220V±10%,50/60Hz | |||
Power consumption | 21W | |||
