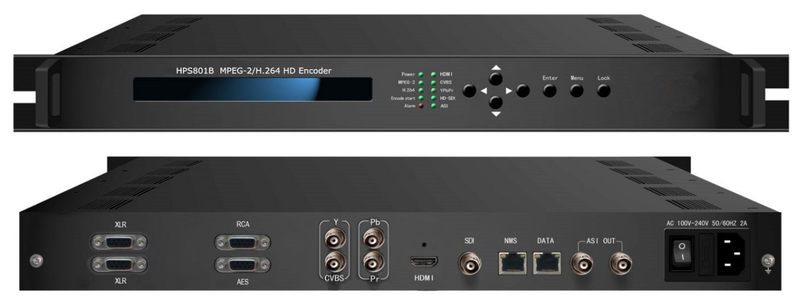

HPS801B MPEG-2/H.264 HD Encoder
Outline
HPS801B MPEG-2/H.264 HD Encoder is the new broadcasting audio & video encoding device with powerful functionality. It is equipped with multiple video input interfaces (SDI, CVBS, YPbPr and HDMI) and audio input interfaces (AES, RCA and XLR) to make it possible to compatible with different signal sources.
Multiple audio and video encoding formats are available to meet customers’ various requirements. It supports 4 stereo (8 mono) or one DD 5.1 (AC3) audios embedded to mix with the video to form a stream output. The encoded program will finally output in TS through ASI/IP port.
HPS801B is also featured with QR code, LOGO and OSD (text message bar) insertion function. It can show 3 functions at the same time. Operators can insert advertisement picture, own LOGO, QR code, OSD content during encoding process independent of STB. It brings more profit for product users.
Key Features
Support QR code, LOGO, OSD insertion
MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding
Support 1080I,720P, 480I, 576I video resolution and downscale transform
Support low latency
MPEG1 Layer II, HE-AAC (v1&v2), LC-AAC and DD AC3 audio encoding
Support DD AC3 audio passthrough
Support 4 stereo or 8 mono audio encoding
Support video buffer, free to switch video sources (all video interface available)
Support CC (closed caption), EIA 608 and EIA 708 (for CVBS and SDI in)
Support ASI output and IP over UDP output
LCD / keyboard control and web management
Specifications
Video | Interface | 1×SDI, 1×CVBS, 1×YPbPr and 1×HDMI | |||
Resolution | Input | Output | Interface Applicable | ||
1920×1080i@60 | 1920×1080, 1440×1080, 1280×1080i, 960×1080i | HDMI, SDI, YPbPr | |||
1920×1080i @59.94 | |||||
1920×1080i @50 | |||||
1280×720p@60 | 1280×720, 960×720p, 640×720p | HDMI, SDI, YPbPr | |||
1280×720p@59.94 | |||||
1280×720p@50 | |||||
720×576i@50 | 720×576, 704×576, 640×576, 544×576, 528×576, 480×576, 352×576 | SDI, CVBS | |||
720×480i@59.94 | 720×480, 704×480, 640×480, 544×480, 528×480, 352×480 | SDI, CVBS | |||
Encoding | MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD | ||||
Bitrate Range | 0.52 – 60.00 Mbps | ||||
Rate Control | CBR | ||||
GOP Structure | Auto, IP, IPB, IPBB, IPBBB | ||||
Aspect Ratio | 4:3, 14:9 (for SD video), 16:9 (for HD video) | ||||
Chroma | 4:2:0, 4:2:2 (for MPEG-2 encoding); 4:2:0 (for MPEG-4 AVC/H.264 encoding) | ||||
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | ||||
Audio | Interface | 4×XLR, 4×RCA, 1×AES, 1×HDMI, 1×SDI (support maximum 4 stereos synchronous processing or one DD 5.1 CH processing) | |||
Encoding | MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 (2.0, 5.1 available); DD AC3 passthrough (for SDI in) | ||||
Sampling rate | 48KHz | ||||
Resolution | 24-bit | ||||
Bit-rate | 32Kbps~384Kbps | ||||
Low Delay options | 150ms, 200ms, 350ms, 650ms | ||||
Stream output | 2×ASI output ports, BNC interface | ||||
IP over UDP, 100 Base-T Ethernet interface (UDP multicast/unicast) | |||||
System function | LCD/keyboard and web management | ||||
Language: English | |||||
Ethernet software upgrade | |||||
General | Dimensions | 482mm×405mm×44.5mm (W × D × H) | |||
Weight | Approx 4.0Kg | ||||
Temperature | 0~45℃(Operation), -20~80℃(Storage) | ||||
Power | AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz | ||||
Consumption | 21W | ||||
Technical Comparison
HPS801B | HPS801A | HP801P | |
Chipset | Magnum D7 Pro | Magnum DXT8313 | Fujitsu 86H46 |
Video interface | 1×SDI, 1×CVBS, 1×YPbPr, 1×HDMI | 1×SDI, 1×CVBS, 1×YPbPr, 1×HDMI | 1×SDI, 1×CVBS, 1×YPbPr, 1×HDMI, 1×S-Video |
Video Encoding | MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD | MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD | MPEG-4 AVC/H.264 HD/SD |
Bit Rate | 0.52 – 60.00 Mbps | 0.25Mbps~60.5Mbps | 0.8Mbps~20Mbps |
HDMI Resolution | HD | HD/SD | HD/SD |
Audio Encode | MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 (2.0/5.1), DD AC3 passthrough (under develop) | MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC; DD AC3 passthrough | MPEG-1 Layer II, (HE-AAC(v2) and LC-AAC optional, as per customer’s order) |
Audio Channel | Up to 4 stereos or 1DD AC3 (5.1) | Up to 2 stereos | 1 stereo |
Rate Control | CBR | CBR/VBR | CBR/VBR |
Aspect Ratio | 16:9, 4:3, 14:9 | 16:9, 4:3, 1:1, 2.35:1 | 16:9, 4:3 |
Chroma | 4:2:0, 4:2:2 | 4:2:0, 4:2:2 | 4:2:0 |
One-seg | N/A | Yes | N/A |
PIP | Under Develop | N/A | N/A |
Video Buffer | Yes | N/A | N/A |
ASI In & Mux | N/A | Yes | N/A |
IP out | UDP | MPTS/8*SPTS over UDP/RTP, | UDP/RTP |
Low Delay | 150ms, 200ms, 350ms, 650ms | 1400ms - 5000ms, 1ms stepping | N/A |
Closed Caption | EIA 608 and EIA 708 | EIA 608 and EIA 708 | N/A |
Management | Web-server | Web-server, SNMP | SNMP, NMS |
