HP4000
CATCAST

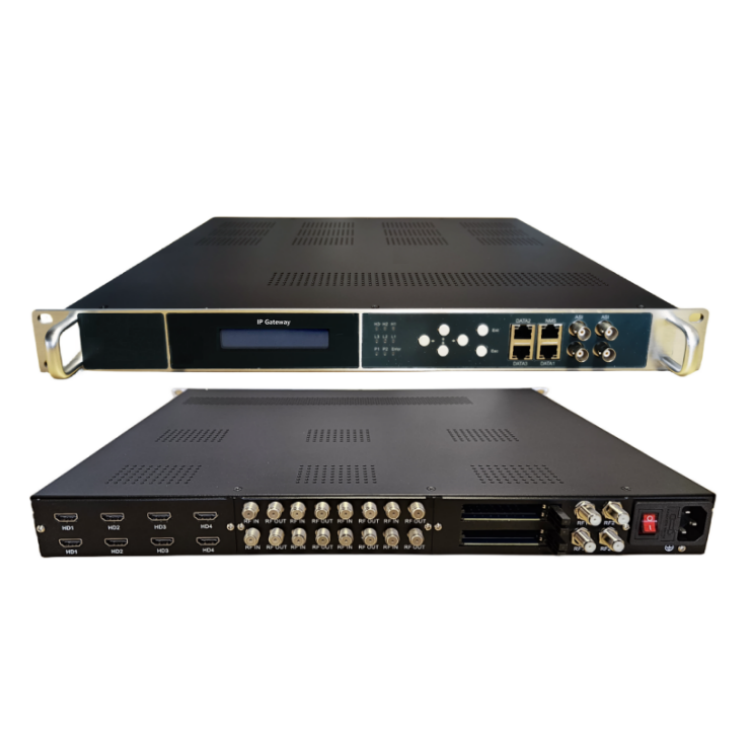

HP4000 Hotel IPTV Solution 24ch Tuner HDMI To UDP SRT IPTV System Server
Product Overview
The HP4000 is a high-performance, cost-effective professional IPTV system server designed to solve digital TV signal sources for business locations. It supports 4/8/12/16/20/24 Tuner/HDMI input. Modular input interface design allowing mixed use of modules with various input ports.A single device supports up to 256 terminals, with IP output over SRT for enhanced redundancy(DATA1/2/3). Also it support 4 ASI (2 input, 2 output). In summary, the highly integrated and economical design of the device allows for broad application across diverse digital distribution systems, including digital TV front-end systems and next-generation DTV broadcasting systems for various use cases.
Key Features

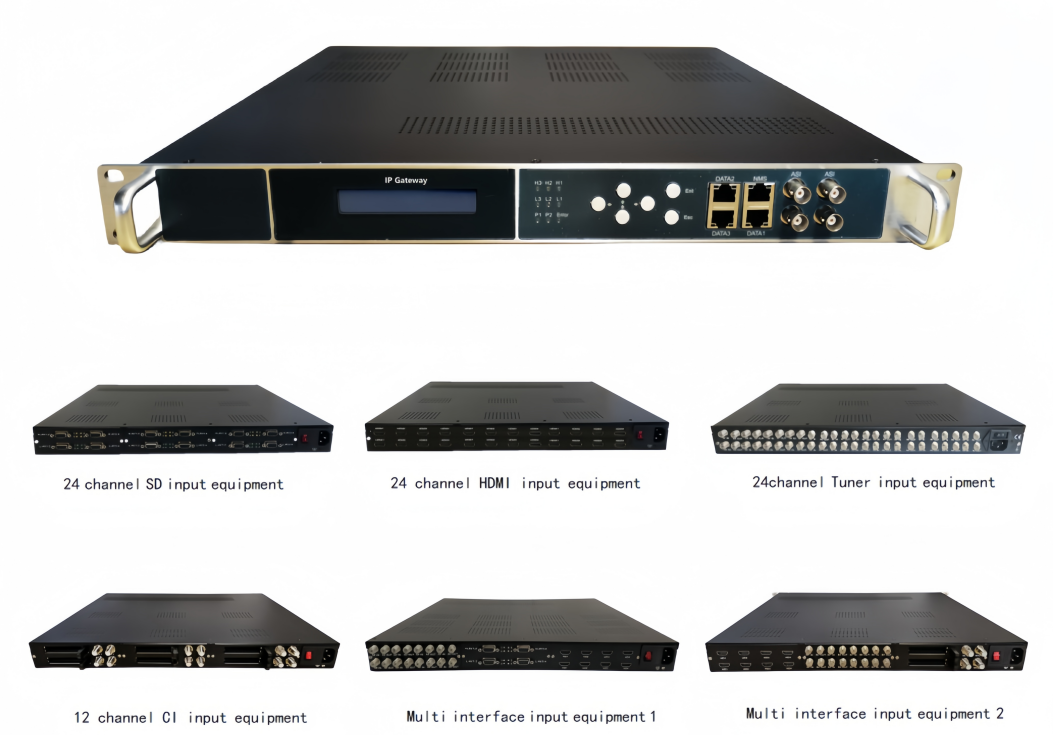

● 4/8/12/16/20/24 Tuner/HDMI/CVBS input
● Allows mixing of Tuner modules that support different reception standards, such as DVB-S2/DVB-C/-T/ATSC/ISDBT/DMBT
● Offers 3 Gigabit Ethernet outputs, supporting up to 256 terminals per device
● 2 ASI inputs and 2 ASI output
● Support encoder module OSD, subtitle insertion, logo insertion, QR code, and image functions
● Web-based NMS management
● Supports networking of multiple devices in series or parallel operation.
