HPR3624D-N
Catcast

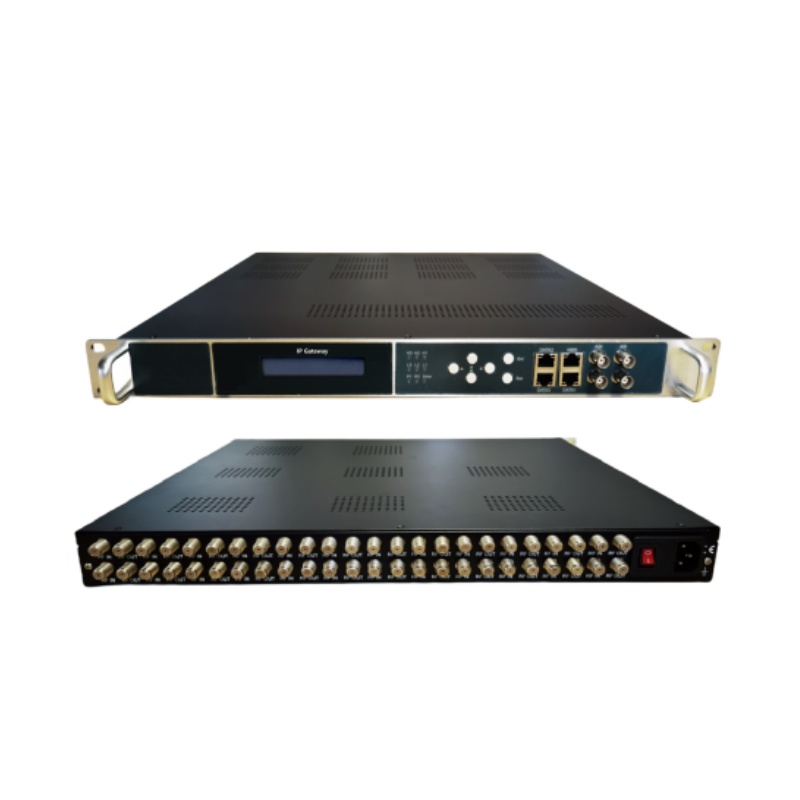

HPR3624D-N FTA Tuner to IP Gateway RTMP/HTTP/RTSP/HLS/SRT Protocol
Product Description
HPR3624D-N is a professional high integration device which includes tuner demodulation,transcoding,multiplexing. It supports 4/8/12/16/20/24 tuner input(support different types of tuner ( DVB-S2、DVB-C、DVB-T、 ATSC、 DTMBT、ISDBT, etc. ) input), Supports multiple streaming media protocol output (DATA1: RTMP/HTTP/RTSP/HLS/SRT); 5 MPTS output and 512 SPTS output (DATA2: UDP/RTP). It also support audio transcoding from AC3 to MP2/AAC. In conclusion, its high integrated and cost-effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
Key Features
* 4/8/12/16/20/24 tuner input, the tuner supports（DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DTMB）
* Support different types of tuner ( DVB-S2、DVB-C、DVB-T、 ATSC、 DTMBT、ISDBT ) input, or mixed use ( e.g., 4-way DVB-T and 4-way ATSC input at the same time.)
* Supports 2-way gigabit output (DATA1: RTMP/HTTP/RTSP/HLS/SRT;DATA2:UDP/RTP)
* Supports 1-way gigabit input，128 IP address input（DATA3: UDP/RTP）
* 2 ASI inputs
* Support audio transcoding from AC3 to MP2/AAC.（The signal source can be Tuner/IP/ASI input, optional）
* 2 ASI Independent output
* Web-based NMS management
* Support “Null PKT Filter” function
* Support PID Remapping/ PCR accurate adjusting
* PID pass
* LCD、key function
* Control via web management, and easy updates via web
Specification
Input | 4/8/12/16/20/24 tuner the tuner supports (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DMBT) optional | |
2 ASI inputs | ||
DATA 3: 128 IP address input, UDP/RTP protocol | ||
Output | 2 ASI output | |
DATA 1: IP output, RTMP/HTTP/RTSP/HLS/SRT protocol | ||
DATA 2: IP output（512 SPTS and 5 MPTS）over UDP/RTP protocol | ||
Transcoding | Support audio transcoding from AC3 to MP2/AAC. （the signal source can be Tuner/IP/ASI input, optional） | |
Multiplexing | Maximum PID Remapping | 180 output PID per channel |
Function | PID remapping (automatically or manually) | |
Accurate PCR adjusting | ||
System function | Network management (WEB) | |
Chinese and English language | ||
Ethernet software upgrade | ||
Miscellaneous | Dimension(W×L×H) | 482mm×410mm×44mm |
weight | 5-9 kg | |
Environment | 0~45℃(work)；-20~80℃(storage) | |
Power requirements | AC100~240V，50/60Hz | |

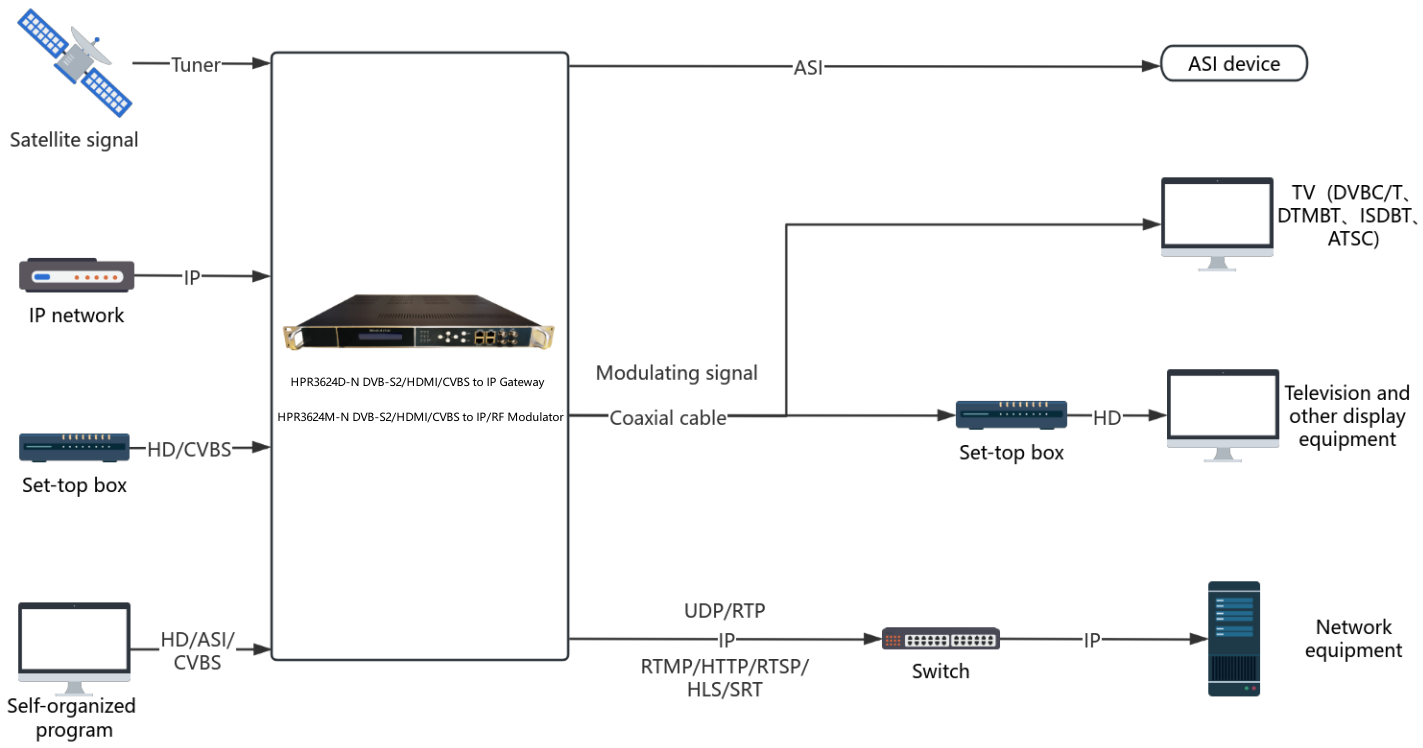

System Diagram
Note: The figure shows all the optional functions of this series of products, and the actual functions are
subject to the specific customized functions.
Streaming media module performance test data | |||||||
Protocol | Audio/ Video Code Format | Video Bitrate | Audio Bitrate | Stream Bitrate | Channel Quantity | Maximum Bitrate | Streams Quantity |
RTMP/RTSP/HTTP | H264+AAC(LC) | 4Mbps | 128Kbps | 4.5Mbps | CH:48 | 220Mbps | 6 |
RTMP/RTSP/HTTP | H264+AAC(LC) | 6Mbps | 128Kbps | 6.5Mbps | CH:40 | 260Mbps | 6 |
RTMP/RTSP/HTTP | H264+AAC(LC) | 8Mbps | 128Kbps | 8.5Mbps | CH:30 | 260Mbps | 6 |
HLS | H264+AAC(LC) | 4Mbps | 128Kbps | 4.5Mbps | CH:48 | 220Mbps | 6 |
HLS | H264+AAC(LC) | 6Mbps | 128Kbps | 6.5Mbps | CH:38 | 250Mbps | 6 |
HLS | H264+AAC(LC) | 8Mbps | 128Kbps | 8.5Mbps | CH:30 | 260Mbps | 6 |
SRT | H264+AAC(LC) | 4Mbps | 128Kbps | 4.5Mbps | CH:32 | 150Mbps | 4 |
SRT | H264+AAC(LC) | 6Mbps | 128Kbps | 6.5Mbps | CH:27 | 180Mbps | 4 |
SRT | H264+AAC(LC) | 8Mbps | 128Kbps | 8.5Mbps | CH:22 | 190Mbps | 4 |
Software version：4.19.232-2.26-0.1-20240611 | Test Date：202406 | ||||||
