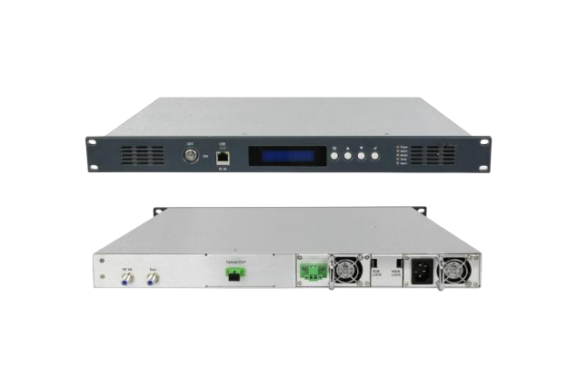

HT1300
Catcast
Limit parameter
Technical parameters | HT1300-3*** | HT1300-5*** |
Maximum received optical range | 1310nm±20 | 1550nm±15 |
Lowest input level | 75~90dBuV(Recommended Best Value 80dBuV) | |
The highest input optical power | 2~30mW | 3~10dBm |
Extreme operating temperature | -5℃ ~+45℃ | |
Limit supply voltage | AC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 - 58V) |
Technical parameters
Technical Parameters | HT1300-3*** | HT1300-5*** |
Output optical power | 2~30mW | 3~10dBm |
Wavelength | 1310nm±20 | 1550nm±15 |
Laser type | DFB laser | |
Optical modulation | Direct light intensity modulation | |
Optical connector form | FC/APC&SC/APC(customize) | |
Frequency Range | 47~860MHz(customize 1000MHz) | |
RF input level | 75~90dBuV(Recommended best value 80dBuV) | |
In-band flatness | ±1dB | |
AGC accuracy | 0.5dB | |
MGC adjustment range | 0~15dB | |
RF input impedance | 75Ω | |
Input reflection loss | ≥16 | |
C/CTB | ≥65 | |
C/CSO | ≥60 | |
Carrier to noise ratio (C/N) | ≥51 | |
Supply voltage | AC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 - 58V | |
Total power consumption | <12W | |
Operating temperature | -5℃~+45℃ | |
Relative humidity | 95% max, no condensation | |
Storage temperature | -30℃~+70℃ | |
Product net size | 357(W)*482(L)*44(H) | |
Single product packaging size | 595(W)*490(L)*120(H) | |
FCL package size (2 sets) | 595(W)*490(L)*230(H) |
