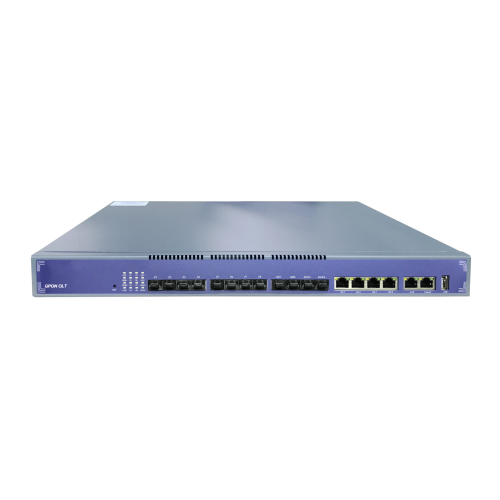

HP3708E
Catcast
Technical parameters
Items | Unit | Specifications |
PON standard. | GPON ITU-T G.984.x | |
PON interface | 8*GPON SFP Ports (Class C+), Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3~+7dBmTransmission distance: 20KM. Max splitting ratio1:128 | |
Speed | Downstream 2.488G Upstream1.244G | |
Wavelength | nm | Tx1310, Rx 1490 |
Uplink | GE | 4*copper Ethernet ports 10/100/1000M auto-negotiation |
SFP GE | 2*SFP(GE) | |
SFP 10GE | 2* SFP+ (10GE) | |
USB | 1*USB2.0(Type A) | |
Layer 3 | Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes | |
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | |
Management Mode | SNMP、Telnet、CLI、WEB、SSH v1/v2 | |
Backplane | Gbps | 128 |
MAC table | K | 16 |
Operating condition | ℃ | Operating temp: -5 ~ +55 |
Storing condition | ℃ | Storing temp: -40 ~ +85 |
Humidity | % | 5~90(non-condensing) |
Power consumption | W | ≤45 |
Dimension | mm | 442mm×220mm×44mm(L×W×H) |
Net weight | Kg | 3.0Kg |
Shipping packaging
Description | Quantity | Weight | Carton Size |
Shipping packaging | 1pcs /ctn | 6.94kg/ctn | 575*500*115mm |
5pcs /ctn | 34.95kg/ctn | 597*525*645mm |
