10G IP QAM Modulator 112 DVB-C QAM Channels Output with Multiplexer Scramble

Share to:

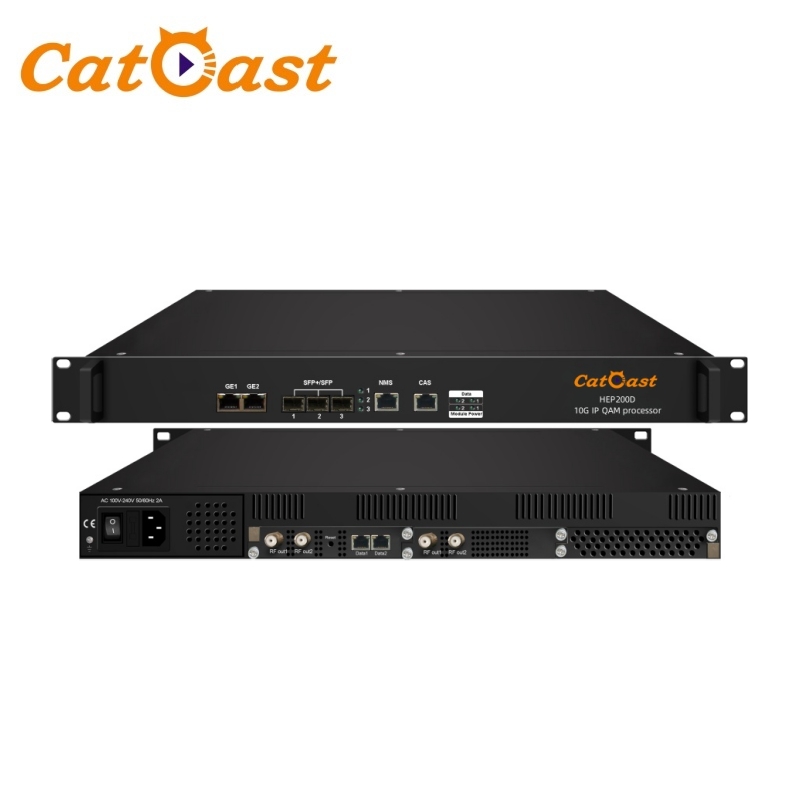

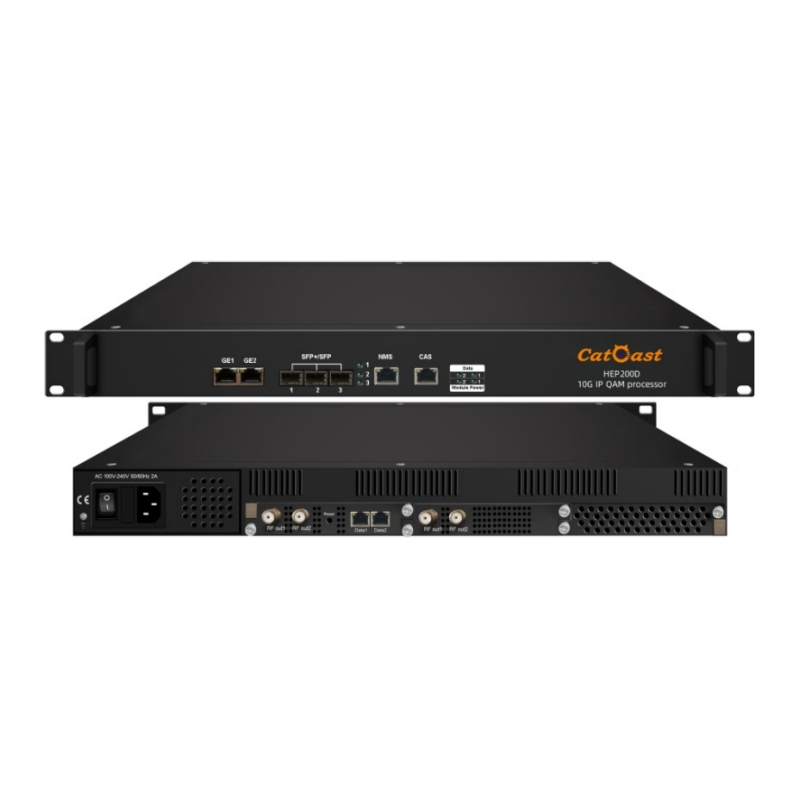

10G IP QAM Modulator 112 DVB-C QAM Channels Output with Multiplexer Scramble

Product Overview

HEP200D 10G IP QAM processor is an all-in-one device developed by Catcast which integrates multiplexer, scrambler and modulator in one body with maximum 112 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signal to work as a traditional QAM modulator.
This processor is equipped with 2 card slots to load 32ch or 48ch or 64ch QAM card. Its high density helps operators to save cost to the most extent.

Key Features

Support 3 SFP+ (10G)/SFP(1G) ports and 2 GE ports input & output from the front panel, or RJ45 GE ports input & output from daughter cards (32/48QAM)
High density, modularized plug-in design, 1U chassis with max 2 QAM cards
Support multiplexer and scrambler with 6 CAS Simul-cryption
Maximum 112 non-adjacent QAM carriers output
Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing
Web-based Network management

Availability:

Quantity:



Inquire Add to Basket

Model:
HEP200D
Brand:
Catcast
PDF:
HEP200D 10G IP QAM Modulator Spec.pdf

Product Description

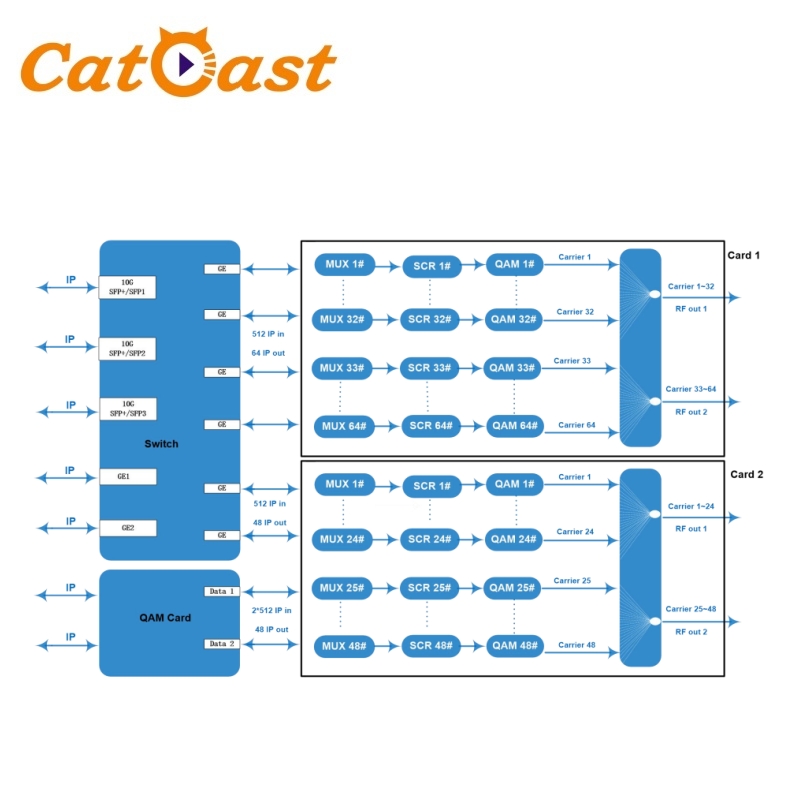

Inner Principle Chart (Example: one 64qam card + one 48qam card)

HEP200D，chart1

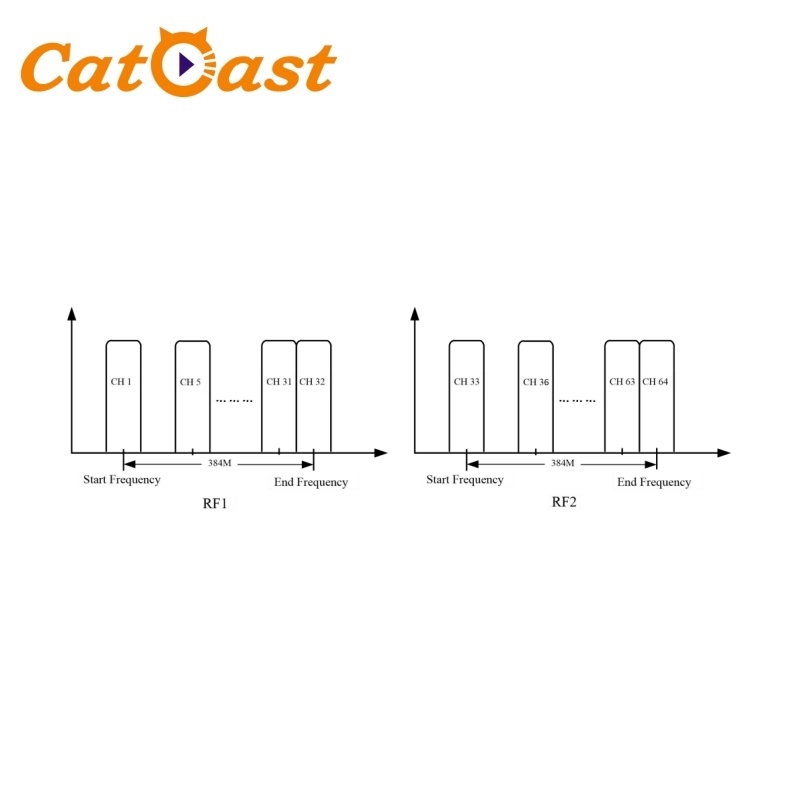

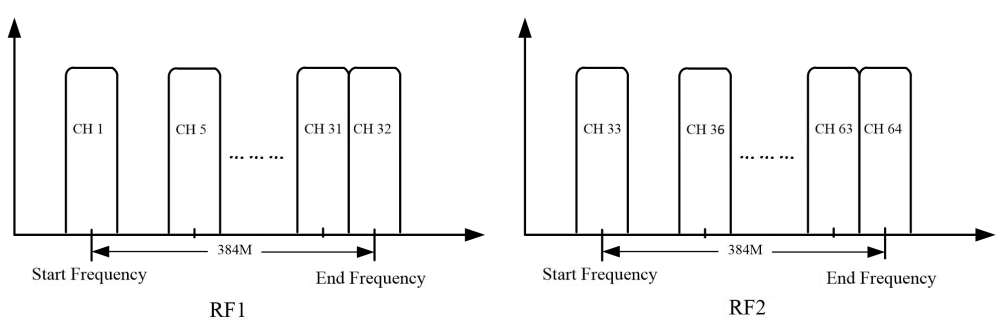

Carrier Setting Illustration (Example: 64qam card)

HEP200D，chart2

Specifications

Input	Input from Front Panel	Max 512 IP in per card through SFP+/SFP ports 1-3 and 2 GE ports
	Input from Daughter Card	2*512 IP in from 2 GE ports (SFP port optional)--32/48 QAM
	Transmission Rate	Max 9600Mbps for each 10G SFP+/SFP input
	Transport Protocol	TS over UDP/RTP, unicast and multicast, IGMP V2/V3
Mux	Max PIDs Remapping	256 per output channel
	Functions	PID remapping (auto/manually optional)
		PCR accurate adjusting
		PSI/SI table automatically generating
Scrambling	Max simulcrypt CA		6
	Scramble Standard		ETR289, ETSI 101 197, ETSI 103 197
	Connection		Local/remote connection
Modulation	Modulation Standard		EN300 429/ITU-T J.83A/B/C
	Constellation		J.83A	Constellation :16/32/64/128/256QAM
				Bandwidth :8M
			J.83B/C	Constellation :64/256QAM
				Bandwidth :6M
	QAM Channel		32/48/64/96/112 non-adjacent carriers output, 384Mbps bandwidth for each RF port
	Symbol Rate		3600~7000Ksps, 1ksps stepping 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
	Constellation		16, 32, 64, 128, 256QAM
	FEC		RS (204, 188)
RF Output	Interface (per card)	1 or 2 F type output ports for 32/48/64 carriers card, 75Ω. 32ch qam card : all Carrier out thru one RF port 32ch/48ch qam card : Carrier 1~16/1~24 out thru RF1, 17~32/25~48 thru RF2 64ch qam card : Carrier 1~32 out thru RF1, 33~64 thru RF2
	RF Range	50~960MHz, 1kHz stepping
	Output Level	-20dBm~+10dBm(87~117dbµV), 0.1dB stepping
	MER	≥ 40dB
TS output	Per Daughter QAM Card	32/48/64 IP output over UDP/RTP/RTSP, unicast/multicast, through SFP+/SFP ports 1-3 or GE ports RJ45
System	Web-based Network management
General	Dimension	420mm×440mm×44.5mm (WxLxH)
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power Supply	AC 100V±10%, 50/60Hz ; or AC 220V±10%, 50/60Hz
	Consumption	50W(1 daughter QAM card)/75W(2 daughter QAM cards)

Order Guide

Options Available	Combinations
32ch QAM out	32qam card * 1
48ch QAM out	48qam card * 1
64ch QAM out	64qam card * 1
96ch QAM out	64qam card * 1 + 32qam card *1
112ch QAM out	64qam card * 1 + 48qam card *1
