HV1600D16
Catcast

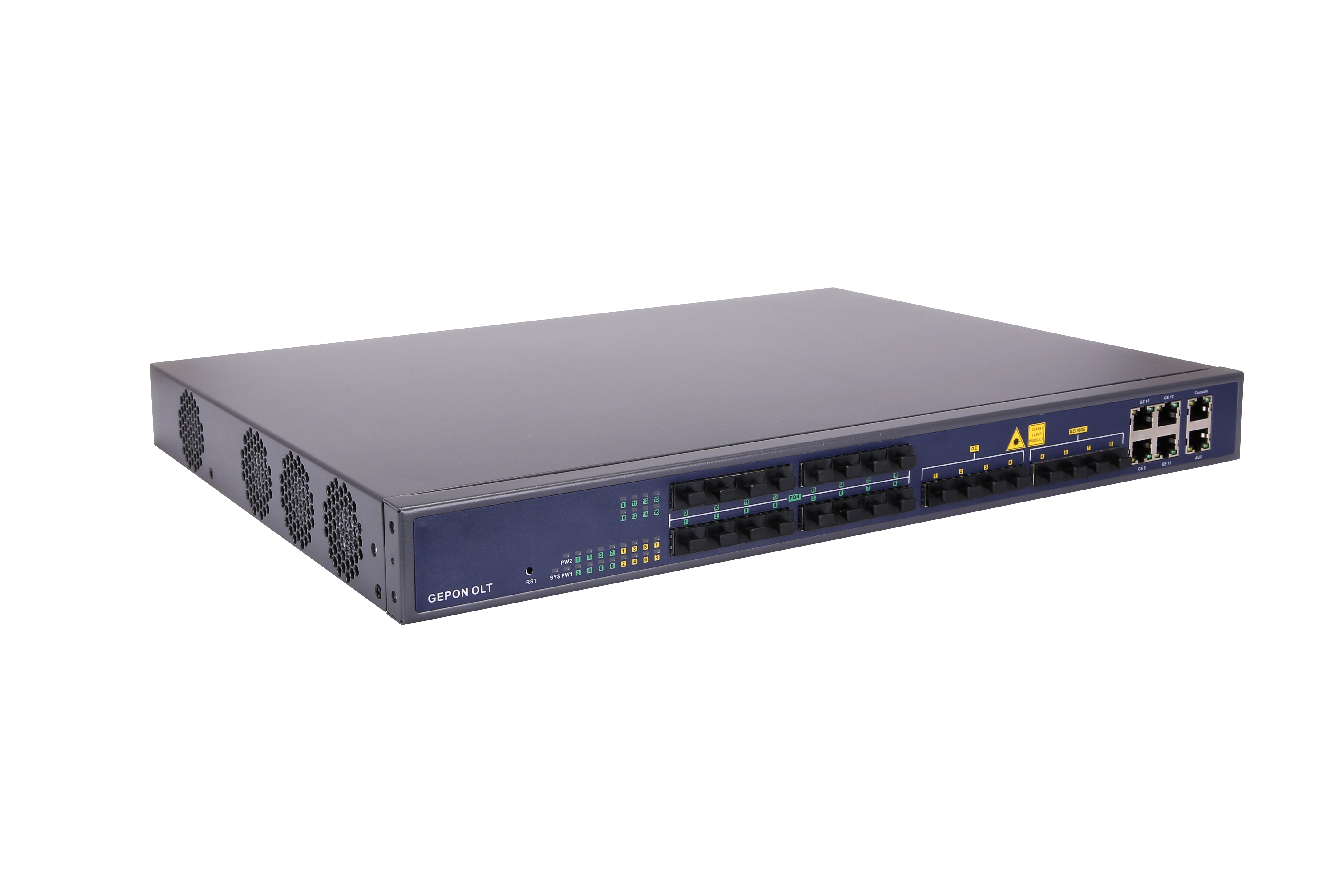

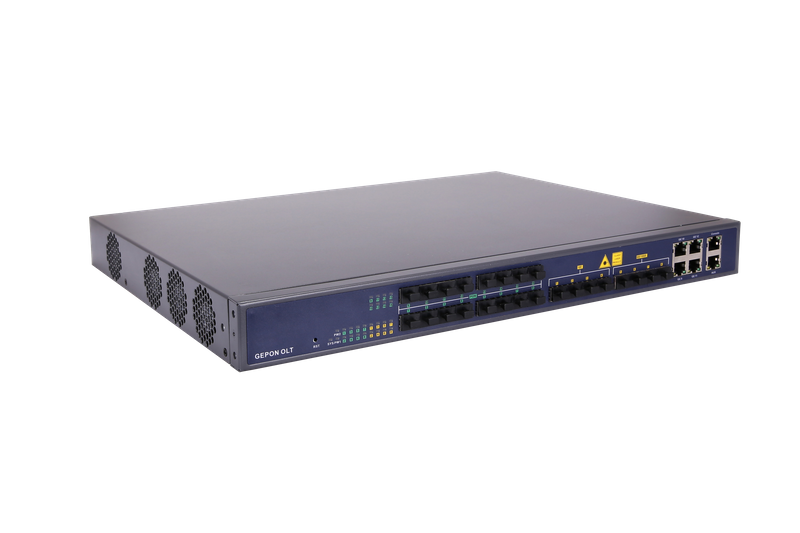

HV1600D16 16-Port EPON OLT
Outline
HV1600D16 series EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT's can be used for "Triple-Play", VPN, IP Camera, Enterprise LAN and Internet service provider applications.
HV1600D16 provides 4GE(copper) and 8*SFP slots independent interface for uplink, and 16*EPON OLT ports for downlink. It can support overall 1024 ONU's with 64 ONU's per PON port.

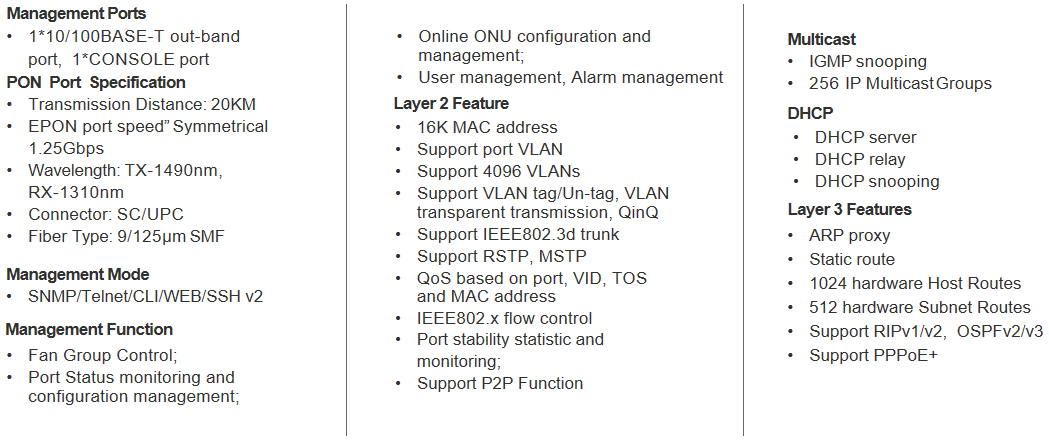

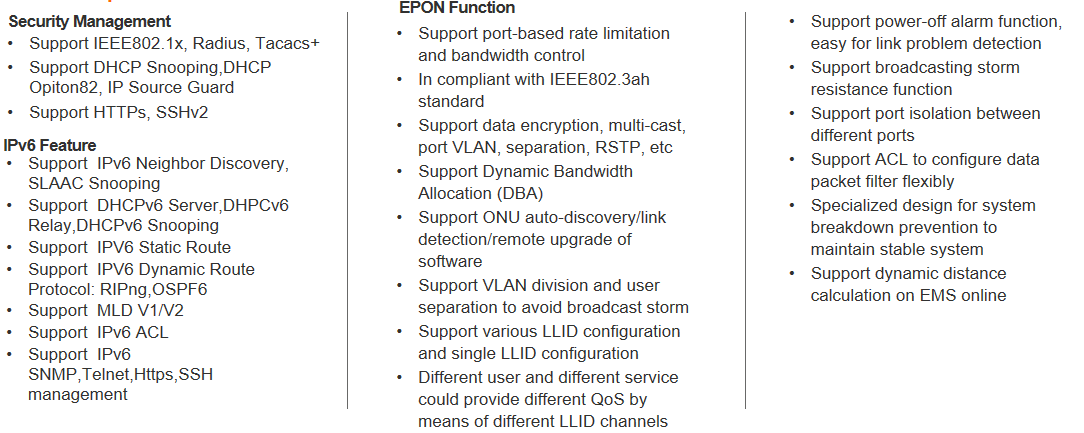

Key Features
STP/RSTP/MSTP
IGMP Snooping
VLAN Translation/Q-in-Q
Port Aggregation
Dynamic Bandwidth Allocation
DHCP Snooping
ACL
Port Mirroring
L3 Static Route, RIP/OSPF
SNMP/Telnet/CLI/WEB/SSH
Technical Specifications
Item | HV1600D16 | |
Chassis | Rack | 1U 19 inch standard box |
Uplink Port | Port count | 12 |
Copper | 4*10/100/1000M auto-negotiation | |
SFP(1GE) | 4 | |
SFP+(10GE) | 4 | |
EPON Port | QTY | 16 |
Physical Interface | SFP Slots | |
Max splitting ratio | 1:64 | |
Supported PON module level | PX20, PX20+, PX20++, PX20+++ | |
Backplane Bandwidth (Gbps) | 128 | |
Port Forwarding Rate(Mpps) | 95.232 | |
Dimension (LxWxH) | 442mm*320mm*43mm | |
Weight | 6.5kg | |
Power Consumption | 95W | |
Power supply | AC | Working Voltage Range: 100~240V, Rated Voltage: 110V/220V |
DC | ||
Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V | ||
Operating Environment | Working Temperature | -20~+60°C |
Storage Temperature | -40~+70°C | |
Relative Humidity | 5~95% (non-condensing) | |
Ordering Information
Product Name | Product Description | Power Configuration | Accessories |
HV1600D16 | 16*EPON,4*RJ45+ 4*SFP+4*(SFP+) | 1*AC power 2*AC power 1*AC power + 1* DC power | EPON SFP PX20++ module EPON SFP PX20+++ module 1G SFP module 10G SFP+ module |
