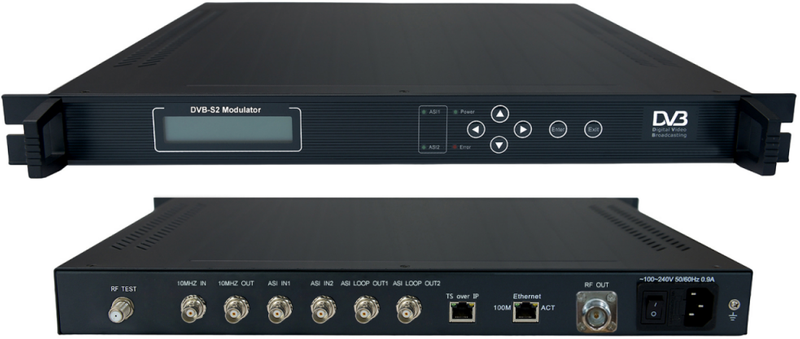

HP8103F DVB-S2 Modulator (950-2150Mhz) with ASI input
Overview
HP8103F DVB-S2 modulator supports 2×ASI input and outputs DVB-S2 RF signal by 8PSK/QPSK modulation. It uses advanced frame structure, channel coding modulation technology. Compared with DVB-S modulator, it increase 50% of the transmission capacity under same condition and it has stronger reception capacity under same spectral efficiency. This modulator complies with DVB-S2 EN302 307 and DVB-S (EN300 421) standard. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital wireless and satellite broadcasting distribution systems.
Features
Comply with DVB-S2(EN302 307) and DVB-S (EN300 421) standard
2×ASI input, supports hot backup
Support input and output signal real time monitoring
LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input | ASI | ASI (DVB standard, BNC interface) |
Package Format | 188/204bytes | |
Output | Modulation Mode | QPSK/8PSK |
Frequency Range | 950-2150MHz | |
Symbol Rate | 17.2-40Mbaud/s | |
Error-Correcting Codes | FEC: 1/2 3/5 2/3 3/4 4/5 5/6 8/9 9/10 | |
Input Rate | 1.0-108Mbps | |
Channel Data Rate | 1-56Mbps | |
MER | ＞38dB | |
BER | 0 | |
Level Attenuation Range | 0-20dB（0.5dB step） | |
Impedance | 75Ω | |
Control | Ethernet Port | 10/100M RJ45 |
General Features | Size | 482mm×280mm×44mm |
Temperature Range | 0~45°C (Operation); -20~80°C (Storage) | |
Power | 100-240VAC, 50Hz, 25W |
