HPR8500
CATCAST

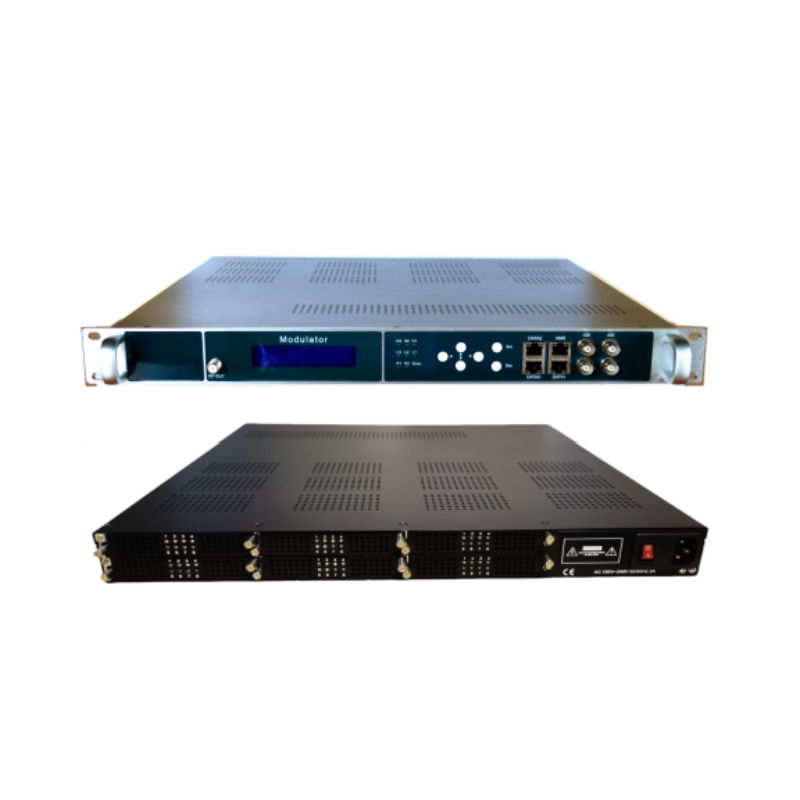

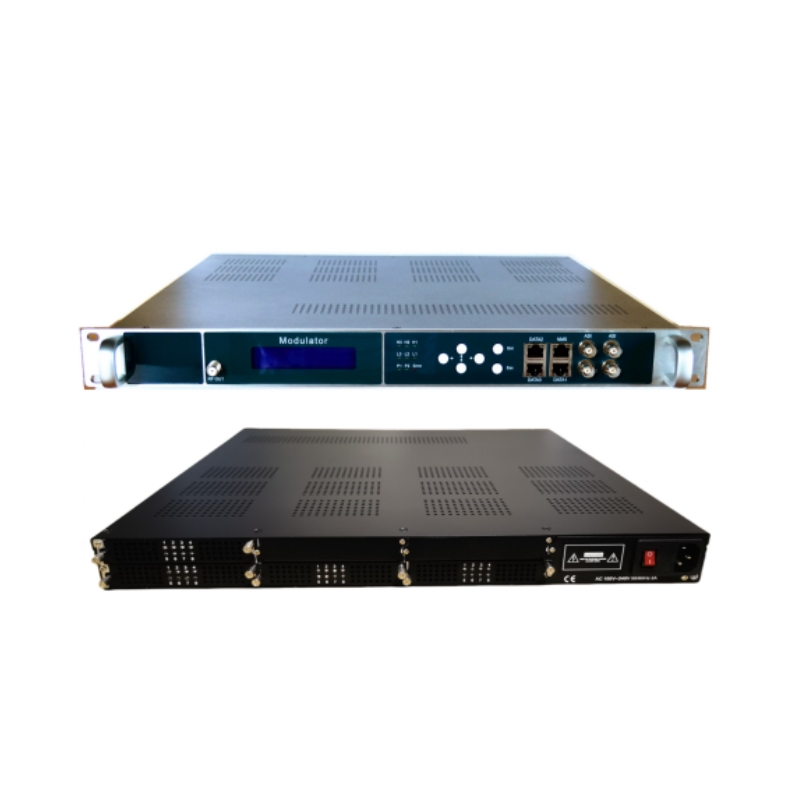

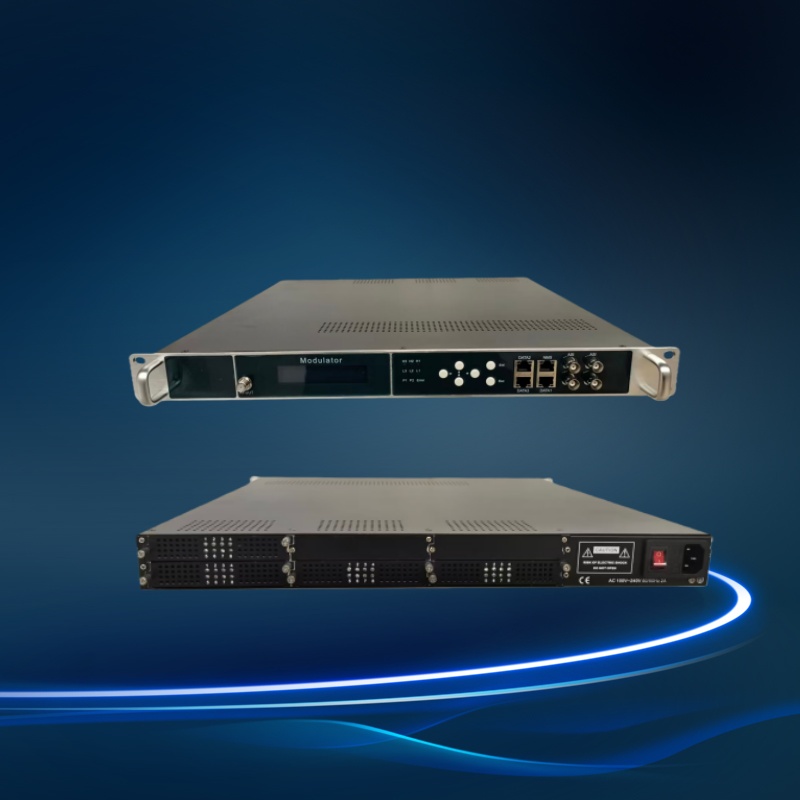

Product Overview
HPR8500 series IP to 16/24/32/40/48 channels Analog modulator is the latest professional TV front-end equipment developed by Catcast for processing audio and video. The device is used for IP/ASI program input and then output via an analog modulated signal. It supports 2 GE ports inputs (Each port provides a maximum of 128 address inputs).The analog modulation mechanism adopts modular design and pluggable structure.According to customer requirements, customers can flexibly choose 16/24/32/40/48 channels output, with RF output frequencies ranging from 43.25 to 951.25MHz. In addition, the device provides 1 GE port output (5 MPTS output) and 4 ASI ports.The device has excellent performance and flexible configuration,using 1U chassis, easy to install and use.A single device integrates a complete set of front-end system functions, which is very suitable for use in hotels, clubs, hospitals, bathrooms and other TV broadcasting systems.
IP to 16 Channels Analog Modulator
IP to 24 Channels Analog Modulator
IP to 32 Channels Analog Modulator
IP to 40 Channels Analog Modulator
IP to 48 Channels Analog Modulator
System function diagram
Product features
Support maximum 2*128 IP input,UDP/RTP
Support for standard PAL or NTSC or SECAM formats
Support 16/24/32/40/48 channels outputs (optional)
Modular analog modulation channel module is adopted to facilitate equipment expansion
Support 5 MPTS output,UDP/RTP
Support 4 ASI ports (2 input and 2 output)
Supports dual power supply system (optional)
Support web-based network management and online upgrade functions
Using 1U chassis, a single device integrates a set of front-end device functions, saving installation and wiring space
Product selection
Product model | Device ports | Input | Output |
HPR8500-16 | 3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out | Maximum 2*128 IP input; 2 ASI input | 16 carrier output（2 module） 5 MPTS output 2 ASI output |
HPR8500-24 | 3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out | Maximum 2*128 IP input; 2 ASI input | 24 carrier output（3 module） 5 MPTS output 2 ASI output |
HPR8500-32 | 3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out | Maximum 2*128 IP input; 2 ASI input | 32 carrier output（4 module） 5 MPTS output 2 ASI output |
HPR8500-40 | 3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out | Maximum 2*128 IP input; 2 ASI input | 40 carrier output（5 module） 5 MPTS output 2 ASI output |
| HPR8500-48 | 3 Gigabit port； 1 NMS port； 4 ASI port； 1 RF out | Maximum 2*128 IP input; 2 ASI input | 48 carrier output（6 module） 5 MPTS output 2 ASI output |
NOTE: A single analog modulation module provides 8 carrier outputs. Customers can choose the number of analog modulation modules according to their needs. Currently, the support extends to up to 6 modules and supports up to 48 carrier analog outputs. Disconnect the power supply before inserting or expanding a module for safety. | |||

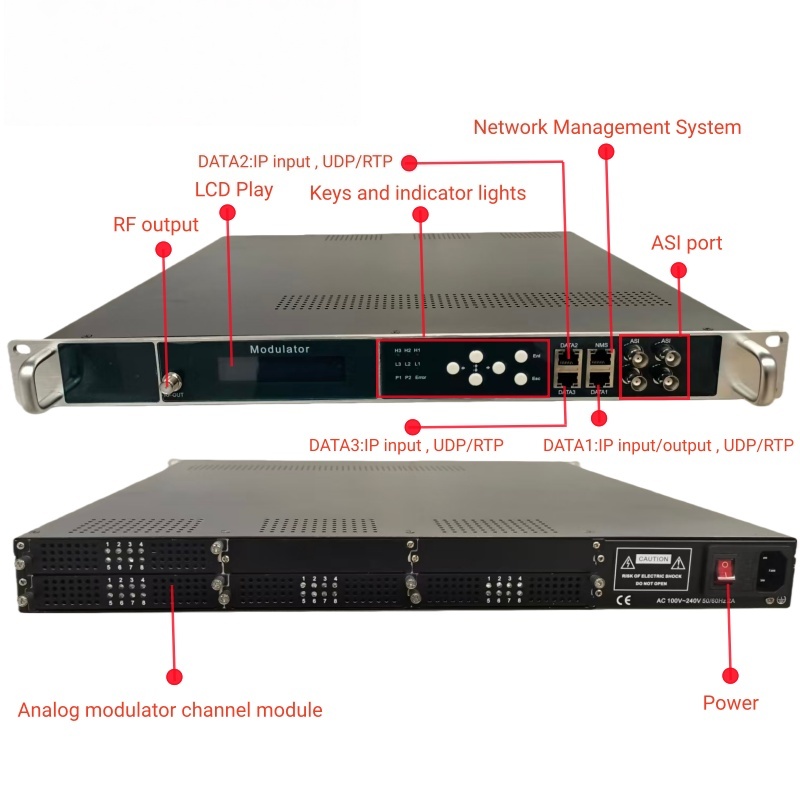

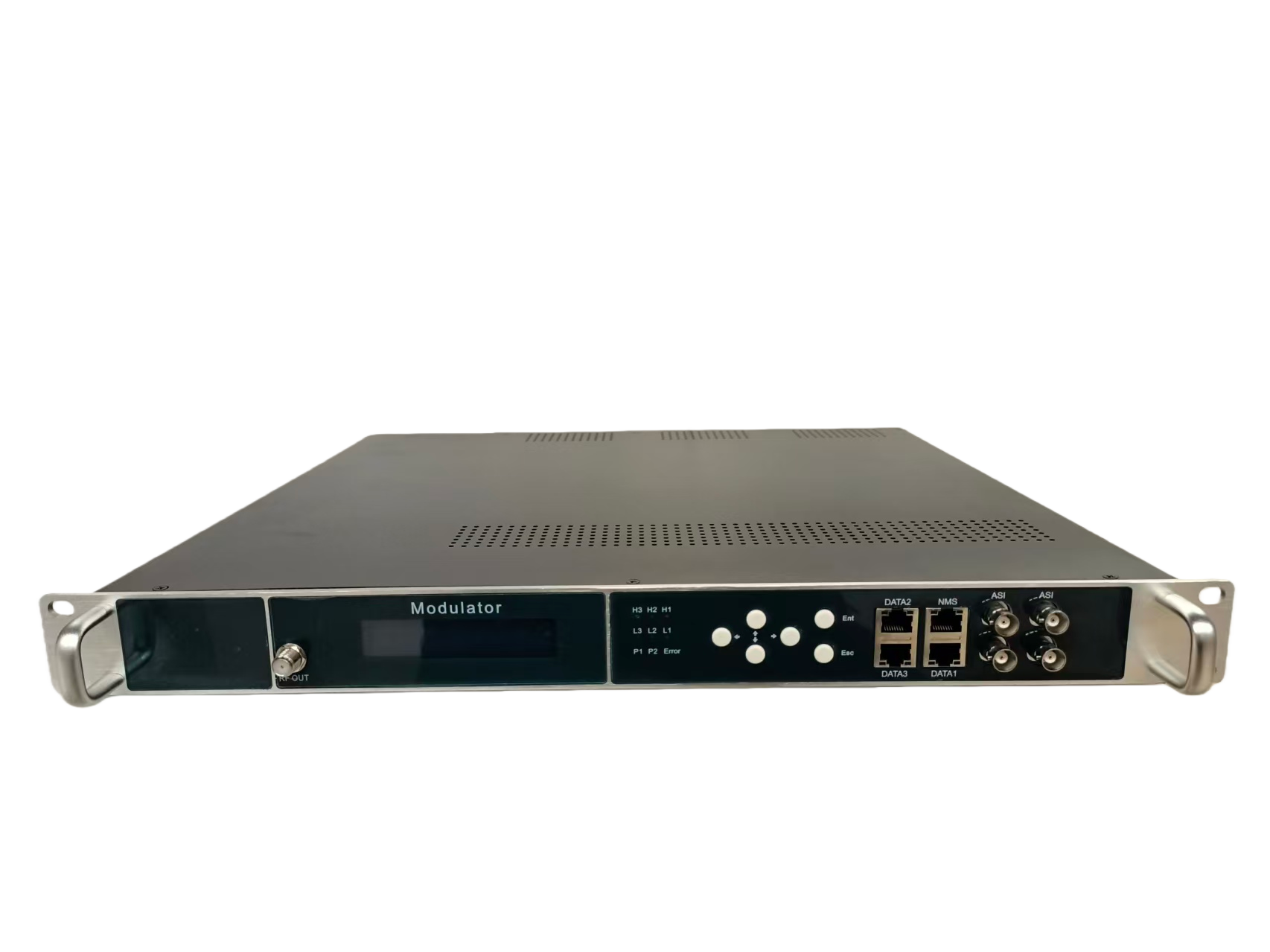

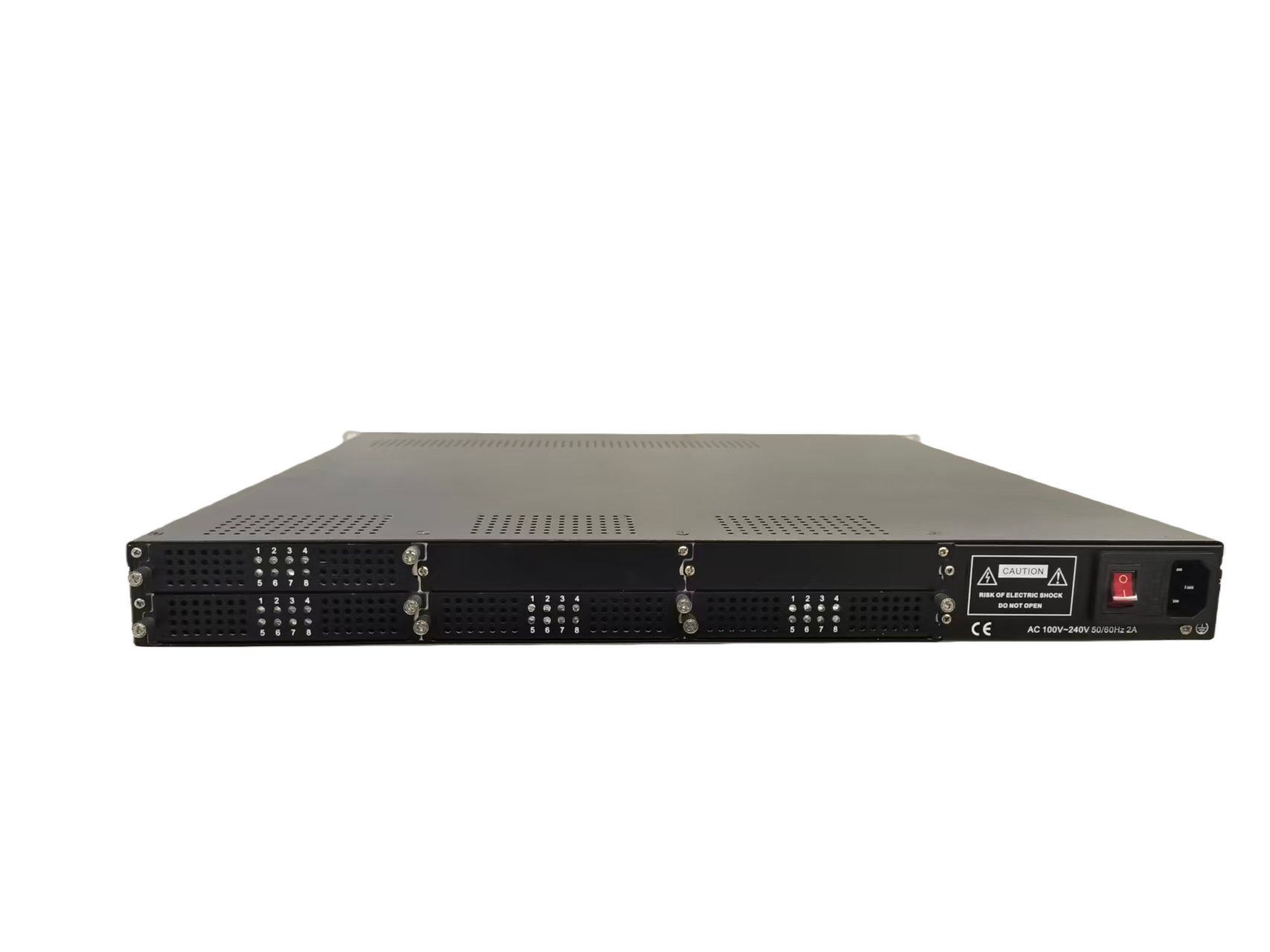

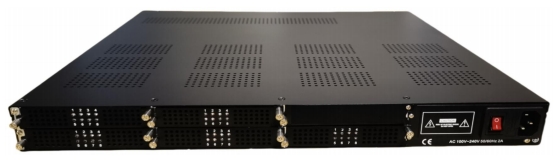

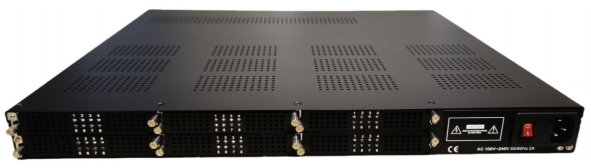

Product structure
Number | Interface Overview |
1 | RF out |
2 | LCD |
3 | Keys and indicator lights |
4 | NMS: Network Management System |
DATA1: IP output , UDP/RTP | |
DATA2/DATA3: IP input,UDP/RTP | |
5 | ASI |
6 | Analog modulator channel module (Supports a maximum of 4 modules) |
7 | Power Switch (The second power module is optional) |
Specifications
Input | 2 GE ports input (Each port supports 128 IP addresses input) | |
2 ASI input | ||
Output | 16/24/32 carrier output（optional） | |
1 GE output,5 MPTS output | ||
2 ASI output | ||
Data protocol | protocol | UDP/RTP, 7 packets, SPTS, MPTS |
Transport protocol | TS over UDP/RTP，Unicast/multicast，IGMP V2/V3 | |
Packet length | 188/204 Bytes | |
Decoding | Video | HEVC/H. 265,H.264/AVC Level 4.1 HP, MPEG-2 MP@HL |
Audio | MPEG-1/2 Layer 1/2, AAC,AC3 | |
Resolution | HEVC/H.265: 1080@60P,1080@60I,1080@50P, 1080@50I,720@60P, 720@50P; H.264/AVC: 1080@60I, 1080@50P, 1080@50I,1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I: MPEG2: 1080@60I,1080@50I,720@60P, 720@50P,576@50I, 480@60I; | |
Display ratio | 4:3/16:9 | |
Modulation | Carrier channel | 16/24/32/40/48 |
Impedance | 75Ω,F connector | |
Frequency range | 43.25~951.25MHz | |
Output bandwidth | 384MHz | |
Output level | -35 ~-5dBm | |
Television standard | PAL,N/NC/M；NTSC,M/J/4.43；SECAM | |
SNR | ≥50dB | |
Miscellaneous | Size(L×W×H) | 482mm×410mm×44mm |
Temperature | 0~45℃(Operation)；-20~80℃(Storage) | |
Voltage range | AC100~240V，50/60Hz | |
