HPR3624M
Catcast

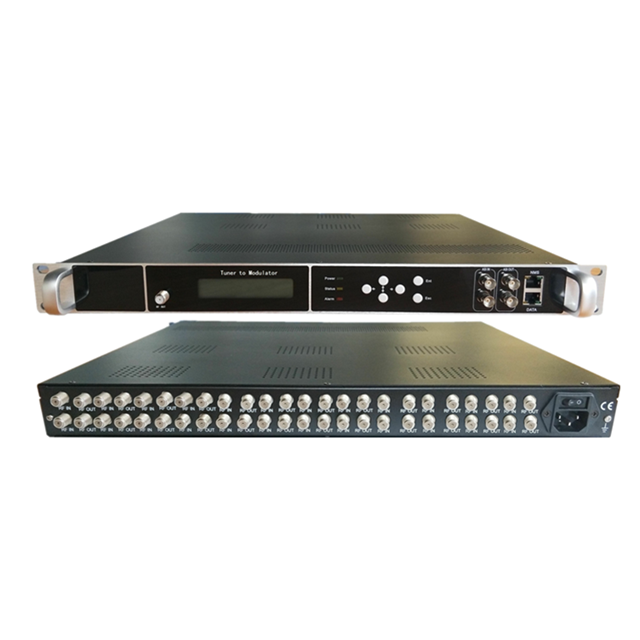

HPR3624M Tuner to Modulator
Product Overview
HPR3624M Tuner to Modulator is professional high integration device which includes tuner demodulation,multiplexing and modulation. It supports 4/8/ 12/ 16/20/24 tuner input ，support different types of tuner (DVB-S/S2 、DVB-S/S2/S2X 、DVB-C 、DVB-T/T2 、ATSC 、ISDBT) input, IP input,2 ASI input, 2 ASI output, IP output, 4/8/16/24 carriers modulated RF output (DVB-T/ATSC/ISDBT/DTMB optional). or 4/8/16/32 carriers DVB-C modulated RF output. It supports Biss descrambling function. In conclusion, Its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end,digital TV broadcasting, IPTV live broadcasting etc.
Key Features
. 4/8/12/16/20/24 tuner input; support Biss descrambling function(DVB-S/S2, DVB-S/S2/S2X, DVB-C, DVB-T/T2, ATSC, ISDBT tuner) optional
. Support different types of tuner ( DVB-S/S2、DVB-S/S2/S2X 、DVB-C 、DVB-T/T2、 ATSC 、ISDBT ) input, or mixed use ( for example: 4 DVB-S/S2 and 4 DVB-T/T2 tuner input at the same time, making up 8 tuners input )
. IP input, 128 SPTS or MPTS, UDP unicast or multicast,1000M Ethernet port for re-multiplexing and modulation
. 2 ASI input , for re-multiplexing and modulation
. IP output 128 SPTS or 8 MPTS , UDP unicast/multicast,1000M Ethernet port
. 4/8/16/24 carriers modulated RF output (DVB-T/ATSC/ISDBT/DTMB optional)
. 4/8/16/32 carriers modulated RF DVB-C output , optional
. 2 ASI Independent output as copy of 4 MPTS
. Support “Null PKT Filter ” function
. Support PID Remapping/ PCR accurate adjusting
. PID pass
. LCD 、key function
. Control via web management (Web-NMS), and easy updates via web
Specifications
DVB-S/S2 tuner | Demodulation Standard | DVB-S compliant DVB-S2 compliant VCM and ACM supported | ||
Maximum Symbol Rate (DVB-S2)
| Normal FEC Frame : 64800 bits Symbol Rates: QPSK 1- 60 MSps 8APSK 1-60MSps 16APSK 1-58 MSps 32APSK 1-55 MSps | |||
Maximum Symbol Rate (DVB-S) | Symbol Rates:1-54 MSps | |||
Half SyOuest Baseband filler (Roll off factor) | 0.35 for DVB-S 0.15 to 0.35 for DVB-S2 | |||
Code Rate | *DVB-S : OPSK:1/2, 2/3, 3/4, 4/5, 5/6, 7/8 *DVB-S2: OPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | |||
BISS Descrambling | Mode 1, Mode E | |||
DisEqC | DiSEqC 2.0 compliant | |||
DVB-S/S2/S2X tuner | Demodulation Standard | DVB-S compliant DVB-S2/S2X compliant VCM and ACM supported | ||
Maximum Symbol Rate(DVB-S2/S2X) | Normal FEC Frame : 64800 bits Symbol Rates: QPSK 1- 60 MSpS 16APSK 1-58 MSpS 32APSK 1-55 MSpS 64APSK 1-34 MSpS | |||
Maximum Symbol Rate(DVB-S) | Symbol Rates:1-54 MSps | |||
Half SyOuest Baseband filler (Roll off factor) | 0.35 for DVB-S 0.15 to 0.35 for DVB-S2 0.05 to 0.35 for DVB-S2X | |||
Code Rate | *DVB-S : OPSK:1/2, 2/3, 3/4, 4/5, 5/6, 7/8 *DVB-S2: OPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 *DVB-S2X: 64APSK: 11/15, 7/9, 4/5, 5/6 | |||
BISS Descrambling | Mode 1, Mode E | |||
DisEqC | DiSEqC 2.0 compliant | |||
DVB-T/T2 tuner | Frequency | 50~960MHz | ||
Bandwidth | 6/7/8 M bandwidth | |||
DVB-C tuner | Standard | J.83A(DVB-C), J.83B, J.83C | ||
Frequency | 50~960MHZ | |||
Constellation | 16/32/64/128/256 QAM | |||
ISDB-T tuner | Frequency | 50~960MHZ | ||
ATSC tuner | Frequency | 50~960MHZ | ||
Bandwidth | 6M bandwidth | |||
Constellation | 8VSB | |||
Input | 4/8/ 12/ 16/20/24 tuner, (DVB-S/S2, DVB-S/S2/S2X,DVB-C,DVB-T/T2,ATSC,ISDBT optional) | |||
2 ASI, DVB standard, BNC connector | ||||
IP SPTS/MPTS, UDP unicast/multicast, 1000M ethernet port | ||||
Output | 2 ASI output (optional) | |||
IP output（128 SPTS or 8 MPTS） UDP and RTP protocol, UDP unicast/multicast, 1000M ethernet port | ||||
4/8/16/24 carriers modulated RF output,(DVB-T/ATSC/ISDBT/DTMB optional) 4/8/16/32 carriers modulated DVB-C RF output, optional | ||||
Multiplexing | Maximum PID Remapping | 180 output pids per channel | ||
Function | PID remapping ( automatically or manually) | |||
Accurate PCR adjusting | ||||
Modulation | DVB-T | RF number | 4/8/16/24 RF DVB-T output | |
Standard | EN300744 | |||
FFT mode | 2K | |||
Bandwidth | 6M, 7M, 8M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | |||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42 dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~ -10 dBm, 0.1db step | |||
DVB-C | RF number | 4/8/16/32 RF DVB-C output | ||
Standard | EN300 429/ITU-T J.83A/B/C | |||
MER | ≥42db | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0.1dBm step | |||
Symbol Rate | 5.0Msps~7.0Msps,1ksps step | |||
Standard | J.83A | J.83B/J.83C | ||
Constellation | 16/32/64/128/256 QAM | 64/256 QAM | ||
Bandwidth | 8M | 6M | ||
ATSC | RF number | 4/8/16/24 RF ATSC output | ||
Standard | ATSC A/53 | |||
Bandwidth | 6M | |||
Constellation | 8VSB | |||
FEC | RS(208 188)+Trellis | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0.1dBm step | |||
ISDB-T | RF number | 4/8/16/24 RF ISDB-T output | ||
Standard | ARIB STD-B31 | |||
Bandwidth | 6M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||
Transmission mode | 2K | |||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -34~-10dBm , 0.1dBm step | |||
DTMB | RF number | 4/8/16/24 RF DTMB output | ||
Standard | DTMB GB20600-2006 | |||
Bandwidth | 8M bandwidth | |||
Constellation | 4QAM,16QAM, 32QAM, 64QAM | |||
Qty. of modulation carriers | Single carrier or Multi-carriers | |||
Guard intervals | PN420, PN595, PN945 | |||
Internal error correction code | LDPC | |||
Encoding efficiency | 0.4, 0.6, 0.8 | |||
Interlace depth | 240, 720 | |||
MER | ≥42dB | |||
ACLR | 55dB | |||
Frequency range | 110 ~ 960MHz, in 1KHz steps | |||
RF output level | -26dBm ~ -10dBm, in 0.5dB steps | |||
System function | Network management(Web-NMS) | |||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension (W×L×H) | 482mm×480mm×45mm | ||
Weight | 6-9kg | |||
Environment | 0~45℃(work)；-20~80℃(storage) | |||
Power requirements | AC100~240V，50/60Hz | |||
