HP8544D
Catcast

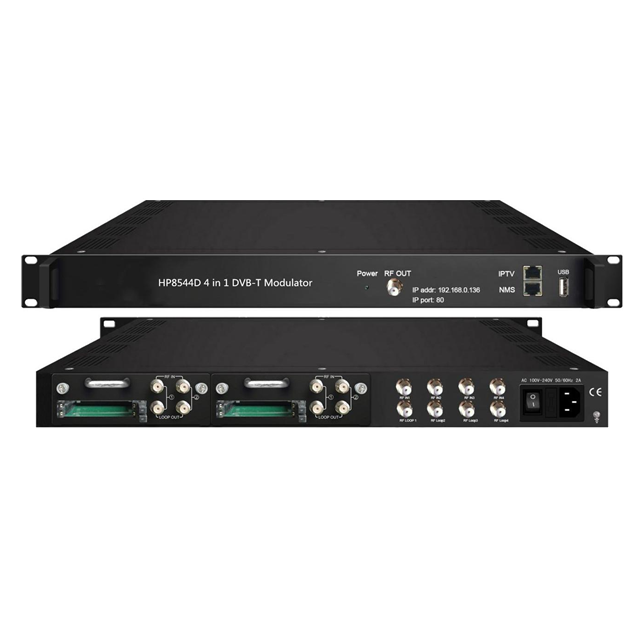

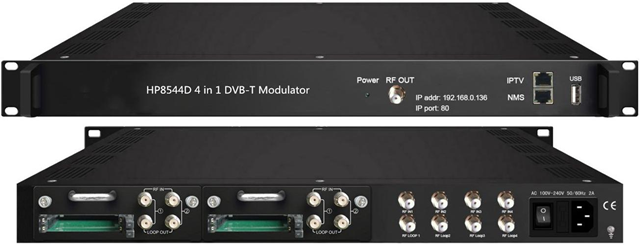

HP8544D 4 in 1 DVB-T Modulator
Outline
HP8544D is a high-performance and cost-effective DVB-T modulator designed by Catcast. It has 8 tuner inputs. After the multiplexing and modulating process, it gives 4 DVB-T non-adjacent carriers output through one RF port. To meet customers’ various requirements, this device is also equipped with a data port for IP input and output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, the four CAMs/CIs accompanied by and BISS modules can descramble the input programs from 8 Tuners and IP.
HP8544D can be upgraded and controlled through a network system, which allows it to be widely used in digital broadcasting networks and provides good signals for scientific laboratories and DVB-T STBs.
Features
* 4 Tuner (DVB-C/T/(T)/S/S2/S2X/ISDBT optional) + 4 Tuner with CAM (DVB-C/T/(T)/S/S2/S2X/ATSC/ISDBT optional)
* Demodulation Module (4*RF/Loop out + 4*CAM + 4*Smartcard)
* One CAM can decrypt multiple programs from Tuners and IP
* Maximum 128 IP input (MPTS/SPTS) over UDP and RTP protocol
* 4 groups multiplexing +4 groups DVB-T modulating
* 128 IP input, 4 IP MPTS output (Version 1); Or: 32 SPTS IP out, without IP input or MPTS output (Version 2)
* Support BISS descrambling
* Support accurate PCR adjusting, PID Remapping, PSI/SI rebuilding and editing, A/V PID filtering
* Web-based NMS management

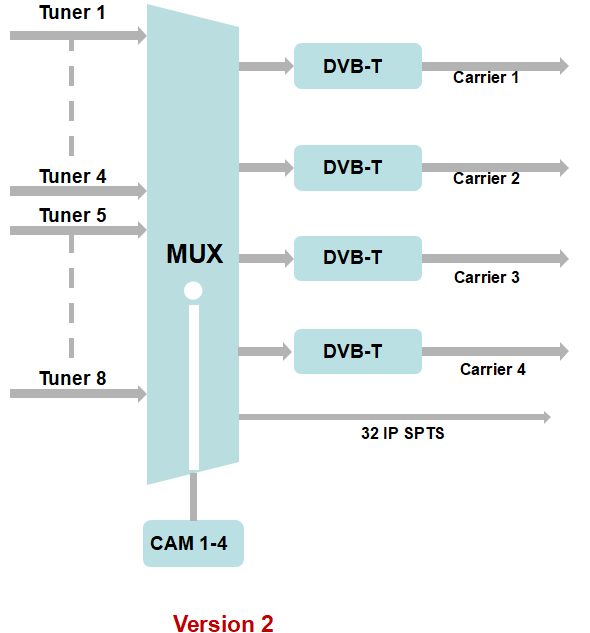

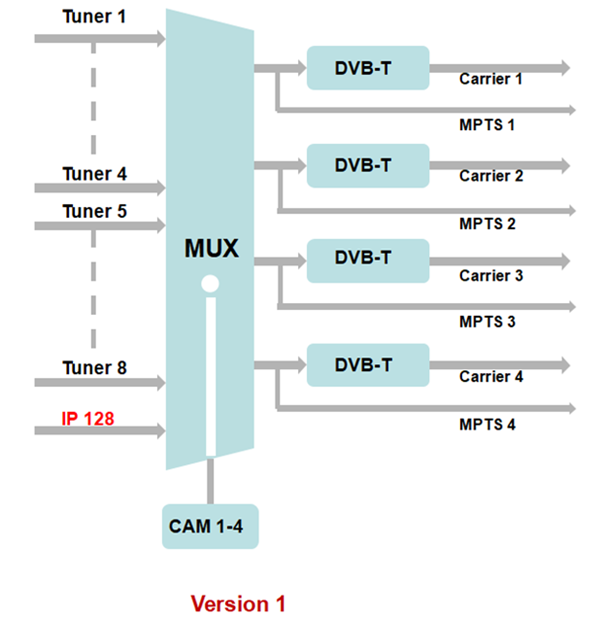

Principle Chart
Specifications
Input | 4 Tuner (DVB-C/T/(T)/S/S2/S2X/ISDBT optional) + 4 Tuner with CAM (DVB-C/T/(T)/S/S2/S2X/ATSC/ISDBT optional); 128 IP (SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M, Unicast/Multicast (IP input is for Version 1 only) | |||||||
Tuner Section | Multi-mode tuners switchable (New) | DVB-C | Input Frequency | 60~890 MHz | ||||
Standard | J.83A, J.83C | J.83B | ||||||
Constellation | 16/32/64/128/256 QAM | 64/256 QAM | ||||||
DVB-T/(T) | Input Frequency | 60~890 MHz | ||||||
Bandwidth | 6/7/8 M | |||||||
ISDB-T | Input Frequency | 60~890 MHz | ||||||
Version 1 | DVB-S | Input Frequency | 950-2150MHz | |||||
Symbol rate | 0.5~45Msps | |||||||
Signal Strength | -65~-25dBm | |||||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK | |||||||
DVB-S2 | Input Frequency | 950 ~2150MHz | ||||||
Symbol rate | QPSK: 1~45 Msps; 8PSK: 0.5~45 Msps | |||||||
FEC | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||||||
Constellation | QPSK, 8PSK | |||||||
Version 2 (New) | DVB-S | Input Frequency | 950 ~2150MHz | |||||
Symbol rate | 0.5~45Msps | |||||||
Signal Strength | - 65- -25dBm | |||||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||||
Constellation | QPSK | |||||||
Max input bitrate | ≤129Mbps | |||||||
DVB-S2 | Input Frequency | 950 ~2150MHz | ||||||
Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps; | |||||||
FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | |||||||
Constellation | QPSK, 8PSK, 16APSK, 32APSK | |||||||
Max input bitrate | ≤129 Mbps | |||||||
DVB-S2X | Input Frequency | 950 ~2150MHz | ||||||
Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps 8APSK/32APSK: 0.5~40Msps | |||||||
FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 | |||||||
Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK | |||||||
Max input bitrate | ≤129 Mbps | |||||||
ATSC-T | Input Frequency | 54~858MHz | ||||||
Bandwidth | 6M | |||||||
Constellation | 8VSB | |||||||
Descrambling | CAM/CI | 4 sets | ||||||
BISS Descrambling | Mode 1, Mode E (descramble individual program) | |||||||
Multiplexing | Maximum PID Remapping | 256 per input channel | ||||||
Function | A/V PID filtering | |||||||
PID Remapping | ||||||||
Accurate PCR adjusting | ||||||||
Generate PSI/SI table automatically | ||||||||
Modulation | DVB-T | Standard | EN300744 | |||||
FFT mode | 2K | |||||||
Bandwidth | 6M, 7M, 8M | |||||||
Constellation | QPSK, 16QAM, 64QAM | |||||||
Symbol rate | 5.000~7.000Msps adjustable | |||||||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | |||||||
| Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||||
| MER | ≥42 dB | |||||||
| RF frequency | 50~960MHz, 1KHz step | |||||||
| RF out | 4*DVB-T non-adjacent carriers combined output, 40M total bandwidth limitation | |||||||
| RF output level | -28~ -3 dBm (79~104 dbµV), 0.1db step | |||||||
Stream out | UDP and RTP protocol (RJ45, 1000M/100M Unicast/Multicast) 4*MPTS out --- Version 1 ; 32*SPTS out ---Version 2 | |||||||
System | web-based NMS support | |||||||
Ethernet software upgrading | ||||||||
General | Dimension | 482mm×300mm×44.5mm (W*D*H) | ||||||
Temperature | 0~45℃(Operation) ; -20~80℃(Storage) | |||||||
Power | AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ | |||||||
