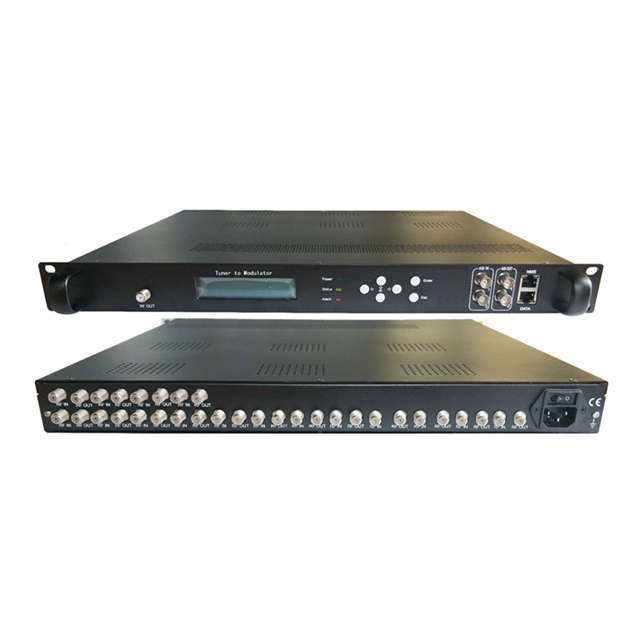

HP1608C 16 FTA DVB-S2 to 8 DVB-T/ISDBT/DVB-C/ATSC RF Modulator
Summary
HP1608C 16 DVB-S/S2(DVB-C/DVB-T/ATSC/ISDB-T Optional) Tuner to 8 DVB-T (DVB-C/ISDB-T/ATSC Optional) Modulator is a professional high integration device which includes tuner demodulation, multiplexing, and modulation. It support 16 DVB-S/S2(DVB-C/DVB-T/ATSC/ISDB-T Optional) tuner input, 8 DVB-T (DVB-C/ISDB-T/ATSC Optional) carriers RF output, it also support 1000M IP output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
Key Features
16 FTA DVB-S/S2(DVB-C/DVB-T/ATSC/ISDB-T Optional) tuner input;
1000M IP output over UDP and RTP protocol(MPTS and SPTS)
8 DVB-T (DVB-C/ISDB-T/ATSC Optional) carriers RF output
2 ASI inputs
2 ASI Independent output (optional) as copy of 5MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD、key function
Control via web management, and easy updates via web
Specification
Input | 16 FTA DVB-S/S2 tuner inputs | ||
2 ASI inputs | |||
1000M IP input | |||
Output | 8 ISDB-T carriers RF output | ||
2 ASI output | |||
IP output（SPTS and MPTS）IP output over UDP and RTP protocol | |||
Multiplexing | Maximum PID Remapping | 180 output pids per channel | |
Function | PID remapping ( automatically or manually) | ||
Accurate PCR adjusting | |||
Modulator | DVB-T | RF number | 8 RF DVB-T output |
Standard | EN300744 | ||
FFT mode | 2K | ||
bandwidth | 6M, 7M, 8M | ||
Constellation | QPSK, 16QAM, 64QAM | ||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
MER | ≥42 dB | ||
RF frequency | 50~960MHz, 1KHz step | ||
RFoutput level | -34~ -10 dBm, 0.1db step | ||
DVB-C | RF number | 8 RF DVB-C output | |
Standard | EN300 429/ITU-T J.83A/B/C | ||
MER | ≥42db | ||
RF frequency | 50~960MHz, 1KHz step | ||
RFoutput level | -34~-10dBm , 0.1dBm step | ||
Symbol Rate | 5.0Msps~7.0Msps,1ksps stepd | ||
J.83A | J.83B/J.83C | |||
Constellation | 16/32/64/128/256Q AM | 64/256 QAM | ||
Bandwidth | 8M | 6M | ||
ATSC | RF number | 8 RF ATSC output | ||
Standard | ATSC A/53 | |||
Bandwidth | 6M | |||
Constellation | 8VSB | |||
FEC | RS(208 188)+Trellis | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RFoutput level | -34~-10dBm , 0.1dBm step | |||
ISDB-T | RF number | 8 RF ISDB-T output | ||
Standard | ARIB STD-B31 | |||
Bandwidth | 6M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||
Transmission Mode | 2K | |||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RFoutput level | -34~-10dBm , 0.1dBm step | |||
System function | Network management(WEB) | |||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension (W×L×H) | 550mm×515mm×140mm | ||
weight | 6kg | |||
Environment | 0~45℃(work)；-20~80℃(storage) | |||
Power requirements | AC100~240V，50/60Hz | |||
