HP 5in Series TV Multiswitch

HP 5in series TV multiswitch

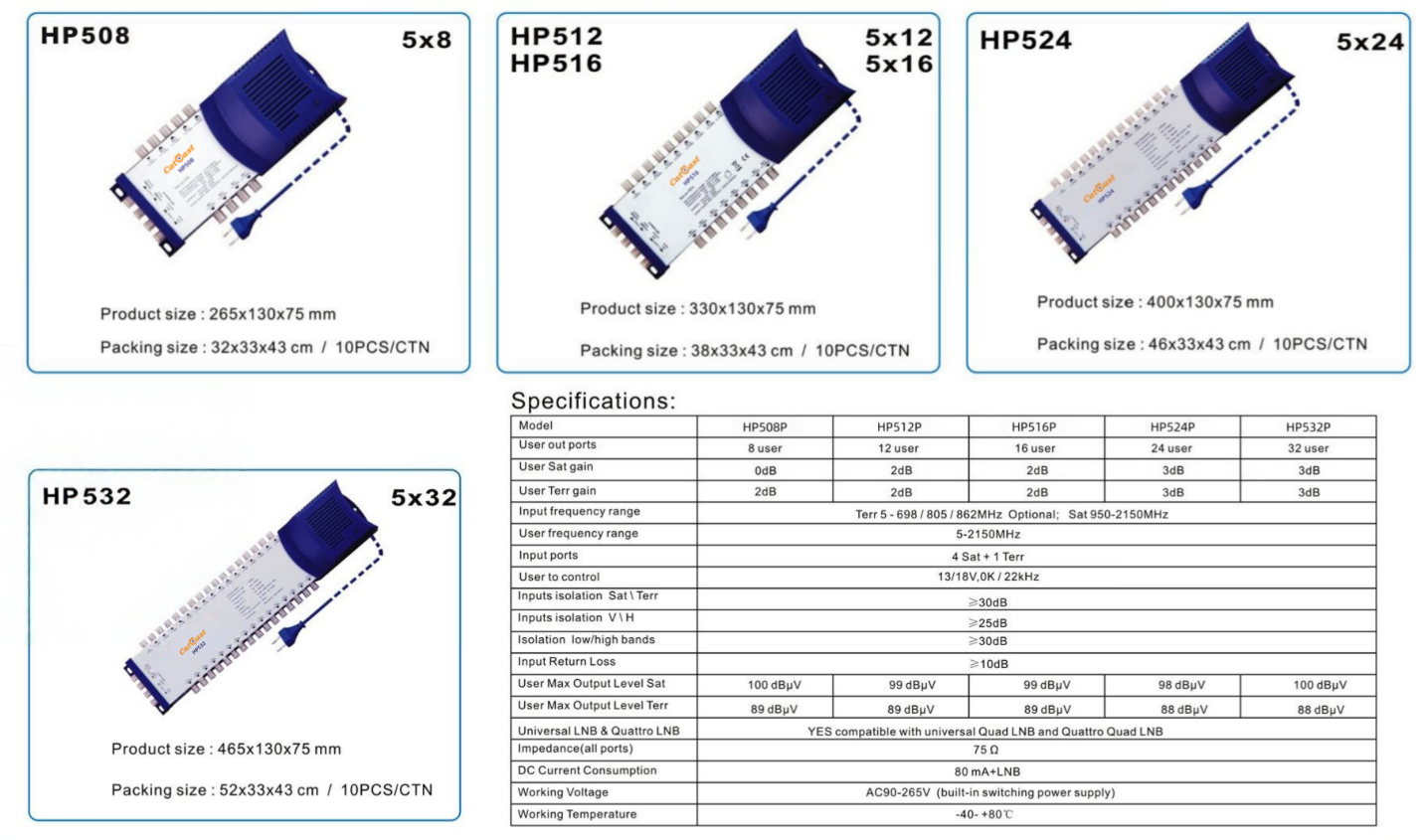

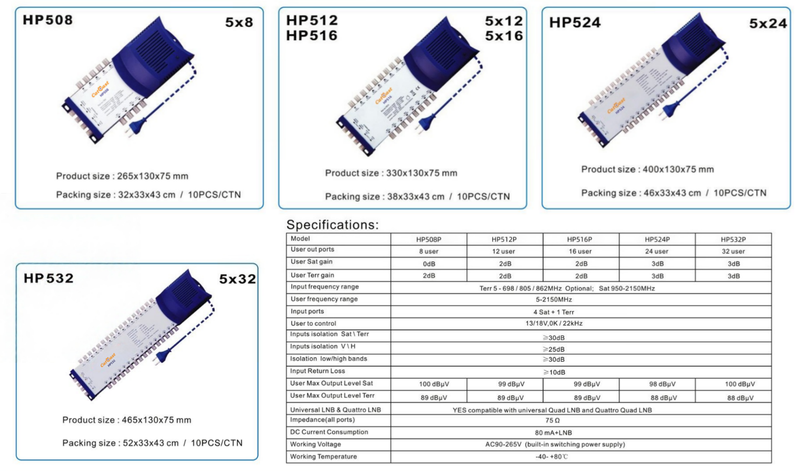

• Terminal A series：5 in stand alone multiswitch Built in power supply

Terminal multiSwitch Built-in AC90V ~ 265V switching power supply
4 satellite if inputs and 1 terrestrial TV input
Control signal of DVB to switch: 13V /18V, 0/ 22K.
Built in amplifierr is used to compensate the signal loss of the user cable.
Multi switch built-in 22khz signal generator, compatible with universal Quad LNB and Quattro Quad LNB

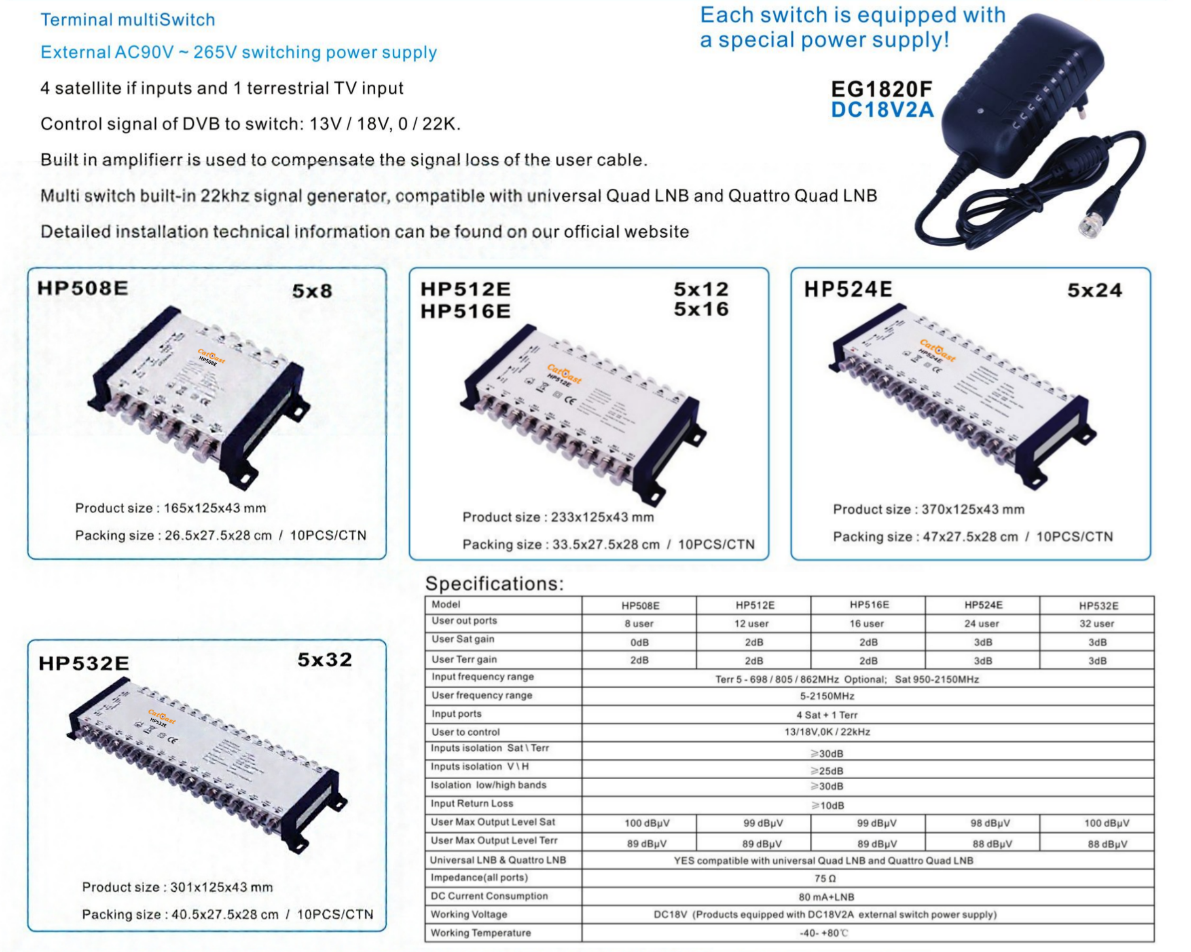

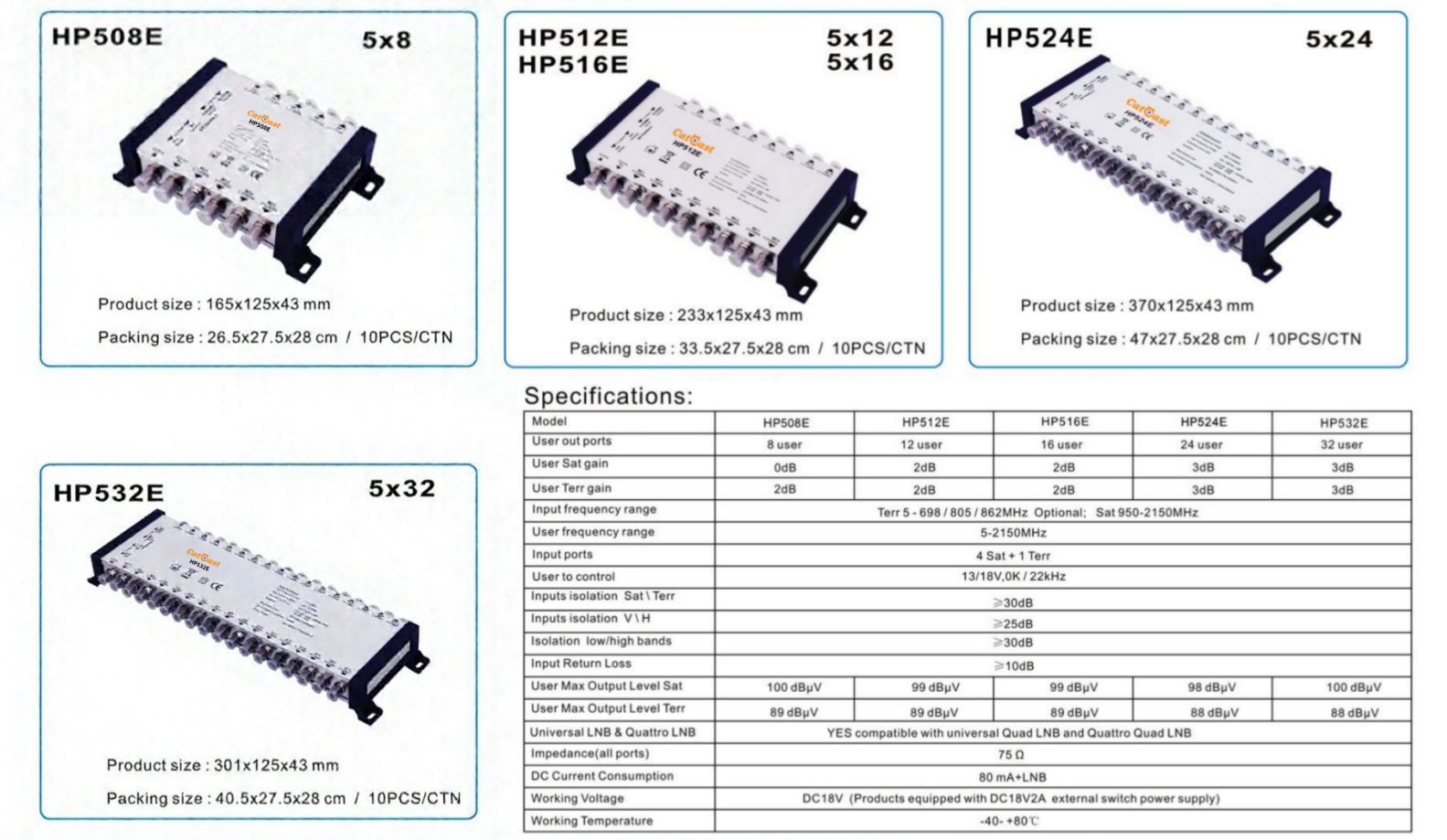

• Terminal B series： 5 in Terminal multiswitch External power supply

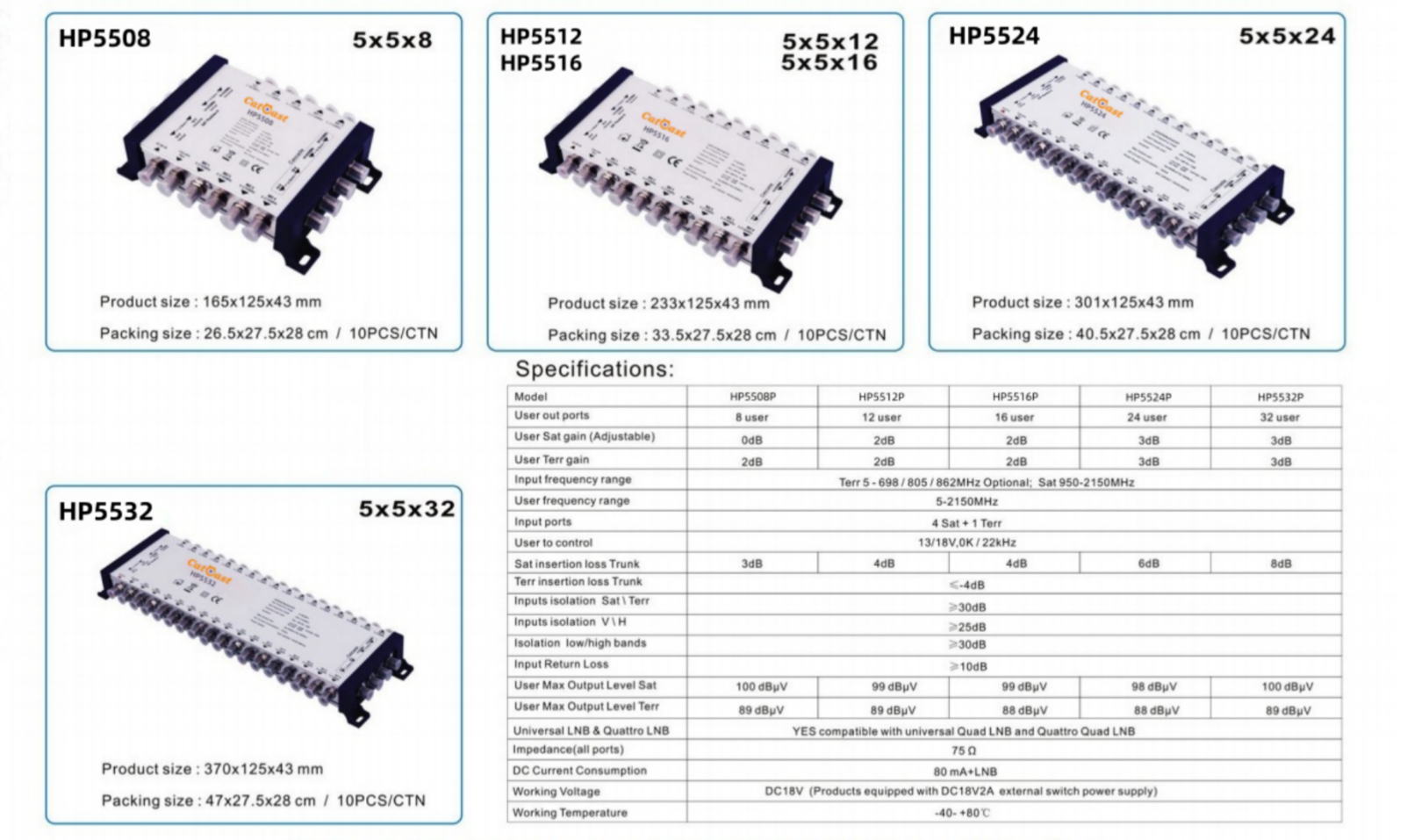

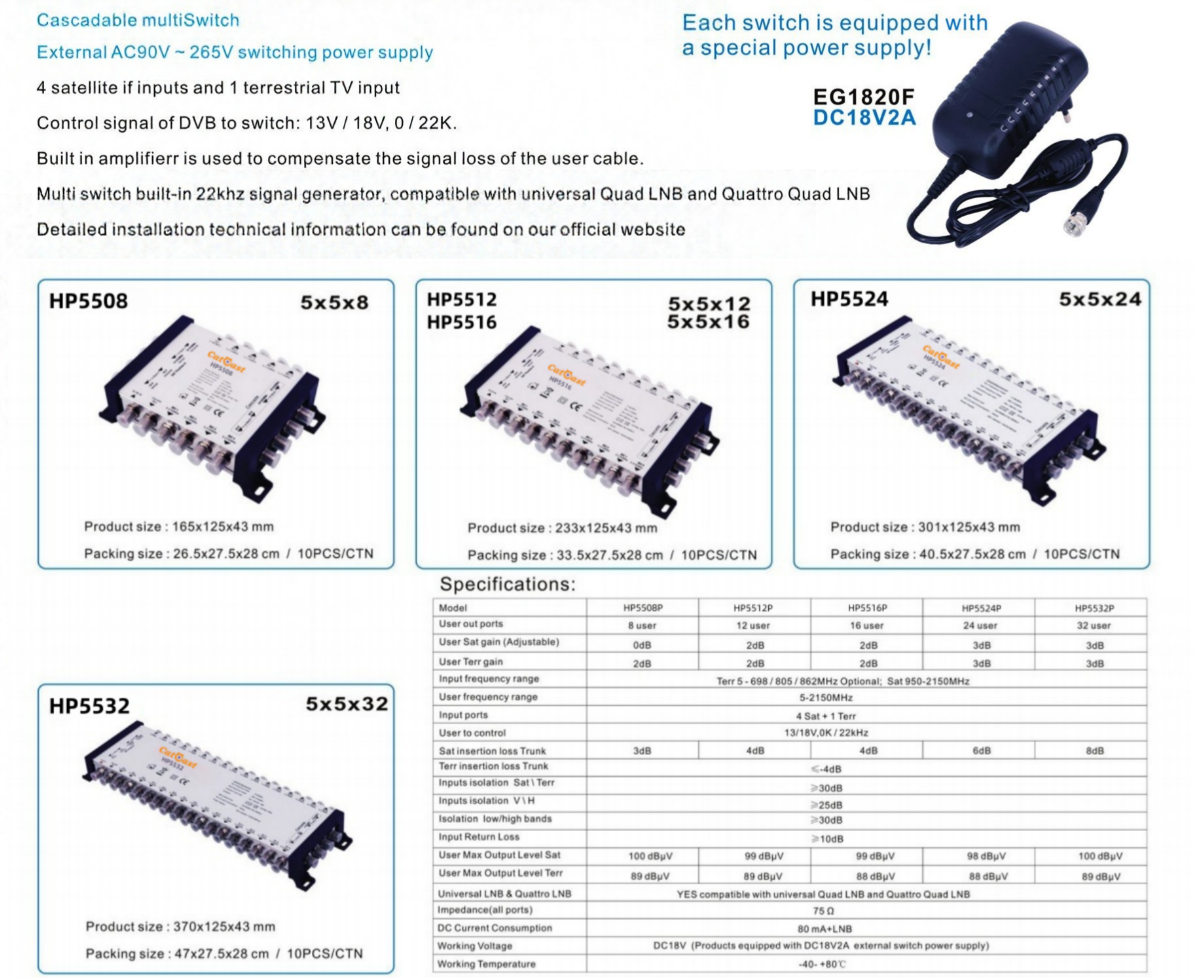

• Cascadable A series : 5 in Cascadable multiswitch External power supply
