HP7000
CATCAST

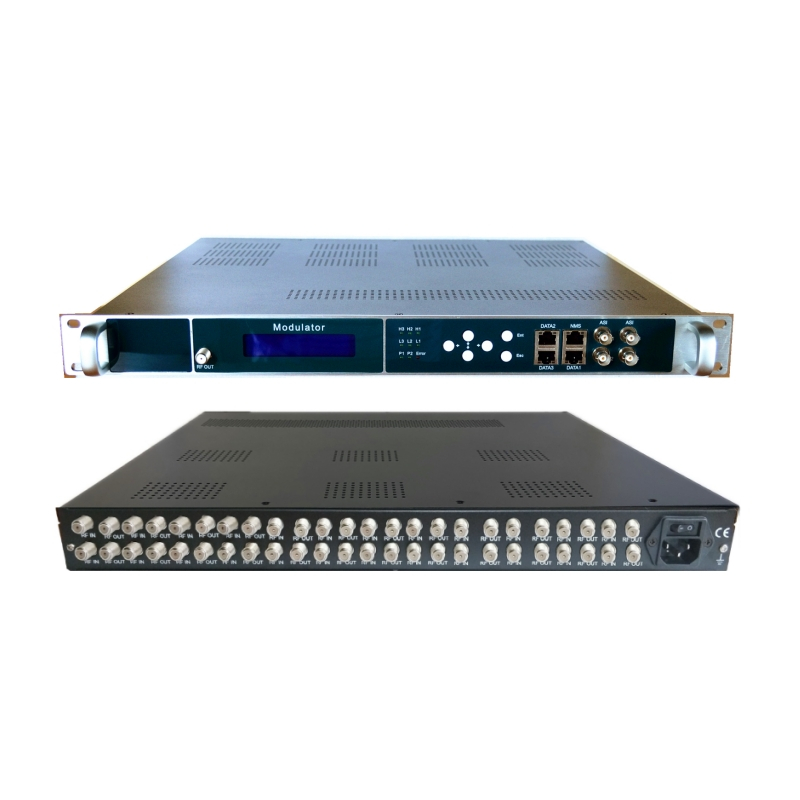

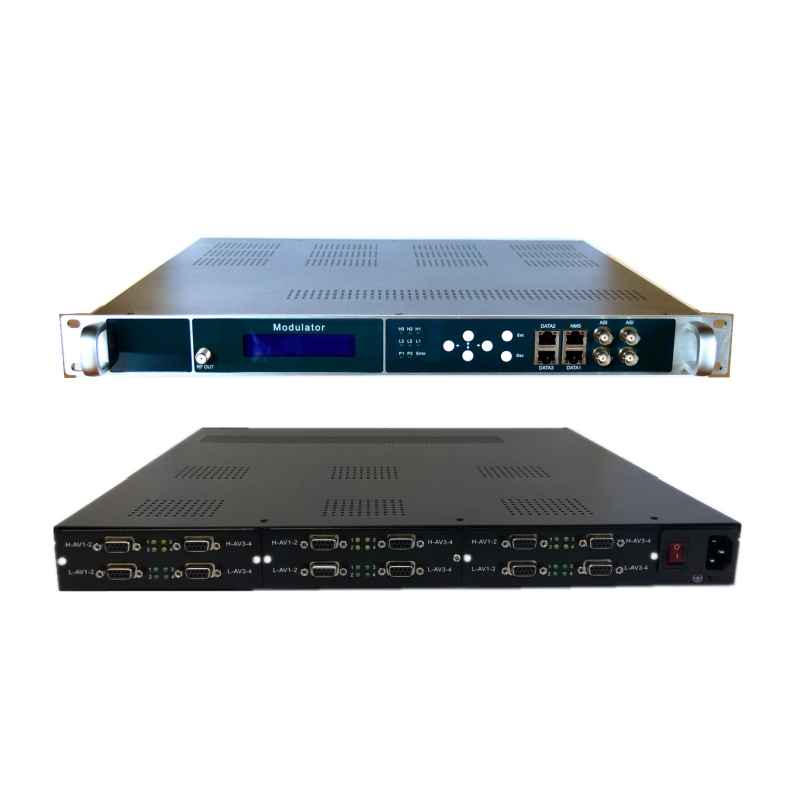

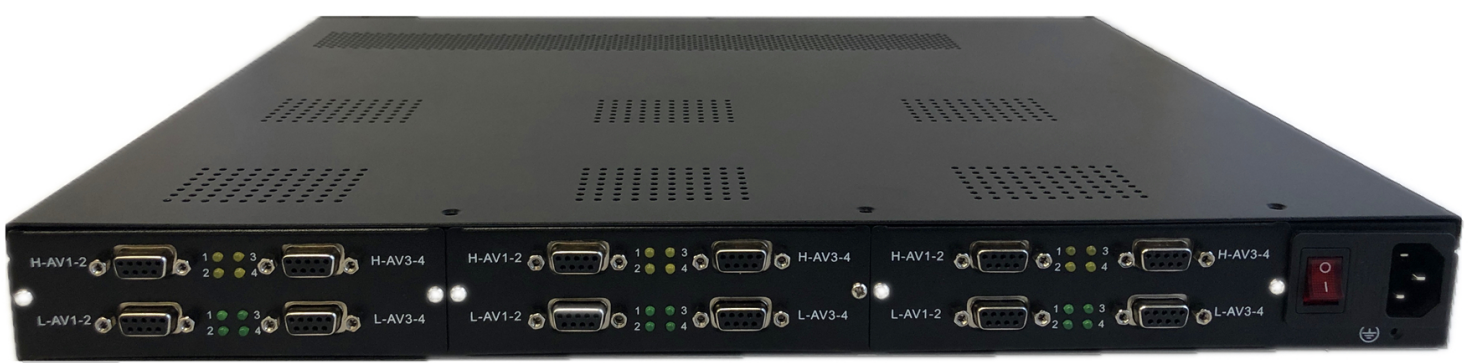

HP7024SD 24 channel CVBS SD input
HP7024HD 24 channel HDMI input
HP7024FTA 24 FTA Tuner input

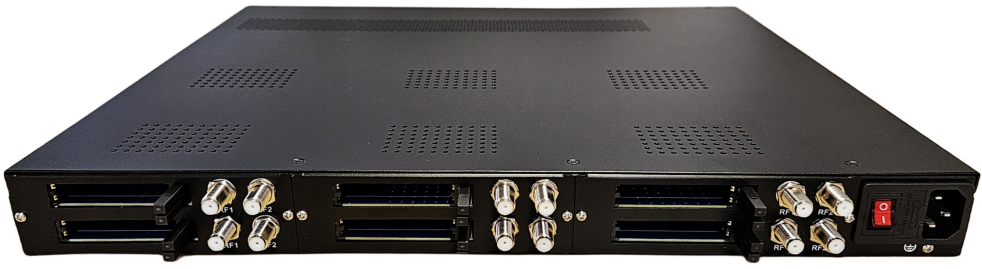

HP7012CI 12 CAM-card CI tuner input

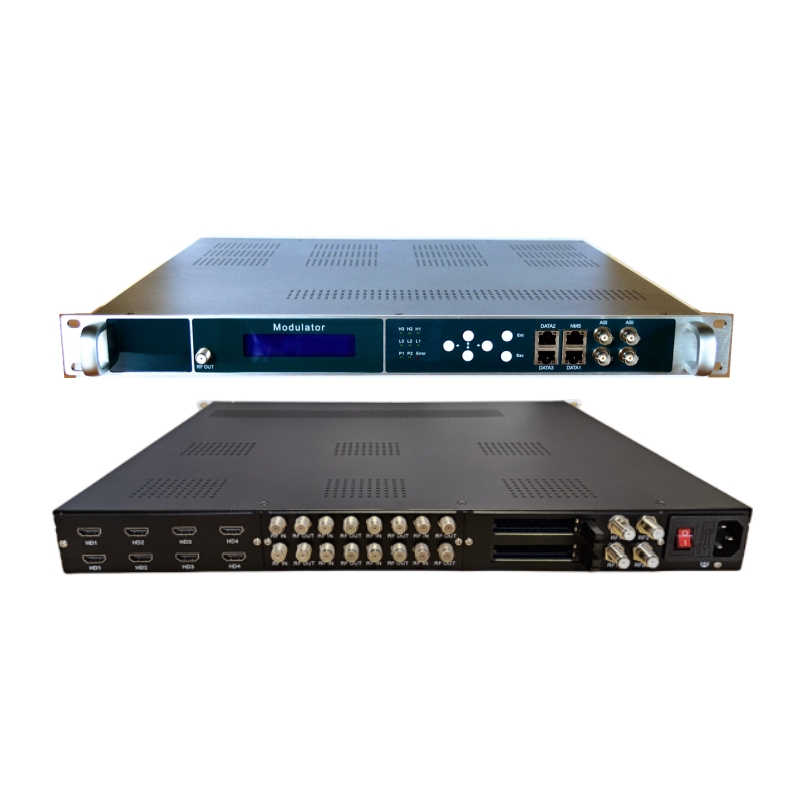

HP70-8FTA+8SD+8HD Multi interface input

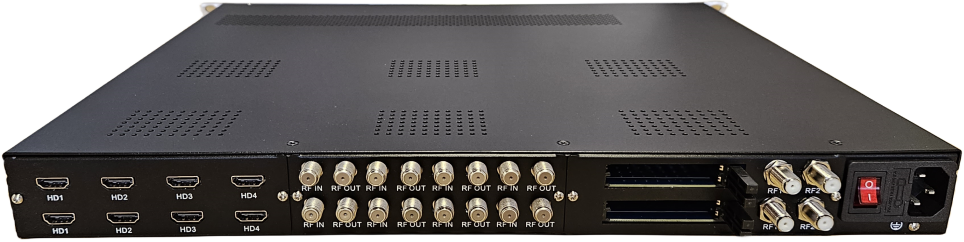

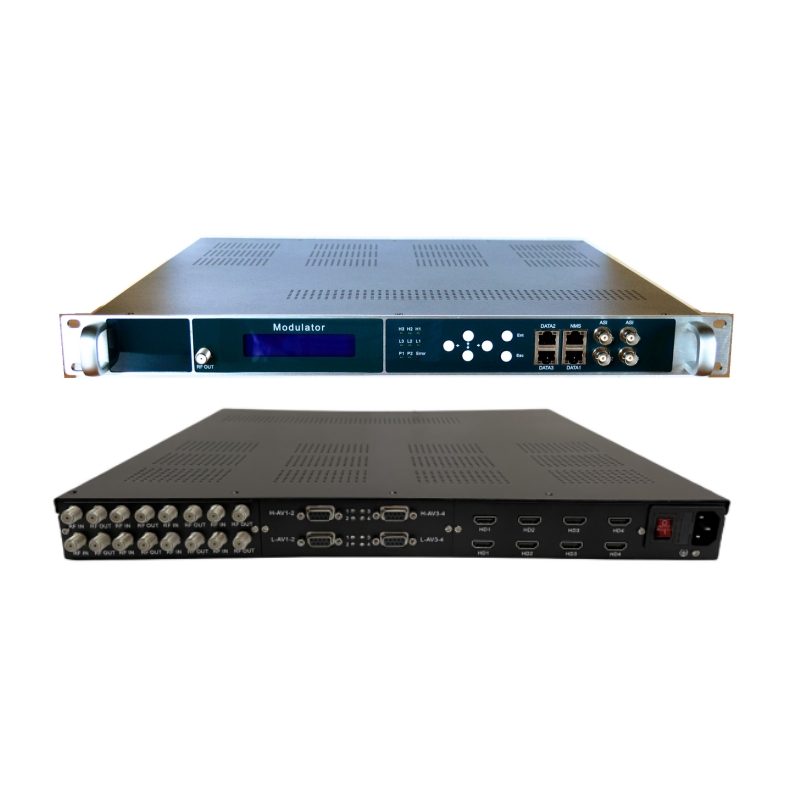

HP70-8HD+8FTA+4CI Multi interface input
Product introduction
HP7000 series products are Catcast's latest research and development of a digital TV front-end audio and video processing equipment, which can be used for various types of audio and video coding and multiplexing modulation, so that can meet the needs of users in various systems. Standard 1U body, compact structure, easy to install and use. The machine has excellent performance, adopts modular design, can adapt to a variety of interfaces, flexible functional configuration, users can choose functions according to demand for customization, with a high cost performance. According to the selected module type, it can support HD coding to IP output, SD coding + modulation output, HD coding + modulation output, Tuner receive to IP output, Tuner receives modulation output, etc. IP input/output supports UDP/RTP protocol (MPTS/STPS), and supports IP input/outputs over RTMP/HTTP/RTSP/HLS/SRT protocol. Modulation module can choose ATSC, ISDBT, DTMBT, DVB-C,DVB-T modulation output mode. The single machine integrates a complete set of front-end system functions, which is very suitable for all kinds of digital TV transmission systems.

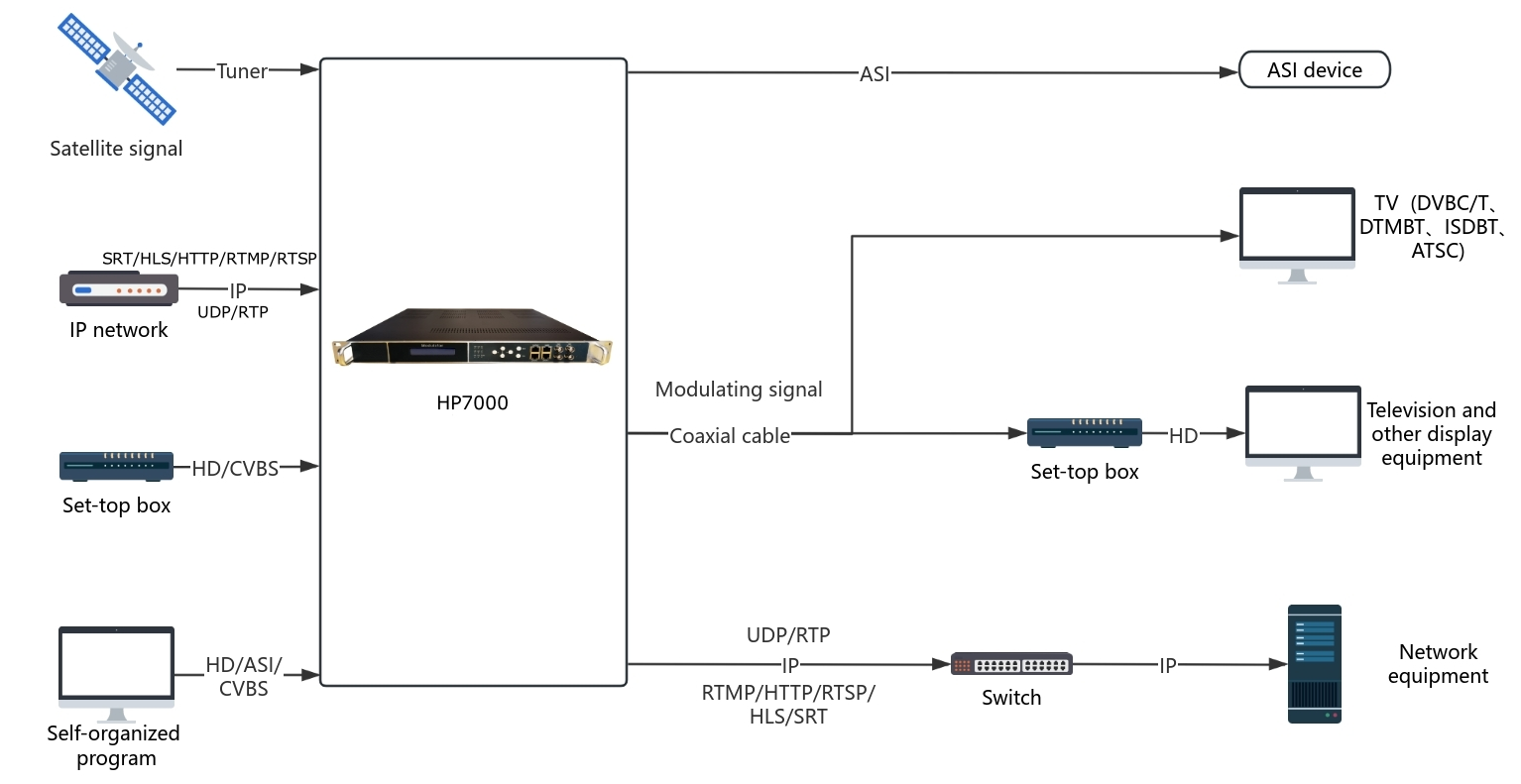

System function
Note: The above are all the optional functions of this series of products, and the final product is subject to the actual customized functions of the customer.
Product features
* Supports multiple port module inputs, with optional Tuner/HDMI/CVBS ports. A single module supports 4 channels of input, with a maximum of 6 modules supporting a total of 24 channels of input.
* Supports PCMCIA card modules, with a single module supporting 2-channel card descrambling and a maximum support of 12 PCMCIA card channels
* Support different Tuner (DVB-C, DVB-T/T2, DVB-S/S2, DTMBT, ISDBT, ATSC) inputs, or mixed use (such as 4 DVB-T and 4 ATSC inputs simultaneously, forming an 8-channel input)
* Supports 3 Gigabit IP input/output (DATA1:IP input/output over RTMP/HTTP/RTSP/HLS/SRT protocol ;DATA2: IP output over UDP/RTP protocol; DATA3: 128 IP address inputs over UDP/RTP)
* Support 8/12/16/24 carriers ISDBT, DVB-T, ATSC, DTMBT modulated RF output, optional
* Support 8/16/32 carriers DVB-C modulated RF output, optional
* Supports 2 ASI inputs
* Supporting 2 independent ASI outputs
* Support encoder module OSD, subtitle insertion, logo insertion, QR code, and image functions
* Supports LCD and button control functions
* Support network management and online upgrade function(WEB)

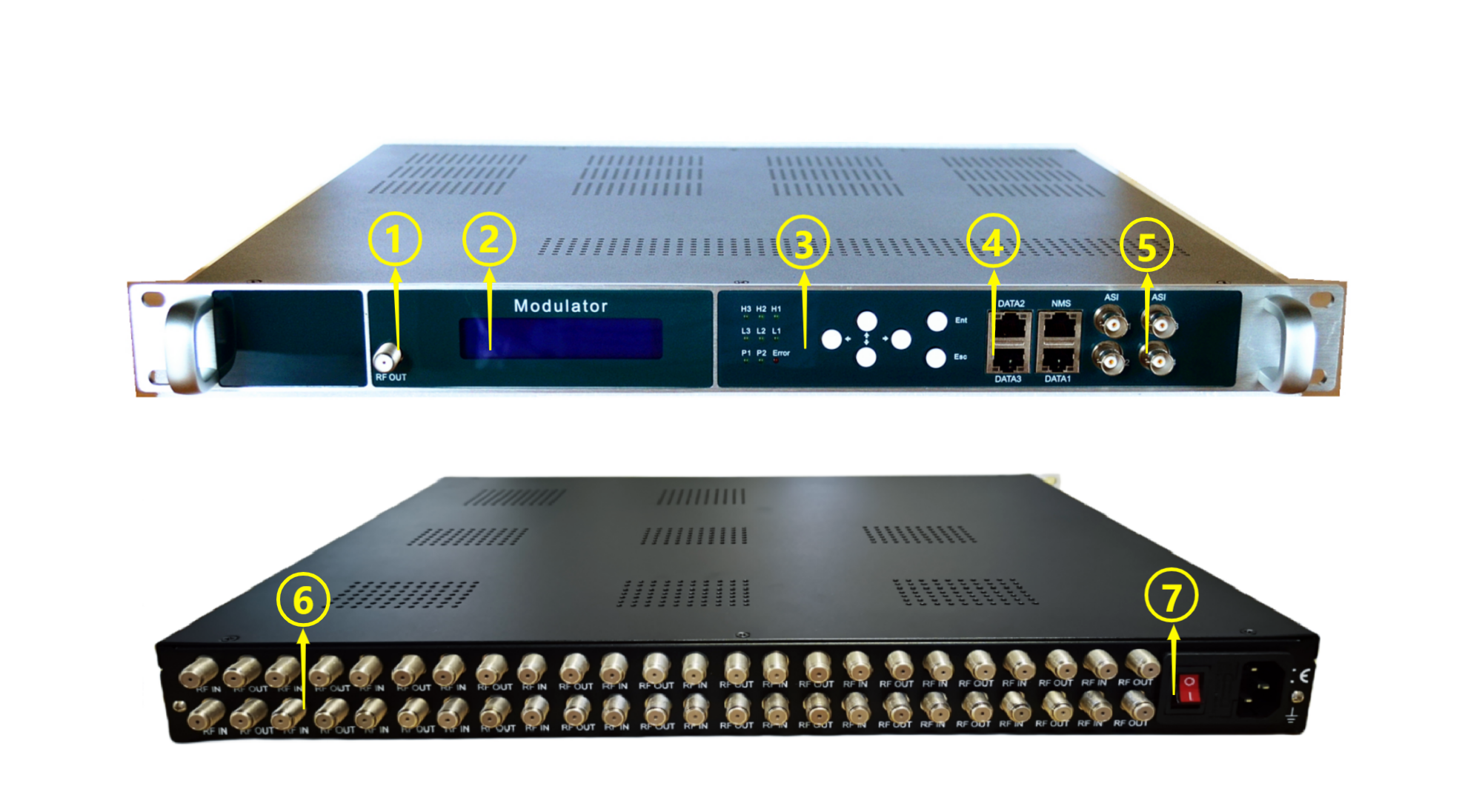

Equipment panel

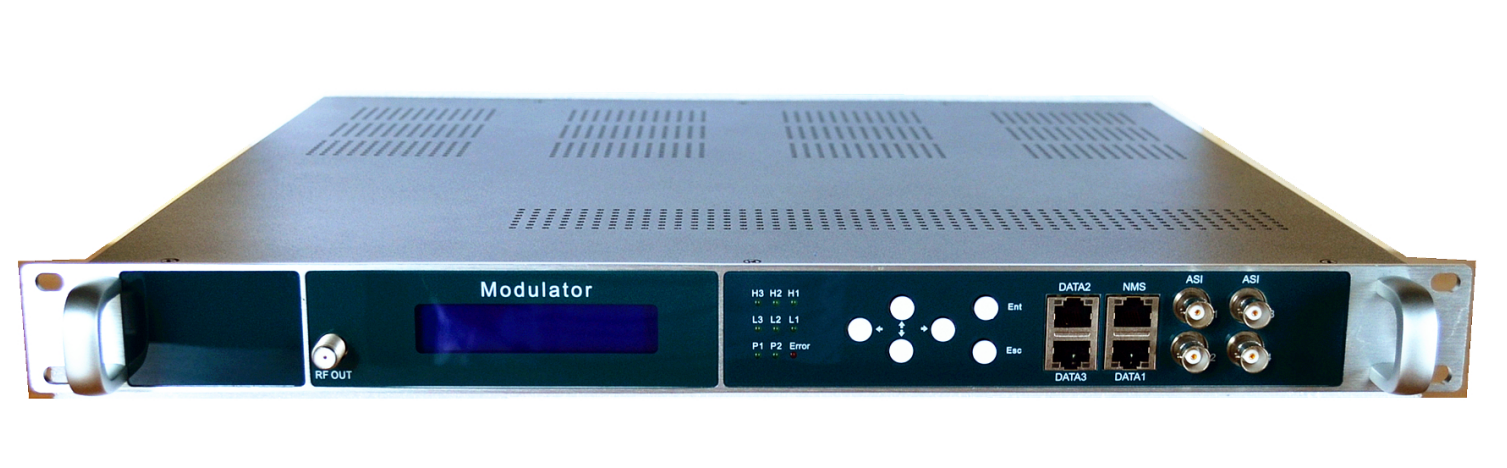

1. | RF output | |
2. | LCD Display | |
3. | Buttons and Indicator lights | |
4. | NMS | Network management port |
DATA 1 | IP input/output,RTMP/HTTP/RTSP/HLS/SRT protocol (Push-only/Pull-only) | |
DATA 2 | IP output,MPTS/SPTS output over UDP/RTP protocol | |
DATA 3 | IP input,UDP/RTP protocol | |
5. | ASI input/output | |
6. | Tuner (HDMI/CVBS optional) input | |
7. | Power | |
Streaming media output
Streaming media module performance test Version：4.19.232-33.38-0.1-20240927 Output mode: Performance mode (Push-only stream/Pull-only stream) | |||||||
Output protocol | Input Format | Video | Audio | TS bitrate | Channels(Push-only) | Channels(Pull-only) （Mode2/Mode1） | Total output bitrate (Push-only/Pull-only) |
RTSP/HTTP | H264+AAC(LC) | 6Mbps | 128Kbps | TS:6.5Mbps | CH:48 | CH:60/32 | BITRATE:310M/390M(mode1) |
RTMP | H264+AAC(LC) | 6Mbps | 128Kbps | TS:6.5Mbps | CH:38 | CH:60/32 | BITRATE:240M/390M(mode1) |
HLS | H264+AAC(LC) | 6Mbps | 128Kbps | TS:6.5Mbps | CH:40 | CH:60/32 | BITRATE:240M/390M(mode1) |
SRT | H264+AAC(LC) | 6Mbps | 128Kbps | TS:6.5Mbps | CH:48 | CH:42/32 | BITRATE:310M/270M(mode1) |
Note | 1. This test is the test result of the device in a relatively ideal network environment. When designing the front-end system, it is necessary to consider the influence of the actual working environment, such as the network environment and other devices in the network. 2. Enabling the audio transcoding function will consume additional device resources,please disable this function if not necessary. The streaming media module of the device will also consume additional resources when simultaneously pushing and receiving streams. Different settings for pushing/receiving streams may affect the device's performance, so please configure the working mode according to your needs. 3. When the streaming module simultaneously uses both push and pull streaming functions, it will incur additional performance overhead on the device. It is recommended to use in one-way operation only (either push-only or pull-only). 4. Stream Reception Mode 2 is suitable for receiving most stable program streams, allowing the device to achieve maximum performance utilization. If Mode 2 fails to receive stably, you may switch to Mode 1, which offers higher stability but will consume additional device performance. | ||||||
Product Module Selection
Mainboard module | Interface | Input | Output |
IP output module | 3 Gigabit port； 1 NMS port； 4 ASI port | DATA3:UDP/RTP inputs； DATA1:RTMP/HTTP/RTSP/HLS/SRT input； 2 ASI input | IP output DATA1: RTMP/HTTP/RTSP/HLS/SRT output; DATA2:UDP/RTP ,4 MPTS/ 256 SPTS output; 2 ASI output |
8-carrier (ISDBT/DVB-T/ATSC/DTMBT)modulation module (or 16 DVB-C) | 3 Gigabit port； 1 NMS port； 1 RF out 4 ASI port | DATA3:UDP/RTP inputs； DATA1:RTMP/HTTP/RTSP/HLS/SRT input； 2 ASI input | 8 RF output (Total output bandwidth:192M)； DATA1: RTMP/HTTP/RTSP/HLS/SRT output; DATA2:UDP/RTP ,4 MPTS/ 256 SPTS output; 2 ASI output |
12-carrier(ISDBT/DVB-T/ATSC/DTMBT) modulation module (or 16 DVB-C) | 3 Gigabit port； 1 NMS port； 1 RF out 4 ASI port | DATA3:UDP/RTP inputs； DATA1:RTMP/HTTP/RTSP/HLS/SRT input； 2 ASI input | 12 RF output (Total output bandwidth:192M)； DATA1: RTMP/HTTP/RTSP/HLS/SRT output; DATA2:UDP/RTP ,4 MPTS/ 256 SPTS output; 2 ASI output |
16-carrier (ISDBT/DVB-T/ATSC/DTMBT)modulation module (or 32 DVB-C) | 3 Gigabit port； 1 NMS port； 1 RF out 4 ASI port | DATA3:UDP/RTP inputs； DATA1:RTMP/HTTP/RTSP/HLS/SRT input； 2 ASI input | 16 RF output (Total output bandwidth:768M)； DATA1: RTMP/HTTP/RTSP/HLS/SRT output; DATA2:UDP/RTP ,4 MPTS/ 256 SPTS output; 2 ASI output |
24-carrier (ISDBT/DVB-T/ATSC/DTMBT)modulation module (or 32 DVB-C) | 3 Gigabit port； 1 NMS port； 1 RF out 4 ASI port | DATA3:UDP/RTP inputs； DATA1:RTMP/HTTP/RTSP/HLS/SRT input； 2 ASI input | 24 RF output (Total output bandwidth:768M)； DATA1: RTMP/HTTP/RTSP/HLS/SRT output; DATA2:UDP/RTP ,4 MPTS/ 256 SPTS output; 2 ASI output |
Subboard module | Input interface | Function | |
Tuner Input module | 4-channel Tuner interface with loop out (Except for DVB-T2) | Tuner receive （DVB-C、DVB-T/T2、DVB-S/S2、DTMBT、ISDBT、ATSC optional） | |
HD encoder module(H.264) | 4-channel HDMI input | HD encoder，supports MPG4/H.264 | |
HD encoder module(H.265) | 4-channel HDMI input | HD encoder，supports MPG4/H.264/H.265 | |
SD encoder module | 4-channel CVBS input | SD encoder，supports MPEG2 | |
PCMCIA card module | 2-channel PCMCIA （2 Card slot+2 Tuner） | Tuner receive + PCMCIA card descrambling | |
Note：
1. The mainboard and subboard can be combined according to requirements.One device is equipped with 1 mainboard module and up to 6 subboard modules.
2. DATA1 is suitable for IP output over the RTMP/HTTP/RTSP/HLS/SRT protocol; DATA2 is suitable for IP output (MPTS/SPTS) over UDP/RTP. DATA3 is the IP input port.

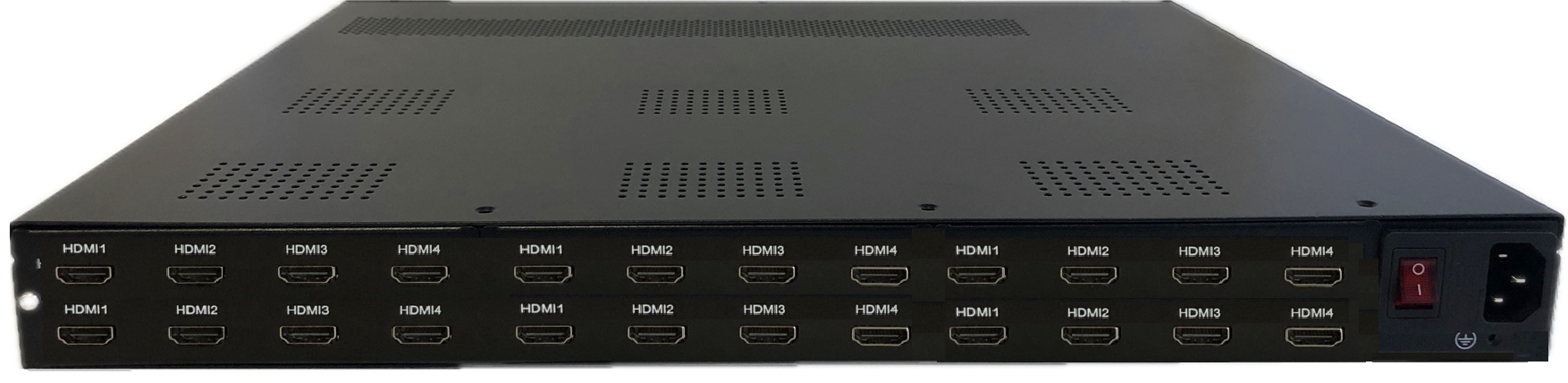

HP7024SD 24 channel CVBS SD input

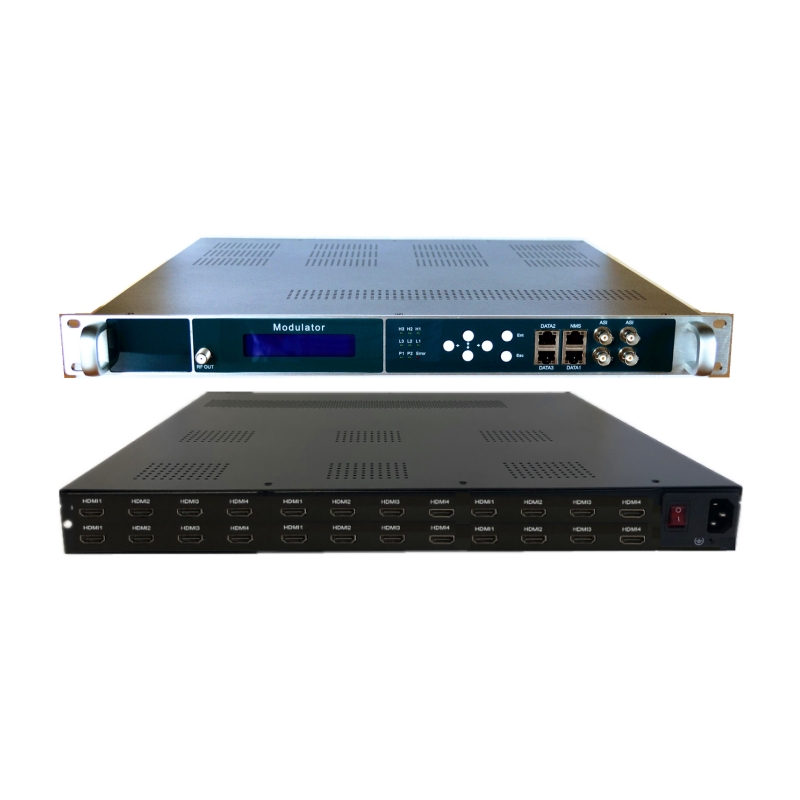

HP7024HD 24 channel HDMI input

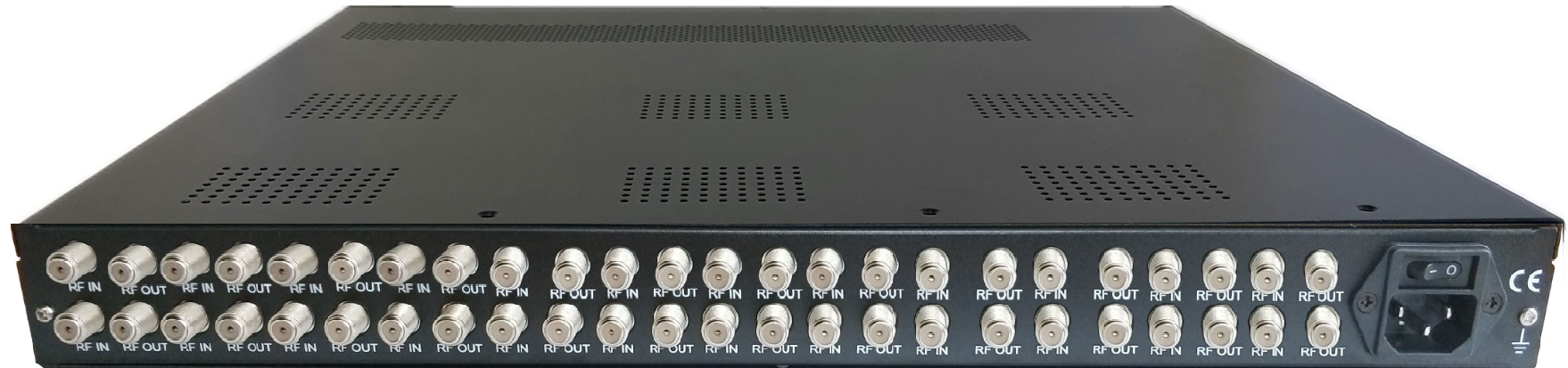

HP7024FTA 24 FTA Tuner input
HP7012CI 12 CAM-card CI tuner input

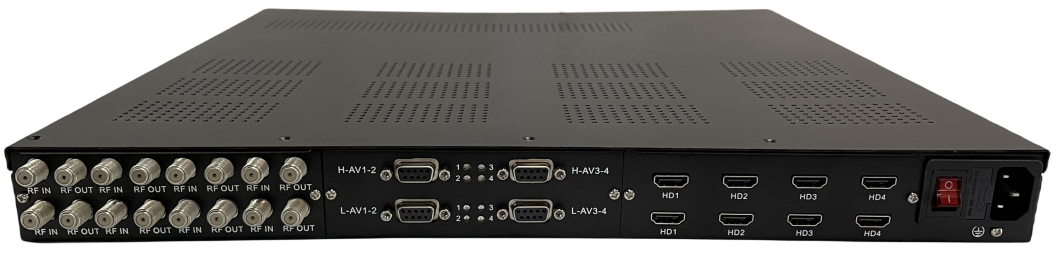

HP70-8FTA+8SD+8HD Multi interface input
