HEP10-V2
Catcast

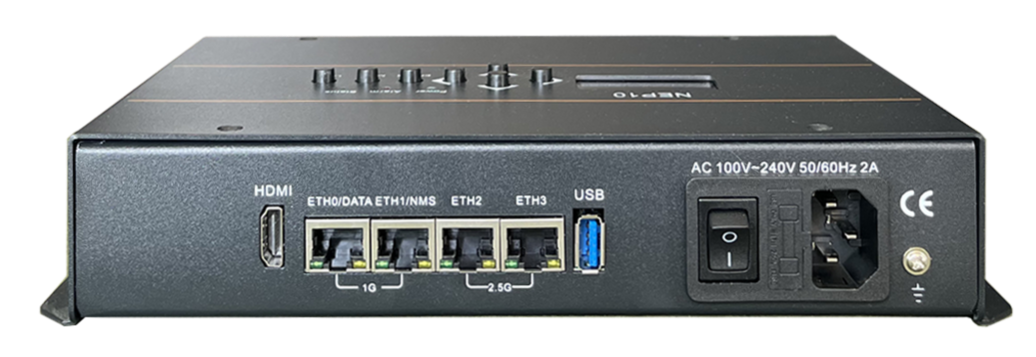

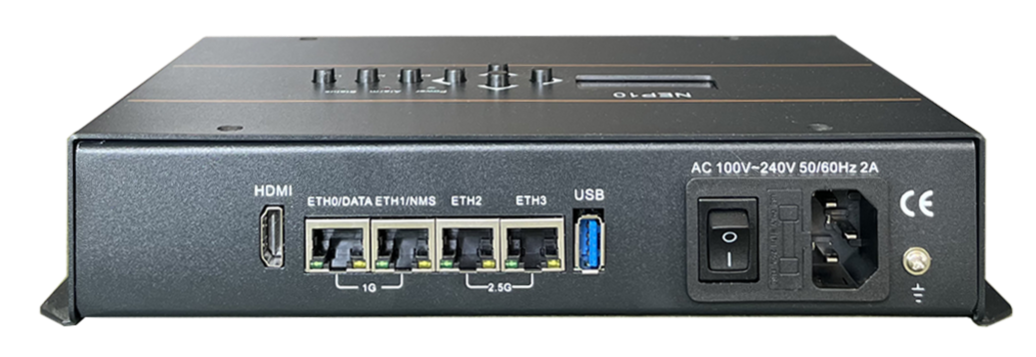

HEP10-V2 IP Gateway
Outline
Catcast HEP10-V2 IP Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It supports LCD display and has press buttons, it can convert the broadcast network IP stream over SRT, HTTP, HTTPS, UDP, RTP, RTSP and HLS protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly
Key Features
4 Data ports for input/output, it default ETH0 is output,ETH1 is NMS, ETH0 and ETH1 both are 1000Mbps, ETH2/ETH3 is 2.5G, and as input port
Data port:
IP in over SRT, HTTP, HTTPS,UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over SRT, HTTP, UDP (SPTS) HLS RTP/RTSP and RTMP (Unicast)
Support IP anti-jitter function
HDMI and USB port just be testing port
Support up to 70 HD programs
Control via web-based NMS management through ETH1 port

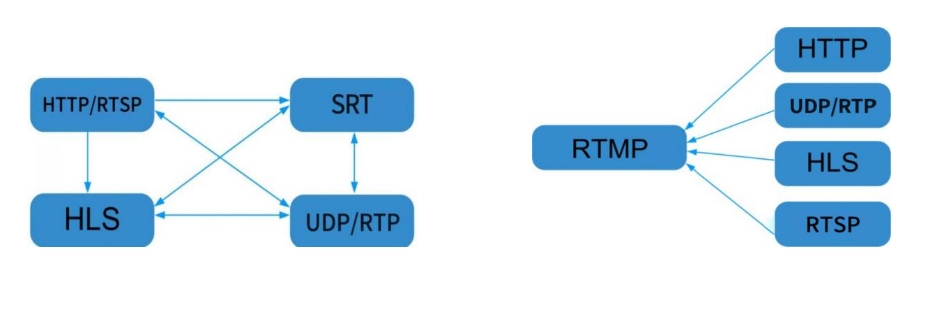

IP Protocol Conversion

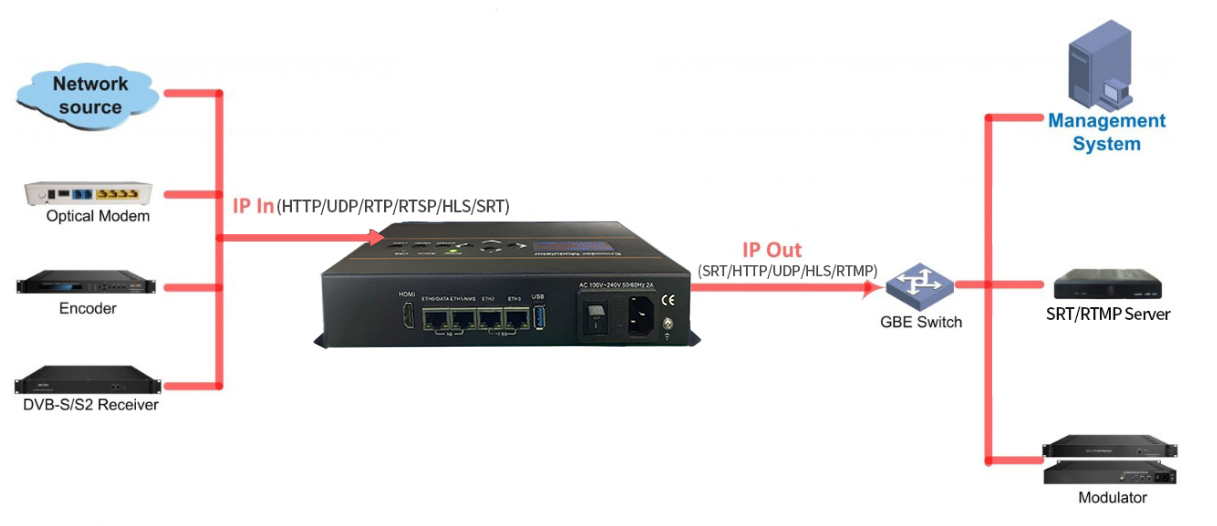

General Principle Chart
Specifications
| IP Input | IP input through DATA1/DATA2 (1000M/400M) over SRT, HTTP, UDP(SPTS), RTP(SPTS), RTSPand HLS. | |
IP output | IP output through DATA1 (1000M) over SRT(Unicast), HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding) | |
System | Support about 8-12 HD/SD programs (Bitrate:8Mbps) When UDP (Multicast) convert into HTTP/RTP/RTSP/HLS | |
Web-based NMS management through DATA port | ||
General | Demission | 180mm×110mm×40mm (WxLxH) |
Temperature | 0~45℃(operation), -20~80℃(storage) | |
Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
Test data for reference:
Protocol conversion | Bit-Rate | Programs |
SRT to UDP/RTP/RTSP/HLS | 3Mbps | 20 |
SRT to UDP | 8Mbps | 12 |
SRT to RTP/RTSP | 12 | |
SRT to HLS | 12 |
