In today’s world of high-speed communication and digital broadcasting, fiber amplifiers play a crucial role in ensuring strong, stable, and high-quality optical signals across long distances. As the demand for broadband, IPTV, and 4K/8K video transmission continues to grow, the need for powerful, efficient, and low-noise optical amplification solutions has never been greater.
A fiber amplifier, also known as an optical fiber amplifier or EDFA fiber amplifier, is a device that boosts the intensity of optical signals traveling through fiber optic cables without converting them into electrical signals.
Unlike traditional electronic amplifiers, fiber amplifiers work directly on light waves — offering higher speed, greater efficiency, and minimal signal degradation. They are widely used in CATV headend systems, IPTV networks, telecommunication backbones, and fiber-to-the-home (FTTH) deployments.
At its core, a fiber amplifier works through the principle of stimulated emission. The amplifier uses a segment of erbium-doped fiber, pumped by laser diodes that inject energy into the medium. When weak optical signals enter this fiber, the energized erbium ions transfer their energy to the incoming light, amplifying it.
This process occurs entirely in the optical domain, eliminating the need for optical-to-electrical conversion and reducing latency.
There are different types of optical amplifier modules used in modern networks:
EDFA (Erbium-Doped Fiber Amplifier): The most common and reliable option for 1550 nm wavelength systems.
EYDFA (Erbium/Ytterbium-Doped Fiber Amplifier): Used for high-power fiber amplifier applications.
Raman Amplifier: Provides distributed amplification along the fiber line.
The introduction of fiber amplifiers revolutionized optical communication, enabling longer transmission distances and higher bandwidth. Their main advantages include:
Extended Transmission Range: Signals can travel hundreds of kilometers without degradation.
High Power and Efficiency: Especially with WDM amplifiers and EYDFA systems.
Low Noise and High Stability: Ensures superior video and data quality.
Compact Design: Integrated modules that fit easily in CATV or IPTV headends.
Scalability: Ideal for growing networks and multi-channel fiber systems.
For CATV operators and ISPs, a reliable CATV fiber amplifier means fewer repeaters, lower maintenance costs, and better overall system performance.
The fiber amplifier is used in almost every sector that relies on optical communication, including:
Cable Television (CATV): To amplify 1550 nm optical signals in cable headends.
IPTV and Digital Broadcasting: Ensures stable transmission for HD and 4K content.
Telecommunication Networks: For long-distance, high-bandwidth optical links.
FTTH and FTTB Networks: To distribute signals efficiently to end users.
WDM Systems: As part of multi-channel wavelength-division multiplexing setups.
Catcast’s EDFA fiber amplifier series provides professional-grade performance for all these applications, combining stability, power, and long-term reliability.
Special note:

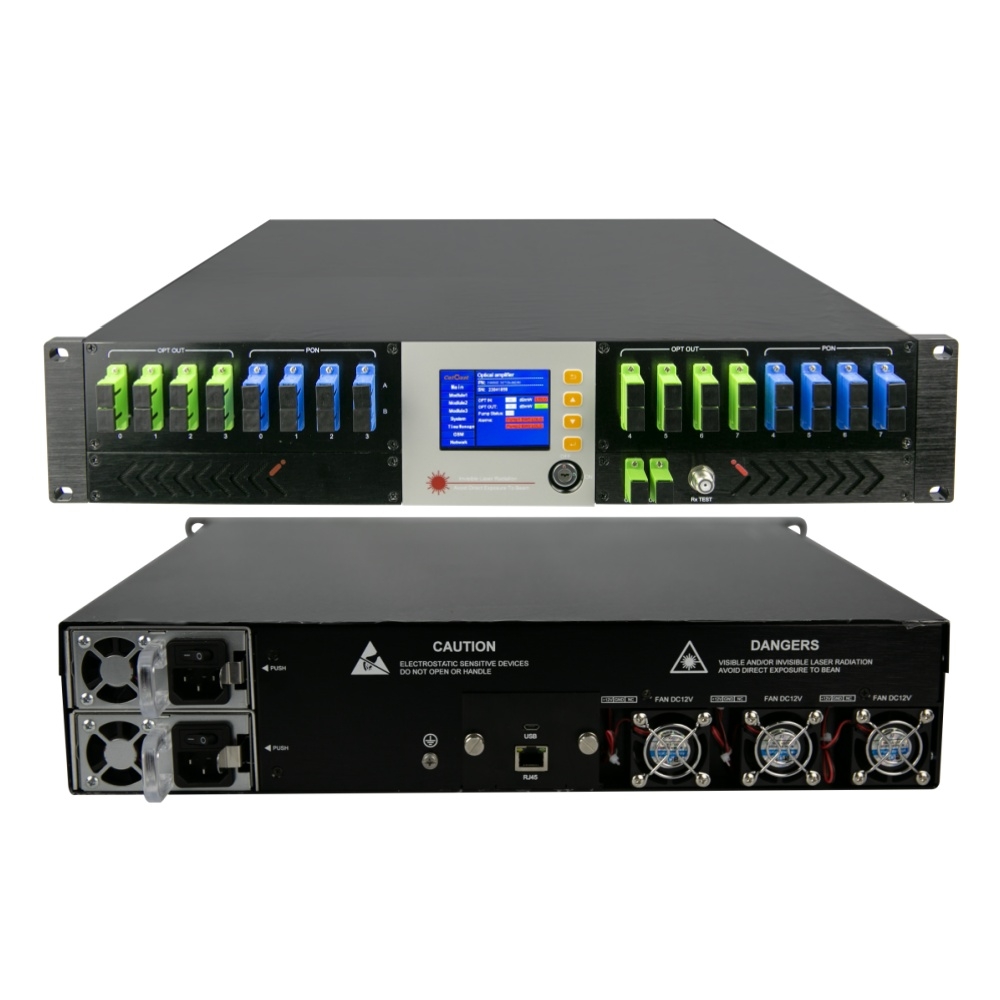

HA86E series optical amplifier is a high-power laser device. The installation and debugging must be performed by professional technicians. Read this manual carefully before operation to avoid damage to the device due to incorrect operation or to cause accidental injury to the operator.
When the optical fiber amplifier is working, an invisible laser beam will be emitted from the optical signal output adapter located on the rear panel, and the optical signal output port should be prevented from being aligned with the human body, and the optical output port cannot be directly viewed with the naked eye, so as to avoid the permanent damage to the human body and the human eye.
Any operation of the output patch cord should be performed in the condition of the pump laser turned off; otherwise, the patch cord head will be burnt, and the output power will drop.
When installing the optical fiber movable connector, the force should be appropriate; otherwise, it may cause the ceramic tube in the adapter to crack. Once the ceramic tube is fragmented, the output optical power will be greatly reduced. If the optical fiber connector rotates slightly, the output optical power will be changed significantly.
Before the equipment is powered on, it should be confirmed that the grounding terminal of the chassis and the power socket have been reliably grounded (the grounding resistance should be <4Ω) to prevent static electricity from damaging the laser device and prevent the chassis from being electrified and causing harm to the human body.
In order to ensure long-term stable operation of the equipment, in areas where the grid voltage is unstable or where the voltage waveform is poor, users are advised to configure a dedicated AC power supply for the equipment. Users can also configure an uninterrupted power supply (UPS) system if possible. In regions where the ambient temperature is too high or the equipment room environment is poor (the ideal operating ambient temperature of the device is 25°C), it is recommended that the user configure a dedicated air conditioning system for the device to improve the device's working environment.
With over 20 years of experience in optical communication, Catcast has become a trusted name in CATV, IPTV, and fiber optic transmission equipment.
Catcast’s fiber amplifiers stand out because of their:
Advanced thermal and electronic design for long-term stability.
High-efficiency pump lasers and low-noise optical circuits.
Intelligent APC (Automatic Power Control) and ATC (Automatic Temperature Control).
User-friendly web interface and real-time network monitoring.
Whether you need a high-power EDFA fiber amplifier, a WDM amplifier for backbone networks, or a CATV fiber amplifier for headend systems, Catcast offers precision-engineered solutions to meet every professional need.
The fiber amplifier is the backbone of modern optical communication — enabling longer, faster, and more reliable data transmission. It’s indispensable in industries ranging from broadcasting to telecommunications, ensuring signal integrity and cost-effective network expansion.
Catcast continues to lead innovation in fiber optic amplifier technology, combining powerful performance with dependable engineering to help customers build robust, future-ready optical networks.
