Even in today’s era of streaming platforms and IPTV, CATV modulators remain the backbone of many professional broadcasting, hospitality, and campus television systems.
They ensure that video signals are transmitted efficiently, clearly, and consistently across multiple channels and hundreds of displays.
For more than two decades, Catcast has specialized in the research, manufacturing, and engineering services of CATV, IPTV, and fiber optic transmission equipment.
With 20+ years of experience serving telecom operators, hotels, universities, and system integrators, Catcast understands how essential reliable RF modulation remains in modern television distribution.
This article will explain what a CATV modulator is, how it works, its types, applications, and why Catcast’s professional modulators stand out in this field.
A CATV Modulator (Cable Television Modulator) is a device that converts video and audio signals—from sources like HDMI, IP, or ASI—into RF (Radio Frequency) channels that can be distributed through coaxial cable networks.
In simpler terms, the modulator acts as the bridge between your video source and your cable TV network.
Once modulated, the signal can be received by any standard TV tuner connected to the same network, just like watching a normal television channel.
For example:
A hotel may have 16 HDMI video sources (such as satellite receivers or media players).
A CATV modulator takes those 16 signals, converts them into RF TV channels, and sends them through the building’s coaxial system—allowing every room to tune in to those channels.
That’s the power and convenience of a CATV modulator: one central device can distribute dozens of HD channels to hundreds of televisions without set-top boxes or extra wiring.
The working principle of a CATV modulator can be divided into four stages:
Signal Input – The device receives signals through various interfaces, such as IP, ASI, HDMI, or CVBS, and Tuner(DVB-S/S2, DVB-T/T2, ISDBT, ATSC, DVB-C, DTMB) inputs, depending on the model.
IP inputs allow for network-based transport streams (UDP, RTP).
ASI inputs are used in professional broadcast environments.
HDMI inputs are ideal for local AV sources.
Encoding and Multiplexing – The incoming signals are encoded (if necessary) into a digital format such as MPEG-2 or H.264 and multiplexed into transport streams (SPTS or MPTS).
Modulation – The multiplexed signal is modulated into RF channels using specific digital broadcasting standards such as DVB-C (Cable), DVB-T (Terrestrial), ISDB-T(Japan/Brazil/South America), ATSC (North America), or DTMB (China).
RF Output Distribution – Finally, these RF channels are combined and output through one or more RF ports (50–900 MHz).
The resulting signal can be directly connected to a CATV distribution system and received by any standard television.
In short, a CATV modulator converts digital data streams into TV-ready RF signals, ensuring compatibility with existing coaxial cable infrastructures.
There are two main types of CATV modulators on the market:
These are traditional devices that modulate composite video and audio signals into analog RF channels.
They’re cost-effective and easy to use, but limited in quality (typically standard-definition) and capacity.
Modern digital modulators use advanced encoding and multiplexing to deliver multiple HD channels on fewer frequencies.
They support multiple broadcast standards (DVB-C, DVB-T, ISDB-T, ATSC, DTMB) and can integrate IP and ASI inputs.
They’re ideal for professional, large-scale, and high-definition applications.
When selecting a CATV modulator for your network, consider these essential features:
Modern devices accept multiple input formats—HDMI, IP (SPTS/MPTS), ASI—and deliver RF outputs that can carry several carriers or channels.
Choose a multi-carrier modulator (e.g., 4, 8, 16, 24 carriers) to distribute more channels in one unit.
For example, Catcast’s 24-carrier DVB-C/ISDB-T modulators can broadcast 24 different channels simultaneously.
Make sure the modulator supports the broadcasting system used in your region:
DVB-C – Europe, Asia, Africa (Cable)
DVB-T – Europe (Terrestrial)
ISDB-T – Japan, Brazil, South America
ATSC – North America
DTMB – China
Look for devices with a 50 MHz to 900 MHz range for maximum flexibility in channel allocation.
Modern CATV modulators include web-based management and SNMP monitoring for remote control and configuration.
For continuous broadcasting environments (hotels, campuses, head-end systems), redundancy and signal stability are critical.
CATV modulators are used across many industries. Here are some common applications:
Hotels use CATV modulators to distribute satellite TV, promotional channels, and security feeds to every guest room.
Each TV can tune directly to digital channels via the hotel’s coaxial system—no extra set-top boxes required.
Universities and schools use CATV modulators to deliver educational content, live events, and campus announcements through internal TV systems.
Operators use modulators in head-end systems to combine multiple TV channels and transmit them over local cable networks.
Companies use modulators to create internal broadcasting networks for training, communication, or digital signage.
From patient information channels to live event broadcasts, CATV modulators ensure centralized, reliable video distribution.
In all these applications, Catcast modulators provide the high performance and flexibility needed for professional use.
As the industry evolves, more networks combine CATV and IPTV technologies.
Modern modulators—like those developed by Catcast—support both IP input/output and RF modulation, allowing seamless integration between coaxial and Ethernet-based infrastructures.
This hybrid approach enables:
Smooth transition from traditional CATV to IPTV systems.
Unified channel management through web interfaces.
Cost-effective scalability for future network upgrades.
With an IPTV-compatible CATV modulator, operators can distribute the same content both through RF coaxial cable and IP streaming—serving both old and new viewing systems simultaneously.
With more than 20 years of experience in the field of CATV, IPTV, and fiber optic transmission, Catcast has become a trusted global partner for broadcasters, telecom operators, and system integrators.
Catcast’s R&D team continuously develops advanced solutions that support multi-standard, multi-carrier, and hybrid IP/RF configurations.
Every Catcast modulator is built with industrial-grade components to ensure 24/7 stability and durability in demanding environments.
Whether you need a 16-HDMI input modulator, a 24-carrier DVB-C system, or IPTV integration, Catcast provides tailor-made solutions for your specific network requirements.
From pre-sale consultation to post-sale technical service, Catcast’s global engineering team ensures a smooth installation and long-term operation.
A CATV modulator is more than just a piece of broadcasting equipment—it’s the core technology that allows networks to deliver clear, stable, and synchronized TV signals to every screen.
By choosing Catcast CATV Modulators, you invest in reliability, versatility, and the future of hybrid TV distribution—combining the strengths of CATV and IPTV in one unified system.
Looking for a professional CATV modulator for your next project?

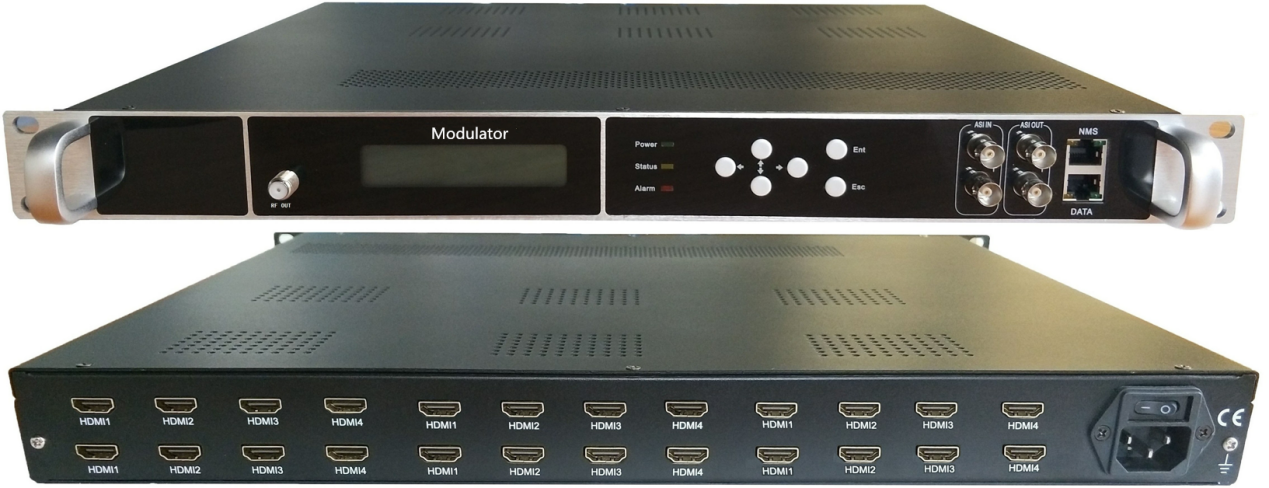

One standout example of a professional CATV modulator is the Catcast HPS846IV 24 HDMI to Digital RF Encoder Modulator:
Key Features
Support QR code, LOGO, and OSD insertion for every local channel
4/8/12/16/20/24 HDMI input, support HDCP
Support MPEG-4 AVC/H.264 video encoding
Support MPEG-1 Layer2, LC-AAC, HE-AAC v1&v2 audio encoding
1000 trillion IP input over UDP and RTP protocol, and IP output over UDP and RTP protocol (MPTS/SPTS, multicast/ unicast)
RF output (DVB-C、DVB-T、ATSC、ISDB-T modulation optional)
4/8/12/16 HDMI input, 4 carrier RF output
20/24 HDMI input, 8 carrier RF output
2 ASI input
2 ASI Independent output (optional) as a copy of 4 MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
PID pass
LCD、key function, Web-NMS management
