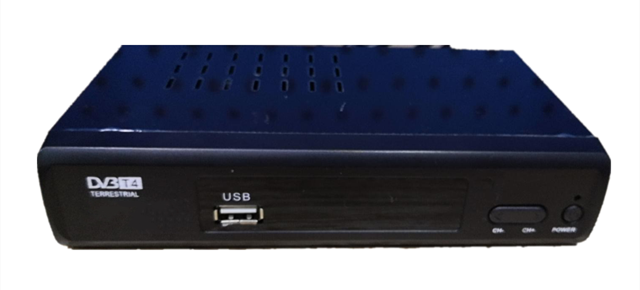

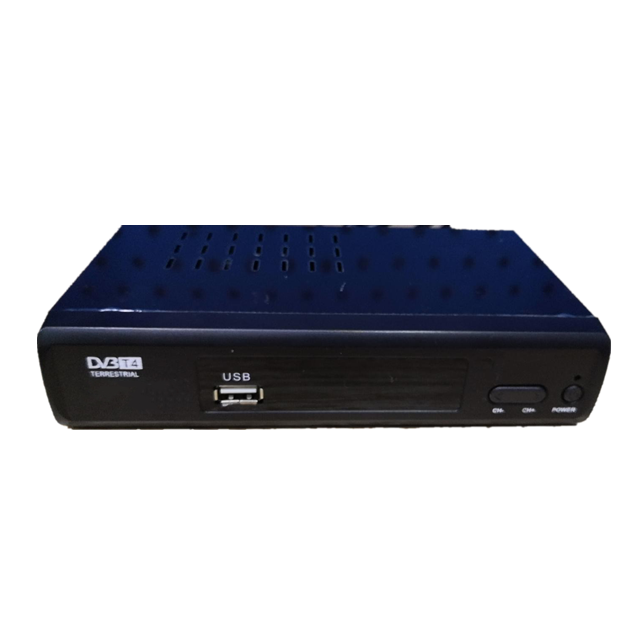

HPR8401 DVB-T/(T) HD SET TOP BOX
HPR8401 DVB-T/(T) HD SET TOP BOX | |||||
PACKAGING: GIFT BOX PACK | Container Quantity | ||||
Qty per export carton: 40 pcs | 20" | 40" | 40"HQ | ||
Carton meas.:525x405x370MM | 14700 pcs | 28000 pcs | 34000pcs | ||
Meas. per export carton | |||||
G.W:21.6KGS | |||||
N.W:21.0KGS | |||||
● SPECIFICATION: | |||||
Feature | 1. Fully SD/HD DVB-T/(T), SD/HD MPEG2/MPEG4 AVC/H.264/HEVC/H.265 | ||||
2. Full HD,support up to 1080P | |||||
3.Auto and manually scan all available TV and radio channels | |||||
4.Aspect ratio 16:9 and 4:3 | |||||
5.HDMI, YUV, RCA, coaxial output | |||||
6.Multi-language subtitle output supported | |||||
7.Powerful and highly effective 7-day EPG function | |||||
8.Supports teletext | |||||
9.Parental lock | |||||
10.PVR, timeshift via USB 2.0 | |||||
11.Multimedia playback and software upgrade via USB 2.0 | |||||
12.Stores up to 1,000 programs | |||||
13.Youtube support | |||||
Tuner | RF input frequency: 44-1002Mhz | ||||
Bandwith: 6/7/8MHz | |||||
Input level: -83dBm | |||||
Signal input: IEC-type female | |||||
Multimedia format: | Picture: JPEG,BMP,PNG | ||||
Audio: MP3,WMA, AC3 | |||||
Video: MKV、AVI、DIVX、XVID、MOV、VOB、FLV、TS、MP4、MPEG | |||||
Demodulation: QPSK, 16QAM, 64QAM, 256QAM | |||||
Code Rate: 1/2, 3/5,2/3, 3/4, 4/5, 5/6 | |||||
Guard: from 1/128 to 1/4 | |||||
FFT Mode: from 1K to 32K | |||||
Front panel | LED display | ||||
USB :for firmware upgrade, PVR and multimedia playback | |||||
Function buttons | |||||

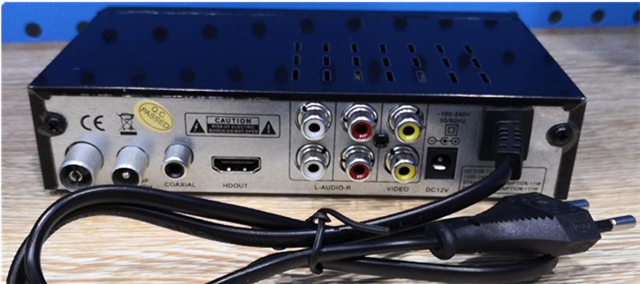

Rear panel o | HDMI 576i, 576p, 720p and 1080i,1080P | ||||
Loop through output: IEC-type, connector, single tuner | |||||
Coaxial: RCAX1 (optional) | |||||
YpbPr RCAX3 (optional) | |||||
L/R audio RCAX2 |
CVBS | |
SCART | |
others | Mpeg transport stream and A/V decoding |
Video standard: MPEG-4 AVC/H.264 HP@L4 | |
SCART video model CVBS/RGB (for Europe) | |
Aspect ratio: 4:3, 16:9 | |
Video resolution: 576i, 576p, 720p and 1080i,1080P | |
Audio standard: ISO/IEC 14.496-3,AAC,AAC+ | |
Audio mode: mono, dual-channel, stereo | |
Standard:DVB-T(ETSI EN 300 744), DVB-T2(ETSI EN 302 755) |
