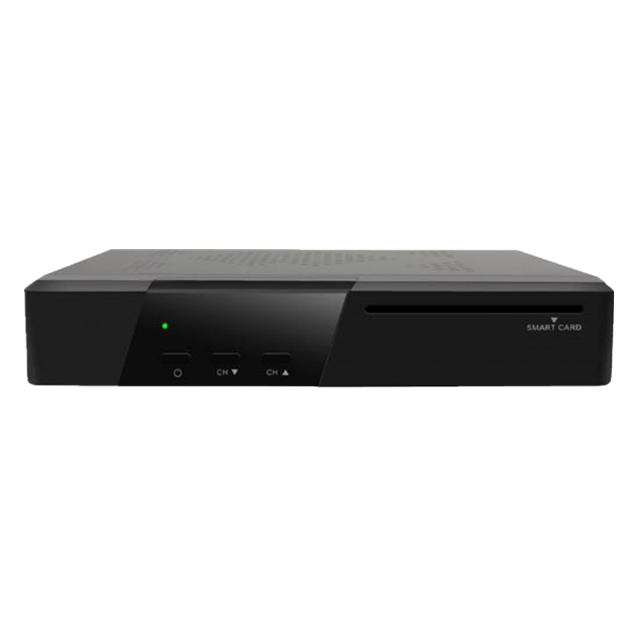

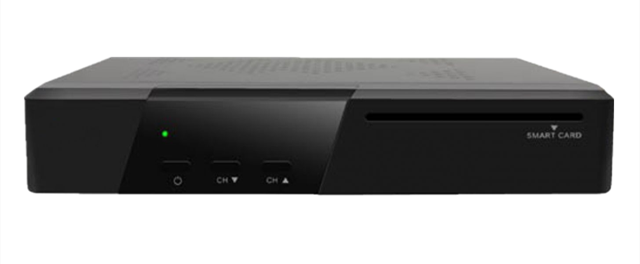

HPS2208T
Catcast
8517629900
GENERAL | SYSTEM |
Model Name: HPS2205 | Main Processor: Montage VS3001 |
Transponder: DVB-T/(T) | Demodulator: MN88473 |
Power Voltage: DC 12V/1A | DDR2: 128MB |
Power Consumption: <8W | Flash: 8MB |
FEATURES
OSD Language: Multi Language | EPG For 7 Days: Yes |
Program Recording And Time Shift(PVR): Yes | Subtitle And Teletext Supported: Yes |
Support CAS: Yes(Catcast) | Preset Channel List: Yes |
Media Player: Yes | Favorite Channel List Edition: Yes |
Parental Lock: Yes | Auto, Manual Search & Full Search Function: Yes |
LCN: Yes | Software Upgrade By USB: Yes |
Over The Air(OTA)Software Download: Yes | |
DECODE | FRONT PANEL |
Video Decoder: MPEG1/2/4, H.264 | Display Type: Optional |
Audio Decoder: MPEG1, MPEG2(Layer 1/2), MP3 | Infra-red Receiver: Yes |
Video Output Ratio: 4:3, 16:9, Auto | Front Panel Keyboard: Yes |
Video Resolution: 480I/P, 576I/P, 720P, 1080I/P, Auto | Power Indicator(LED): Yes |
TUNER & CHANNEL | TERMINAL |
RF Input Connector: IEC-Type | HDMI1.3b: Yes |
RF Output(Loop through): IEC-Type | USB2.0: Yes |
Receiving Channel Range: 174~230MHz, 474~862MHz | RCA(CVBS+R/L): Yes |
Bandwidth: 6/7/8MHz | SPDIF Output(Coaxial): Optional |
ACCESSORY | DIMENSION |
Remote Control: Yes | Size: 170*116*35MM |
Instruction Book: Yes | Weight: 0.5Kg |
AV/HDMI Cable: Optional | |
GENERAL | SYSTEM |
Model Name: HPS2205 | Main Processor: Montage VS3001 |
Transponder: DVB-T/(T) | Demodulator: MN88473 |
Power Voltage: DC 12V/1A | DDR2: 128MB |
Power Consumption: <8W | Flash: 8MB |
FEATURES
OSD Language: Multi Language | EPG For 7 Days: Yes |
Program Recording And Time Shift(PVR): Yes | Subtitle And Teletext Supported: Yes |
Support CAS: Yes(Catcast) | Preset Channel List: Yes |
Media Player: Yes | Favorite Channel List Edition: Yes |
Parental Lock: Yes | Auto, Manual Search & Full Search Function: Yes |
LCN: Yes | Software Upgrade By USB: Yes |
Over The Air(OTA)Software Download: Yes | |
DECODE | FRONT PANEL |
Video Decoder: MPEG1/2/4, H.264 | Display Type: Optional |
Audio Decoder: MPEG1, MPEG2(Layer 1/2), MP3 | Infra-red Receiver: Yes |
Video Output Ratio: 4:3, 16:9, Auto | Front Panel Keyboard: Yes |
Video Resolution: 480I/P, 576I/P, 720P, 1080I/P, Auto | Power Indicator(LED): Yes |
TUNER & CHANNEL | TERMINAL |
RF Input Connector: IEC-Type | HDMI1.3b: Yes |
RF Output(Loop through): IEC-Type | USB2.0: Yes |
Receiving Channel Range: 174~230MHz, 474~862MHz | RCA(CVBS+R/L): Yes |
Bandwidth: 6/7/8MHz | SPDIF Output(Coaxial): Optional |
ACCESSORY | DIMENSION |
Remote Control: Yes | Size: 170*116*35MM |
Instruction Book: Yes | Weight: 0.5Kg |
AV/HDMI Cable: Optional | |
