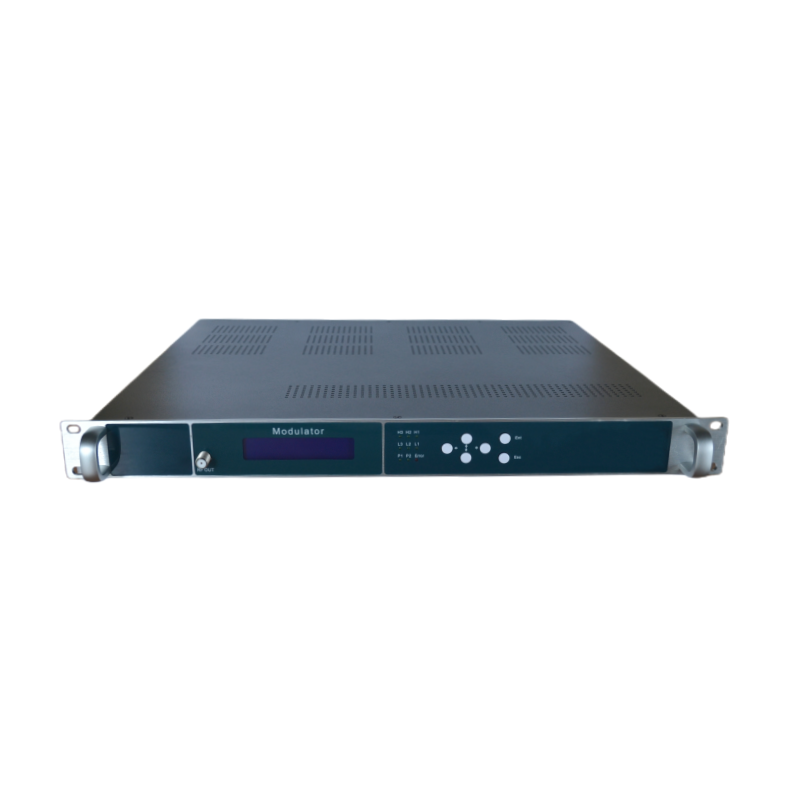

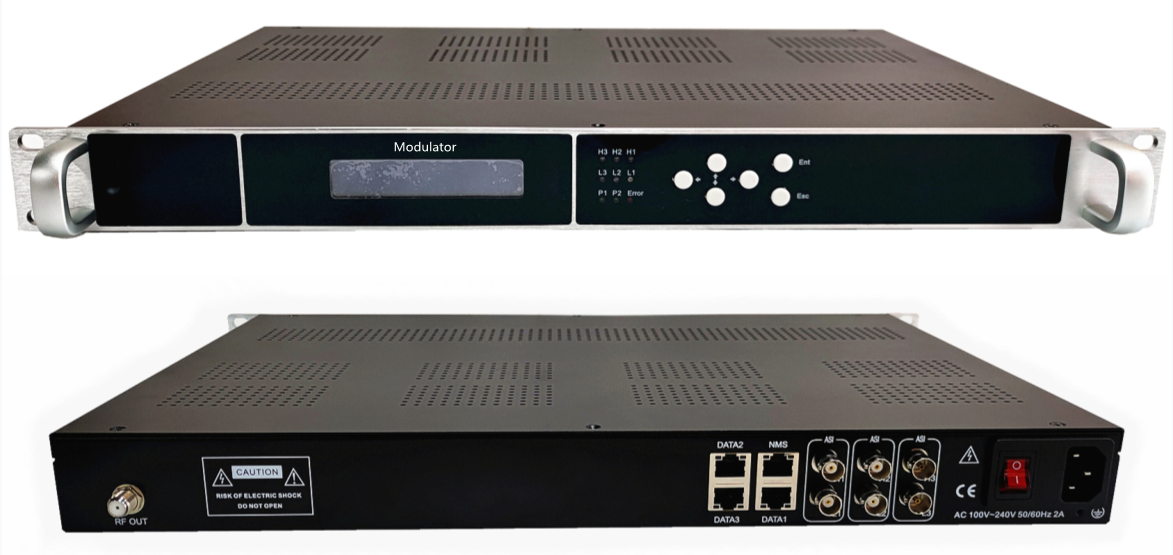

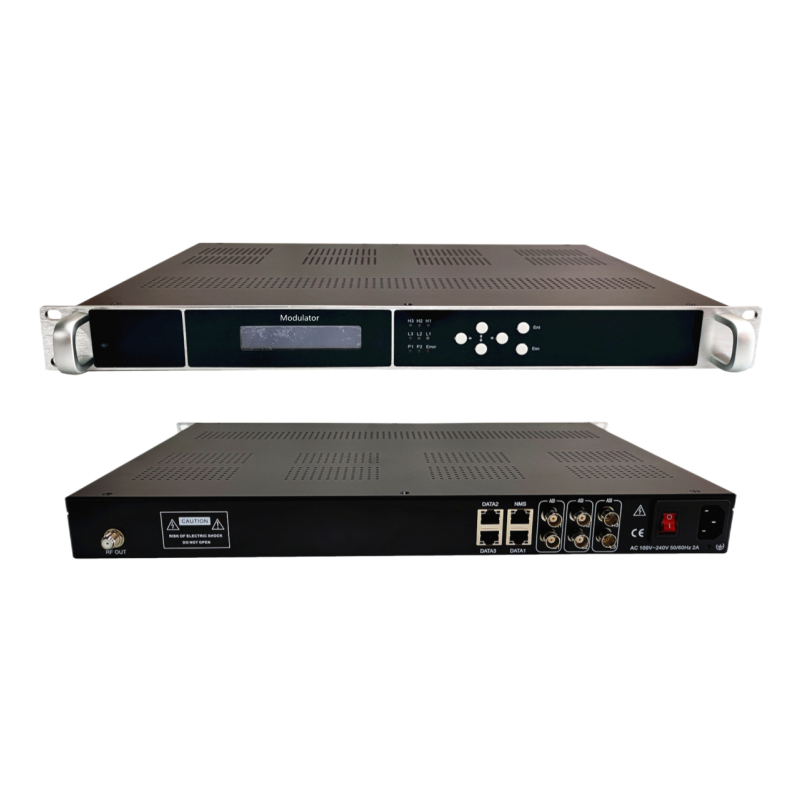

HPM316 IP To 16 Carriers ATSC Modulator
Product Overview
HPM316 is a cost-effective ATSC modulator developed according to ATSC (ATSC A/53) standard. It has 128*3 IP inputs. After multiplexing and modulating process, it gives 16 ATSC non-adjacent carriers (50MHz~900MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system.
Key Features
• Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol
• Support 8 MPTS Output
• Support 8 or 16 non-adjacent carriers ATSC modulating
• Support 6 Serials ASI input (Any Multiplexing)
• RF output : 50~900MHz , Any Settings
• Integrated multiplexing and modulating functions
• Web-based NMS management
Specifications
Modulation | Standard | ATSC A/53 |
Bandwidth | 6M | |
Constellation | 8VSB | |
FEC | RS(208 188)+Trellis | |
MER | ≥40db | |
RF frequency | 50~900MHz, 1KHz step | |
RF output level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping | |
RF Output | 8 or 16 non-adjacent carriers ATSC output | |
Multiplex | Max PIDs | 256 per channel |
Functions | PID remapping (auto/manually optional) | |
PCR accurate adjusting | ||
PSI/SI table automatically generating | ||
IP Input | 3*128 IP(SPTS/MPTS) input over UDP and RTP, RJ45,1000M/100M, Unicast/Multicast | |
ASI input | 6 ASI input, DVB standard, BNC connector | |
System | LCD/Keyboard operating and web-based NMS support | |
Ethernet software upgrading | ||
General | Dimension (W*D*H) |
482mm×340mm×45mm |
Temperature | 0~45℃(work);-20~80℃(storage) | |
Power supply | AC 110V±10%,50/60Hz AC 220V±10%,50/60Hz |
